4.3 Inch Nextion Intelligent HMI Display 480x272 Touch Display Module 300 cd/m2
4.3 Inch Nextion Intelligent HMI Display 480x272 Touch Display Module 300 cd/m2
4.3 Inch Nextion Intelligent HMI Display 480x272 Touch Display Module 300 cd/m2
4.3 Inch Nextion Intelligent HMI Display 480x272 Touch Display Module 300 cd/m2
4.3 Inch Nextion Intelligent HMI Display 480x272 Touch Display Module 300 cd/m2
4.3 Inch Nextion Intelligent HMI Display 480x272 Touch Display Module 300 cd/m2
Specifications
Brand Name :
AISON
Model Number :
NX4827P043-011C
Certification :
ISO9001 / ISO14000/ROHS
Place of Origin :
Guangdong,China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
200k/month
Delivery Time :
7 working days
Packaging Details :
Blister Package/Carton
Name :
4.3 inch Nextion Intelligent HMI Display
Dot Matrix :
480x272
Outline dimension :
120mm(L)X74mm(W)X6.6mm(H)
Display Color :
65536
Interface :
HMI
Brightness :
300cd/m2
Display Type :
Normally White
Operating temperatures :
-20 to 70 degree
Storage temperatures :
-30 to 80 degree
Touch Screen :
CTP
Flash :
128MB
RAM :
512 KB
MCU :
200 MHZ
GPIOS :
8
RTC :
Yes
Description

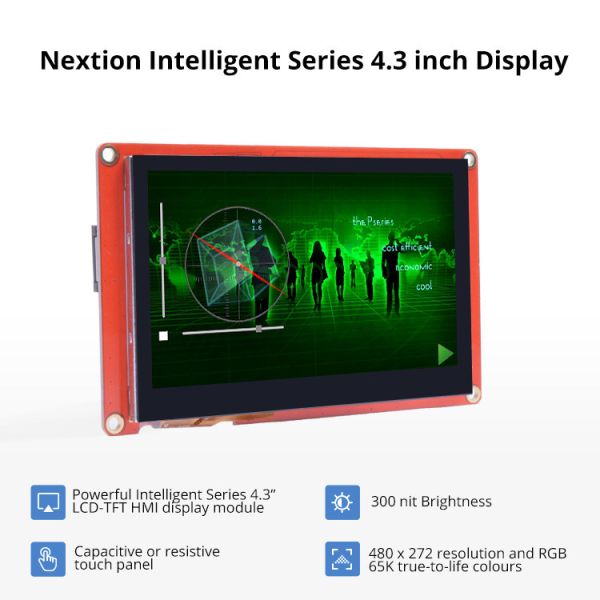

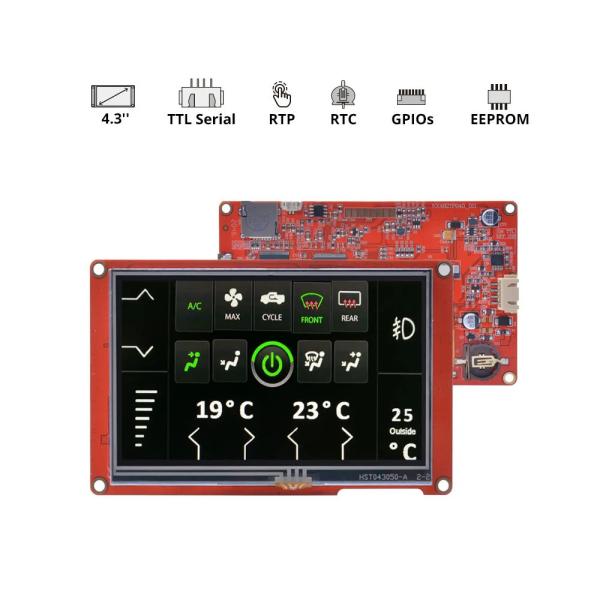

4.3 inch Nextion Intelligent Series HMI TFT Touch Display Module NX4827P043-011C

Product Description:

Introducing our high-performance 4.3" LCD-TFT Human Machine Interface (HMI) Display Module, designed for seamless integration into a wide range of applications. This compact and feature-rich module combines advanced display technology with powerful processing capabilities to deliver an exceptional user experience.

Display Features:

  • 4.3-inch LCD-TFT display with a high-resolution 480 x 272 pixel format
  • Vivid RGB 65K true-to-life colors for stunning visual output
  • Choice of capacitive or resistive touch panel for versatile interaction
  • Brightness: 300 nits, ensuring clear visibility in various lighting conditions

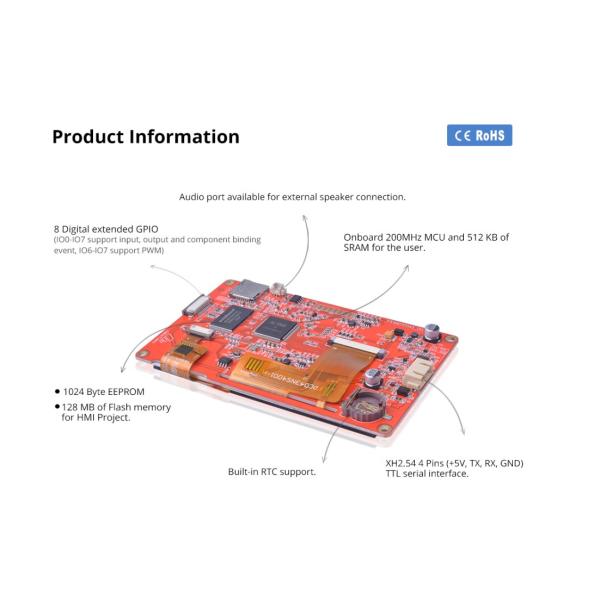

Processing Power:

  • Built-in 200MHz MCU for smooth and responsive operation
  • Memory: 512 KB SRAM, 128 MB Flash, and 1024 Byte EEPROM for ample storage and data retention

Connectivity & Expandability:

  • XH2.54 4-pin TTL serial interface (+5V, TX, RX, GND) for easy connectivity
  • 1.25T-2-2A audio port for external speaker integration
  • 8 digital extended GPIO pins (IO0-IO7) with support for input, output, and event binding; IO6-IO7 additionally support PWM functionality

Additional Features:

  • Built-in RTC (Real-Time Clock) for accurate timekeeping
  • Compact and lightweight design, ideal for space-constrained applications

This module is perfect for industrial, automotive, and consumer electronics applications where a reliable, user-friendly interface is essential.

Package includes:
1 X 4.3" Nextion Intelligent HMI Display (NX4827P043-011C)
1 X Micro USB to 2P Connector Board
1 X 4-Pin Grove Cable

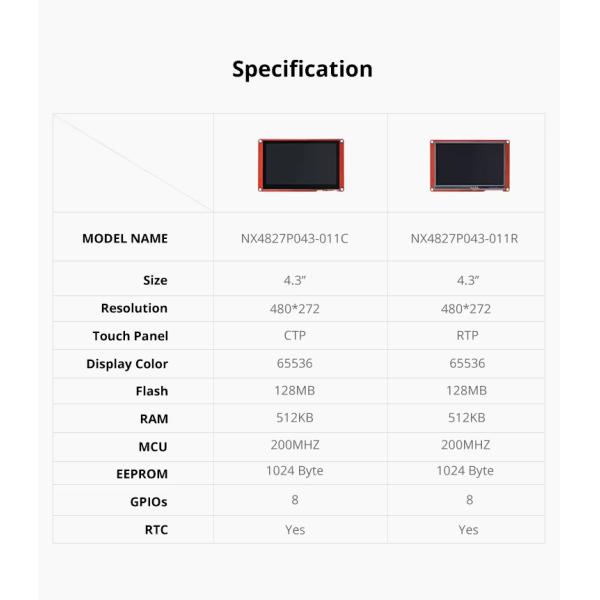

Specification:

4.3 Inch Nextion Intelligent HMI Display 480x272 Touch Display Module 300 cd/m2

Product Details:

4.3 Inch Nextion Intelligent HMI Display 480x272 Touch Display Module 300 cd/m24.3 Inch Nextion Intelligent HMI Display 480x272 Touch Display Module 300 cd/m24.3 Inch Nextion Intelligent HMI Display 480x272 Touch Display Module 300 cd/m24.3 Inch Nextion Intelligent HMI Display 480x272 Touch Display Module 300 cd/m24.3 Inch Nextion Intelligent HMI Display 480x272 Touch Display Module 300 cd/m2
