5 Inch 720x1280 HD Portrait IPS TFT LCD Display MIPI Interface
5 Inch 720x1280 HD Portrait IPS TFT LCD Display MIPI Interface
5 Inch 720x1280 HD Portrait IPS TFT LCD Display MIPI Interface
5 Inch 720x1280 HD Portrait IPS TFT LCD Display MIPI Interface
5 Inch 720x1280 HD Portrait IPS TFT LCD Display MIPI Interface
5 Inch 720x1280 HD Portrait IPS TFT LCD Display MIPI Interface
5 Inch 720x1280 HD Portrait IPS TFT LCD Display MIPI Interface
5 Inch 720x1280 HD Portrait IPS TFT LCD Display MIPI Interface
5 Inch 720x1280 HD Portrait IPS TFT LCD Display MIPI Interface
5 Inch 720x1280 HD Portrait IPS TFT LCD Display MIPI Interface
Specifications
Brand Name :
AISON
Model Number :
ZHD50004C30
Certification :
ISO9001 / ISO14000/ROHS
Place of Origin :
Guangdong,China
MOQ :
1
Price :
10~20usd/pc
Payment Terms :
T/T, Western Union, MoneyGram,Paypal
Supply Ability :
200k/month
Delivery Time :
7 working days
Packaging Details :
Blister Package/Carton
LCM Name :
5 Inch 720x1280 Portrait Display
Number of Dots :
720x1280
LCM outline size :
64.6 x117.43 x1.56mm
Active area :
61.78 (H) x 109.82 (V)mm
Interface :
MIPI
Brightness :
450cd/m2
Display mode :
TFT, Normally Black, Transmissive
Viewing Direction :
ALL/IPS
Operating temperatures :
-20 to 70 ℃
Storage temperatures :
-30 to 80 ℃
Driver IC :
ILI9881C
Description

5 Inch 720x1280 Portrait IPS TFT LCD Display MIPI Interface

Display General Description
  • Diagonal Dimension : 5.0 inch
  • Resolution : 720x1280 pixel
  • View Direction : All
  • Module Dimension : 64.6 x117.43 x1.56mm
  • Viewing Area : 61.78 (H) x 109.82 (V)mm
  • Supply Voltage : 3.3 V
  • Interface : MIPI
  • Luminance : 450 cd/m2
  • Drive IC : ILI9881C
  • Operation Temperature : -20℃~30℃
  • Storage Temperature : -30℃~80℃
The 5.0-inch IPS LCD display provides a resolution of 720×1280 pixels and is equipped with an ILI9881C driver IC that supports MIPI interface.

The 5.0-inch 720×1280 display is designed to withstand a wide range of environmental conditions and operates flawlessly in a wide temperature range from -20°C to 70°C. It also has a storage temperature range of -30°C to 80°C, ensuring durability and reliability in different environments. Our products are RoHS (Restriction of Hazardous Substances) compliant, demonstrating our commitment to environmental sustainability and safety.

General Data

Model Name 5 Inch HD TFT LCD Display
Resolution 720X1280
Model Size (W*H*T)
64.6 x117.43 x1.56mm
Display Area (W*H)
61.78 (H) x 109.82 (V)mm
Interface MIPI
Display Mode Normally Black,Transmissive
Viewing Angels 80/80/80/80
Brightness 450 cd/m2
Pin number 30
Contrast Ratio
 1000:1
BACKLIGHT TYPE 12 WHITE LED
Operating temperatures -20 to 70 ℃
Storage temperatures -30 to 80 ℃

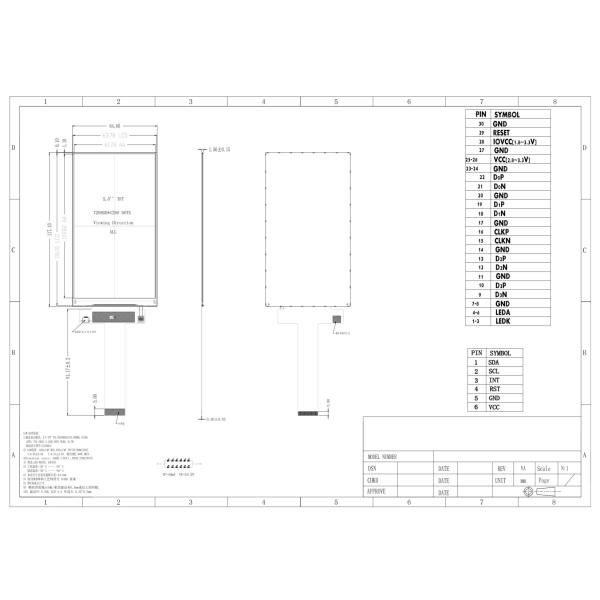

Drawing
5 Inch 720x1280 HD Portrait IPS TFT LCD Display MIPI Interface

Product Details

5 Inch 720x1280 HD Portrait IPS TFT LCD Display MIPI Interface5 Inch 720x1280 HD Portrait IPS TFT LCD Display MIPI Interface

TFT Applications

The 5 inch IPS LVDSTFT Displays are widely used for Industrial, Smart home,Medical, Automotive ,Intelligent and other applications.
