Specifications
Brand Name :
AISON
Model Number :
Z0299WV01
Certification :
ISO9001 / ISO14000/ROHS
Place of Origin :
Guangdong,China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram,Paypal
Supply Ability :
100k/month
Delivery Time :
7 working days
Packaging Details :
Blister Package/Carton
Name :
2.99 inch Stretch Bar Display
Resolution :
268x800
Outline dimension :
26.96*80.08*1.72mm
Active area :
24.12*72mm
Interface :
RGB 18bit+SPI3W
Viewing angle :
85/85/85/85
Brightness :
800 cd/m2
Viewing Direction :
ALL/IPS
Operating temperatures :
-20 to 70 degree
Storage temperatures :
-30 to 80 degree
Description

2.99 3 Inch 268x800 Stretched Bar LCD Display TFT LCD Module Drive IC ST7701S

General Description

Z0299WV01is a transmissive type color active matrix TFT (Thin Film Transistor) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of a TFT-LCD module (TFT-LCD panel, driver IC and FPC), a back-light unit and. The resolution of 2.99" contains 268 RGB X800 pixels and can display up to 16.7m colors.

Reliability and Durability:
Our BAR LCD Display undergoes rigorous environmental and reliability testing, including high and low-temperature operations, thermal shock, and electrostatic discharge tests, ensuring long-lasting performance.

Mechanical Drawings and Packaging:
Detailed mechanical drawings are provided for precise installation, and our packaging methods are designed to protect the module during transit.

Usage Precautions:
- Handle with care to avoid mechanical shock and damage.
- Store in conditions avoiding direct sunlight and harmful gases.
- Ensure proper grounding to prevent static damage during handling and assembly.

General Data

Model Name 2.99 inch Bar Type LCD Display
Resolution 268x800
Model Size (W*H*T)mm 26.96*80.08*1.72mm
Display Area (W*H)mm 24.12*72mm
Interface RGB 18bit+SPI3W
Display Mode Normally Black,Transmissive
Viewing IPS
Brightness 800 cd/m2
Pin number 40 pin
Contrast Ratio
 1200:1
Operating temperatures -20 to 70 degree
Storage temperatures -30 to 80 degree

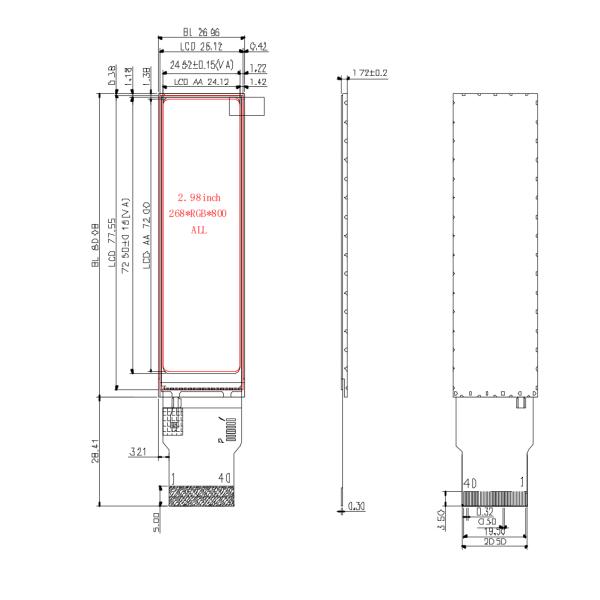

Drawing

2.99 3 Inch 268x800 Stretched Bar LCD Display TFT LCD Module Drive IC ST7701S

Product Details

2.99 3 Inch 268x800 Stretched Bar LCD Display TFT LCD Module Drive IC ST7701S2.99 3 Inch 268x800 Stretched Bar LCD Display TFT LCD Module Drive IC ST7701S

TFT Applications:

This bar type lcd module operates in temperatures ranging from -20℃ to +70℃, and can be stored in temperatures from -30℃ to +80℃. With the demand for custom projects going up every day, the bar type TFT market is growing correspondingly. And our bar type TFT solution can be perfectly used in many applications like industrial, automotive, medical, home appliance and maritime, etc. This bar type TFT module is ideal for use in electronic door locks, massage chair control panels, and other devices that require a stretched display screen.
