Specifications
Brand Name :
AISON
Model Number :
HD276003C30
Certification :
ISO9001 / ISO14000/ROHS
Place of Origin :
Guangdong,China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram,Paypal
Supply Ability :
200k/month
Delivery Time :
7 working days
Packaging Details :
Blister Package
Name :
2.8 inch Circular Touch TFT Display
Resolution :
480x480
Active area :
70.13(H) x70.13 (V)mm
Interface :
MIPI
Driver IC :
ST7701S
Brightness :
300 cd/m2
Display mode :
TFT, Normally Black, Transmissive
Operating temperatures :
-20 to 70 degree
Storage temperatures :
-30 to 80 degree
Touch :
PCAP
Description

2.8 Inch 480X480 Round TFT Display With MIPI Interface 30 PIns ST7701S Driver IC

Main Features

2.8" Diagonal | 480x480 Pixels
Standard brightness 300 cd/m²
Full viewing angles (IPS)
30-pin MIPI interface
Built-in ST7701S driver IC

General Description
  • High Resolution Display: This 2.8 inch round tft display boasts a high-resolution 480x480 display, ensuring crisp and clear visuals for any application.
  • Compact Design: With a size of 2.76 inches, this LCD module is perfect for compact devices and applications where space is limited, as requested by a customer looking for a small display solution.
  • Wide Viewing Angle: The display offers a wide viewing angle, allowing users to view the screen from any direction without compromising image quality.
  • Durable and Versatile: With operating and storage temperatures ranging from -20 to 70°C and -30 to 80°C respectively, this LCD module can withstand various environmental conditions, making it suitable for various applications.
  • Customizable: As an OEM supplier, we can provide customized solutions for customers, tailoring the display to meet specific requirements and needs, as requested by a customer seeking a bespoke display solution.

General Data
Model Name 2.8 inch circular lcd module
Resolution 480X480
Model Size (W*H*T)
73.03x76.48x2.3 mm
Display Area (W*H) 70.13x70.13 mm
Interface MIPI
Display Mode Normally Black,Transmissive
Viewing Angle 85/85/85/85
Brightness 300 cd/m2
LCD Pin number 40 pin
Driver IC
 ST7701S
Operating temperatures -20 to 70 ℃
Storage temperatures -30 to 80 ℃

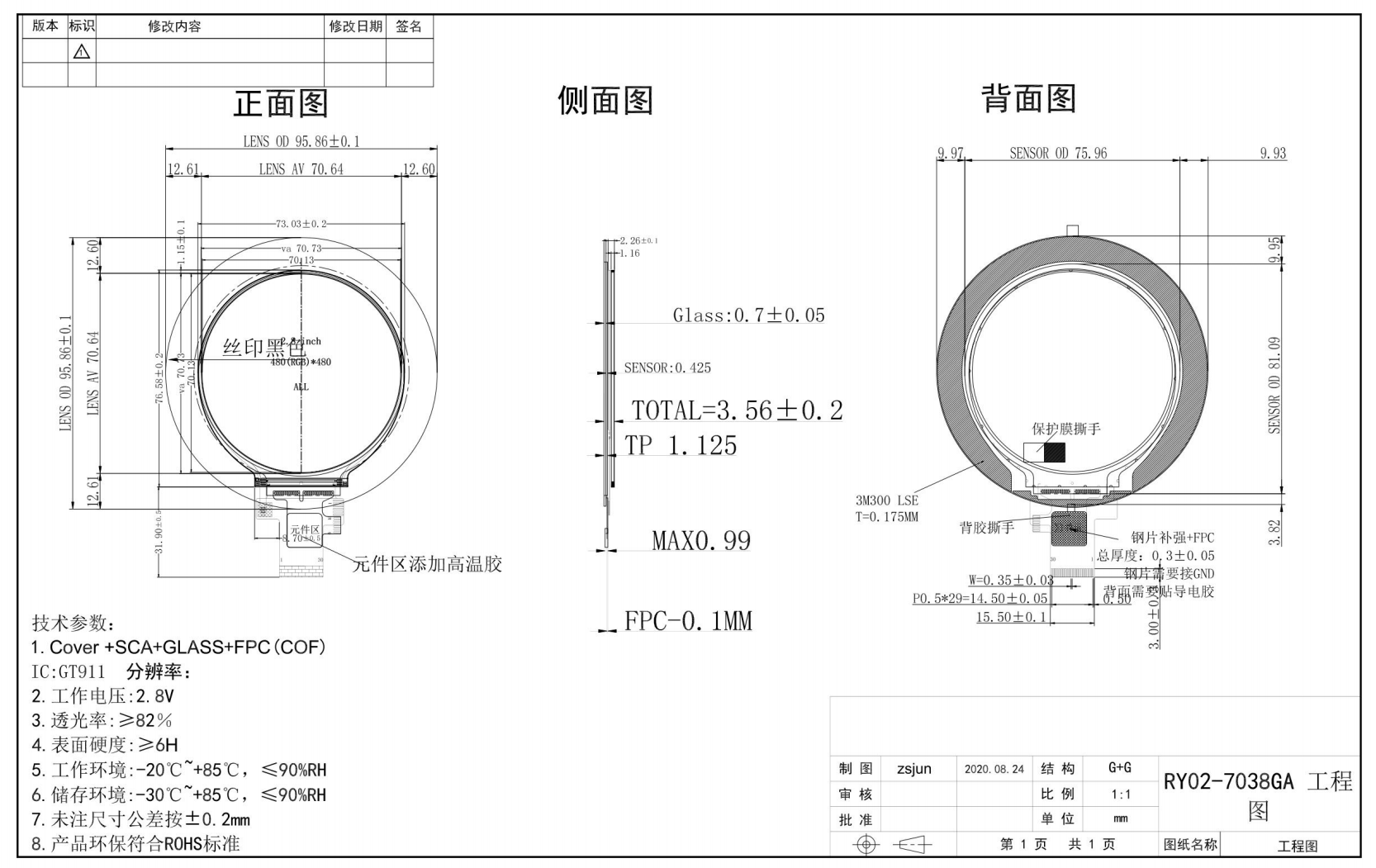

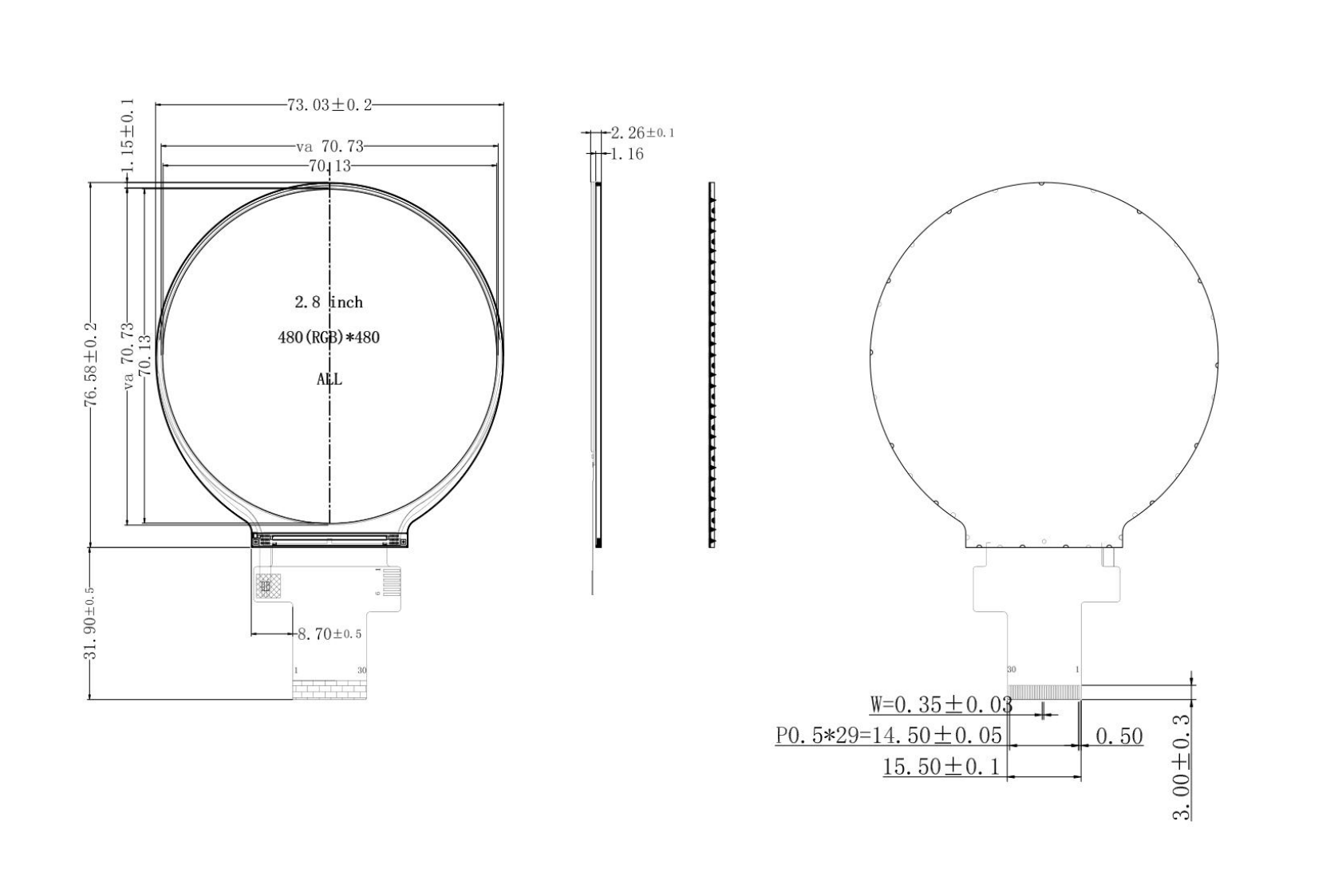

Drawing
2.8 Inch 480X480 Round TFT Display With MIPI Interface 30 PIns ST7701S Driver IC2.8 Inch 480X480 Round TFT Display With MIPI Interface 30 PIns ST7701S Driver IC

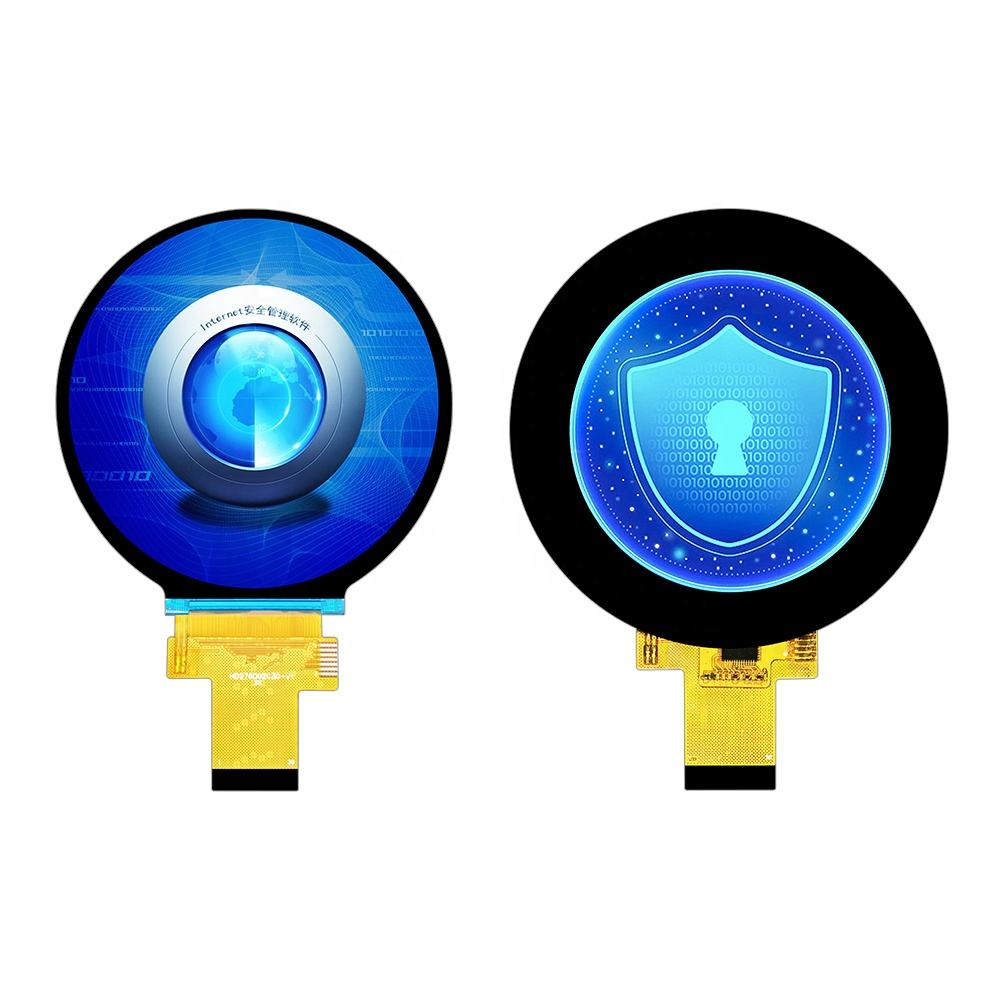

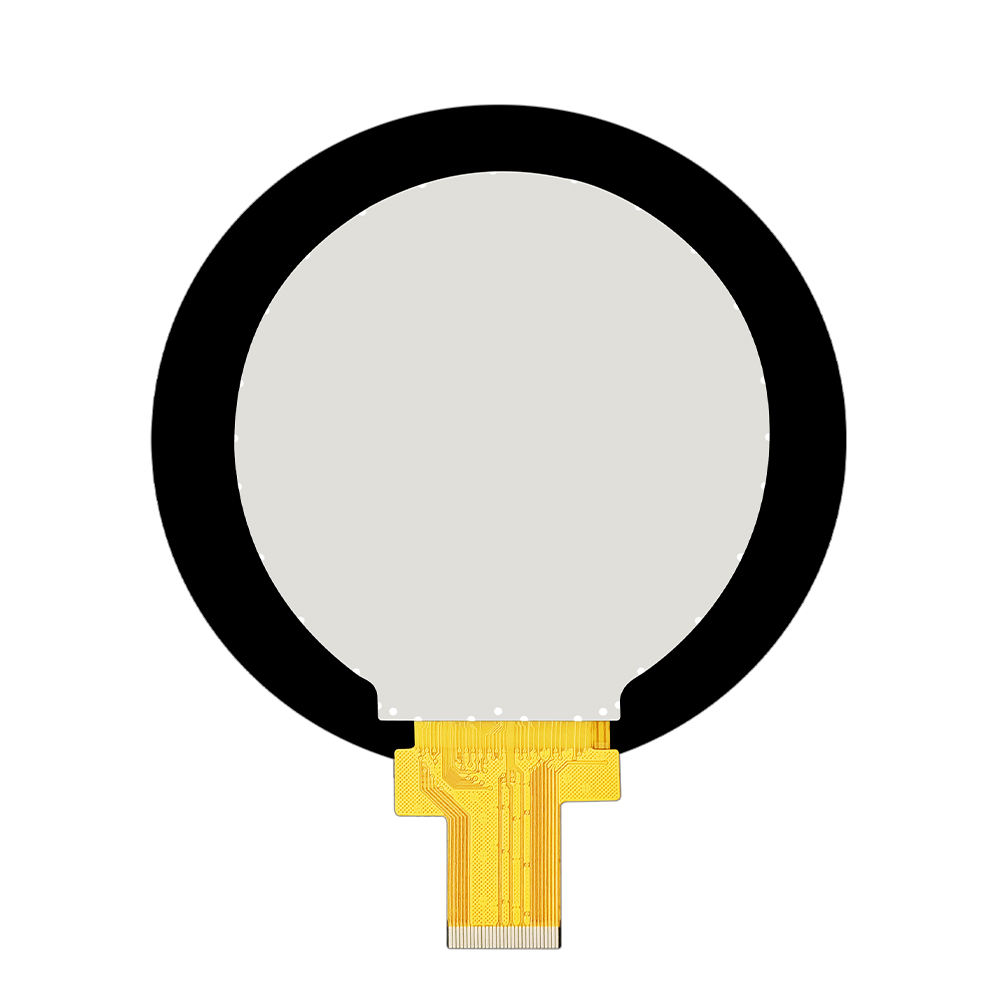

Product Details
2.8 Inch 480X480 Round TFT Display With MIPI Interface 30 PIns ST7701S Driver IC2.8 Inch 480X480 Round TFT Display With MIPI Interface 30 PIns ST7701S Driver IC2.8 Inch 480X480 Round TFT Display With MIPI Interface 30 PIns ST7701S Driver IC
TFT Applications

2.8 inch Round TFT Display
Ideal for smart home panels, wearables, meters, and round UI devices.
