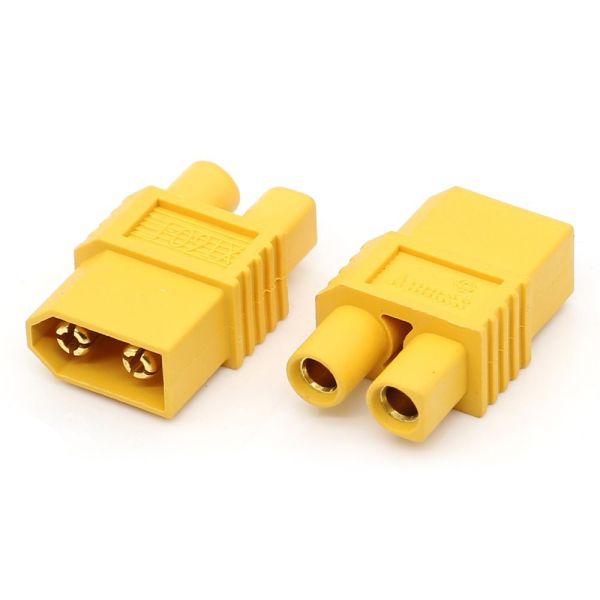

10AWG Drone Connector XT60 Series Model Plug With 35A Rated And 2-3 PIN Configuration

The XT60 Series Model Plug Connectors are high-reliability, gold-plated power connectors engineered for safe, high-current DC connections in lithium battery systems and portable power devices. Available in 2PIN, 3PIN, and mixed configurations with multiple color options (yellow, black, red, blue), the series features UL94 V-0 flame-retardant PA housing, low-resistance copper alloy contacts, and robust 100-cycle mating durability. Rated up to 40A (35A MAX typical) and 600V DC, the XT60 series is the industry-standard connector for RC models, drones, e-bikes, controllers, chargers, and motors.

Keywords:

#XT60 connector

#XT60 plug

#35A connector

#XT60E connector

#XT60 35A gold plated 2PIN connector for lithium batteries

#XT60E 600V DC 35A panel mount power connector

#XT60 series 100 cycle mating RC battery plug yellow black

#UL94 V-0 XT60 3PIN connector for drone motor controller

#XT60 40A low resistance connector for chargers and electric scooters

#RC connector

#Lithium battery connector

#Drone connector

#Model aircraft connector

#E-bike connector

#Power connector

#ESC connector

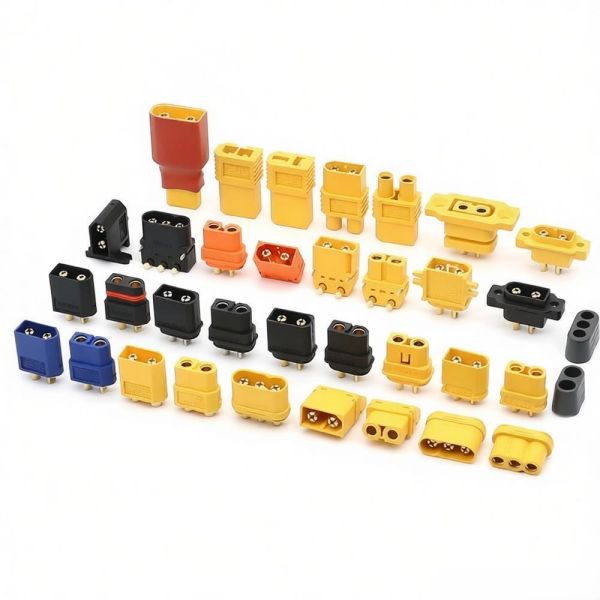

XT60 Series Model Plug Connectors

Highlighting Benefits

1. High current capacity up to 40A (35A MAX) with excellent heat dissipation
2. Ultra-low contact resistance (≤0.8–1.0mΩ) and gold-plated contacts for superior conductivity and anti-corrosion performance
3. High withstand voltage (500–600V DC) and insulation resistance ≥2000MΩ for safe power transmission
4. 100 mating cycles with secure push-fit design for repeated use
5. UL94 V-0 flame-retardant PA housing in multiple colors for easy polarity identification
6. Wide operating temperature range (-20°C to 120°C) and IP40 protection
7. 180° wire soldering + panel-mount compatible design for fast installation
8. Compact, lightweight, and cost-effective – the global standard for RC, drone, and lithium battery power connections

How to Install such XT60 Series Model Connector?

180° wire soldering (welding) type. The connector is injection-molded and pre-assembled for direct soldering to wires (recommended 10AWG for 35A). Suitable for panel or surface mounting. The male and female halves mate with a secure push-fit connection. Color coding and polarity keys prevent reverse connection. No special tools required beyond standard soldering equipment and heat shrink tubing.

Scenario Applications

• Lithium battery packs for RC cars, planes, helicopters, and drones
• Electronic Speed Controllers (ESC) and motor connections
• Battery chargers and balance chargers
• Electric bicycles, scooters, and skateboards
• Robots, industrial automation, and power tools
• Solar power systems and portable energy stations
• Model aircraft, FPV racing, and hobby electronics
• Any medium-power DC connection requiring reliable, repeated mating and polarity safety
