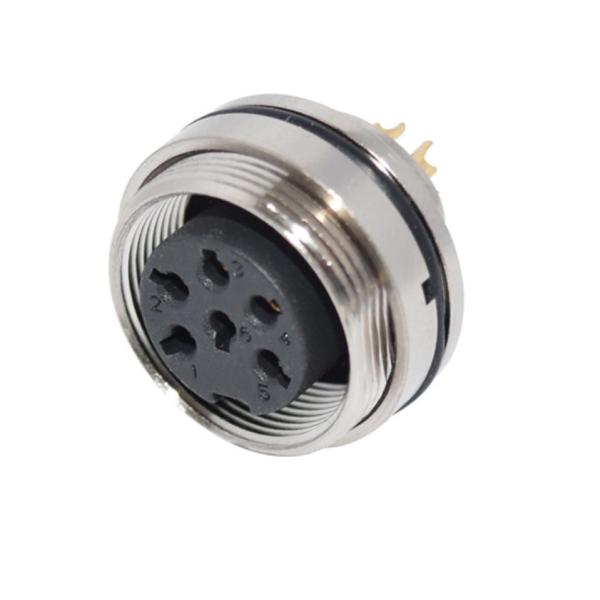

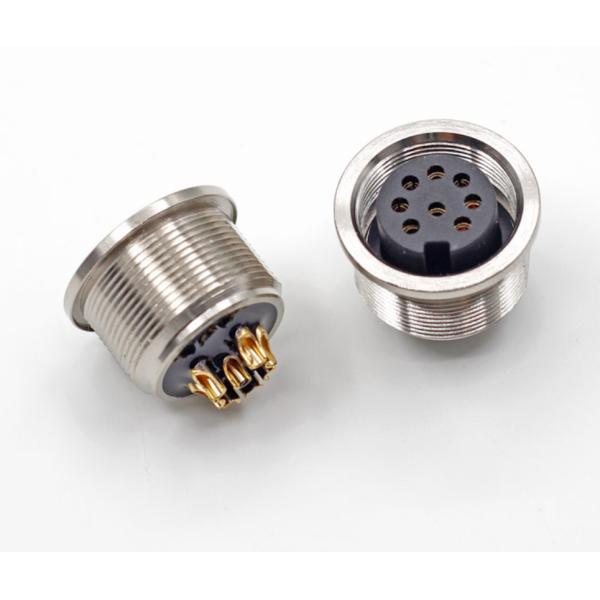

M12 M16 solder type 5 pin 8 pin waterproof Antenna Male Female PCB panel mount AISG connector
M12 M16 solder type 5 pin 8 pin waterproof Antenna Male Female PCB panel mount AISG connector
M12 M16 solder type 5 pin 8 pin waterproof Antenna Male Female PCB panel mount AISG connector
M12 M16 solder type 5 pin 8 pin waterproof Antenna Male Female PCB panel mount AISG connector
M12 M16 solder type 5 pin 8 pin waterproof Antenna Male Female PCB panel mount AISG connector
M12 M16 solder type 5 pin 8 pin waterproof Antenna Male Female PCB panel mount AISG connector
M12 M16 solder type 5 pin 8 pin waterproof Antenna Male Female PCB panel mount AISG connector
M12 M16 solder type 5 pin 8 pin waterproof Antenna Male Female PCB panel mount AISG connector
M12 M16 solder type 5 pin 8 pin waterproof Antenna Male Female PCB panel mount AISG connector
M12 M16 solder type 5 pin 8 pin waterproof Antenna Male Female PCB panel mount AISG connector
Specifications
Brand Name :
RiTian
Model Number :
M16 M12 connector
Certification :
CE RoHS
Place of Origin :
China
MOQ :
100
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
2000 each week
Delivery Time :
5 to 8 working days
Packaging Details :
Standard Exported Cartons and Pallets
Model :
M16 connector
application :
Automotive / Automation / Industry / Camera / LED etc
termination :
solder
Gender :
Male/ Female
PIn :
2 3 4 5 5A 6 7 8 12 14 16 19 24 Pin
Orientation :
straight / right angle
mounting type :
PCB Mount / Panel Mount / Cable
rated current :
7A for 2/3 pin, 6A for 4/5 pin, 3A for 12/14/19 pin, 1A for 24 pins
Description
M12 M16 solder type 5 pin 8 pin waterproof Antenna Male Female PCB panel mount AISG connector
The Antenna Interface Standards Group (AISG) creates and maintains standards for the control and monitoring interface between a base station and a variety of tower-top equipment. These include antennas with remote electrical tilt (RET), tower mounted amplifiers and a variety of sensors that are used to monitor the operation of tower-top equipment. These are referred to as subunits. A complete list of those currently supported can be found here.

Product Fetures

1.Extremely strong resistant to acid,alkali,chemical cleaning agent /reagent properties;

2.Resistant to welding spark,continually twist ;

3.Resistant to oil,coolant ,lubricant and emulsion;

4.Pin configurations:2,3,4,5,7,8,12,14,19,24 properties ;

5.Shield and un-shield Version Available with metal or plastic housing;

6.Meet IP67/IP68 waterproof requirements;

7.Temperature Range:-25℃ ~ +85℃;

Item Name
M16 Socket Connector
Number of contacts
2; 3; 4; 5; 6; 7; 8; 12
Connector locking system
Screw
Termination
Solder
Wire guage
Max. 0.75mm²(Max.AWG20); Max. 0.25mm²(Max.AWG24)
Cable outlet
4-6 mm; 6-8 mm; 8-10 mm
Degree go protection
IP67
Mechanical operation
>500 mating cycles
Temperature range
(-30°-95°)
Rated voltage
250V; 125V; 60V
Rated im pulse voltage
1500V; 800V; 500V
Pollution degree
1
Overvoltage categorie
I
Material group
Ⅲ
Rated current(40°)
7A; 6A; 5A; 3A
Contact resistance
<=3mΩ (Gold)
Material of contact
Brass
Contact plating
Gold
Material of contact body
PA
Material of housing
CuZn

M12 M16 solder type 5 pin 8 pin waterproof Antenna Male Female PCB panel mount AISG connectorM12 M16 solder type 5 pin 8 pin waterproof Antenna Male Female PCB panel mount AISG connectorM12 M16 solder type 5 pin 8 pin waterproof Antenna Male Female PCB panel mount AISG connector
