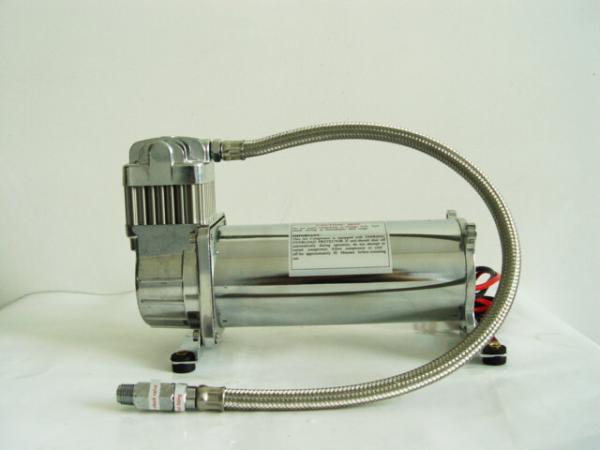

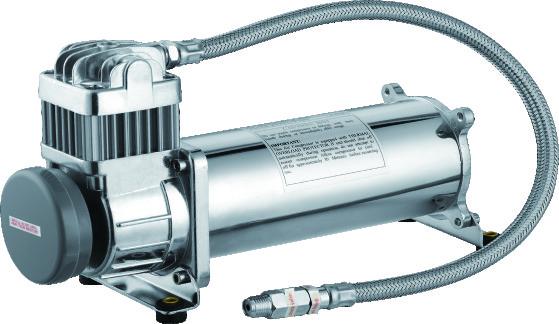

Yurui 6455BR 150psi 2 Gallon Air Compressor For Air Ride Suspension
Yurui 6455BR 150psi 2 Gallon Air Compressor For Air Ride Suspension
Yurui 6455BR 150psi 2 Gallon Air Compressor For Air Ride Suspension
Yurui 6455BR 150psi 2 Gallon Air Compressor For Air Ride Suspension
Yurui 6455BR 150psi 2 Gallon Air Compressor For Air Ride Suspension
Yurui 6455BR 150psi 2 Gallon Air Compressor For Air Ride Suspension
Specifications
Brand Name :
N / M
Model Number :
YF6455AR
Certification :
CE&ROHS
Place of Origin :
CHINA
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T, L/C
Supply Ability :
4000pcs 30 days
Delivery Time :
One month after receiving 30% deposit
Packaging Details :
First wrapped with high-quality carrying bag, then with color box, finally Strong Carton
Brand :
OEM
Origin :
China
Material :
Chrome
Voltage :
12V
Guarantee :
1 year warranty
Color :
Silver
Power :
Heavy Duty
Moisture Resistant :
IP67
Condition :
Brand new
Description

Yurui 6455AR Silver 200psi Load Support Air Ride Suspension Compressor 12V

► Description

YF6455AR is an installation type air suspension pump, which specifically applies to the professional equipment where needs fast-speed and extensive air, such as tire inflation, agriculture seeder, armaria, extracting oil and even in aircraft manufacturing corporation. Always integrated into on-board air system.

Commonly used must with air tanks in car tuning like off-road cars.The compressor is consist with an on-off pressure button. It automatically turns on and off when the pressure reaches the certain level. The part, air filter can be used in a remote situation when the environment changes.

► Used with

• Air tanks in different sizes

• Pneumatic system

• Air horns

► Our Advantages

1 . One year warranty

2 . Competitive price than other manufactures

3 . Portable to carry with

4 . Fast inflation and low noise

5 . Can be pumped more than 20 , 000 times

6 . Anti-dust and explosion-proof

7 . Water resistant : IP 67, working in the water for 2 hours

► SPECIFICATION

1.75CFM 200PSI

• 12 Volt

• Duty Cycle: 100% @ 100 PSI

• Duty Cycle: 50% @ 200 PSI

• Max. Working Pressure: 200 PSI

• 12V Max. Amp Draw: 23 Amps

• 1/4"NPT Inlet port

• Net Weight: 10.5lbs

11"Lx4"Wx6.5"H

►PERFORMANCE DATA

PSI 0 40 90 150 200
AMPS 11 17 21 22 19
CFM 1.8 1.34 1.05 0.74 0.56
LPM 51 38 30 21 16
BAR 0 3 6 10 14

► RECOMMENDED TANKYurui 6455BR 150psi 2 Gallon Air Compressor For Air Ride Suspension

TANK FILL DATA

2.5 Gallon Tank

0 to 200 psi 4 min 58 sec

150 to 200 psi 1 min 50 sec

♦DUTY CYCLE REFERENCE CHART

Duty Cycle: 100PSI @ 72◦F Max. Run Time / Min. Rest Time

Duty cycle refers to the amount of time compressor can be operated in a given time period at 100PSI and a standard ambient temperature of 72◦F. Duty cycle is commonly expressed in percentage format as: Compressor on time / (on time + off time)= Duty Cycle%
9% Duty Cycle 3 Min. On / 30 Min. Off
10% Duty Cycle 3 Min. On / 30 Min. Off
15% Duty Cycle 6 Min. On / 30 Min. Off
20% Duty Cycle 8 Min. On / 30 Min. Off
25% Duty Cycle 10 Min. On / 30 Min. Off
30% Duty Cycle 13 Min. On / 30 Min. Off
33% Duty Cycle 15 Min. On / 30 Min. Off
40% Duty Cycle 20 Min. On / 30 Min. Off
100% Duty Cycle Continous Duty @ 100PSI @ 72◦F

Yurui 6455BR 150psi 2 Gallon Air Compressor For Air Ride Suspension
