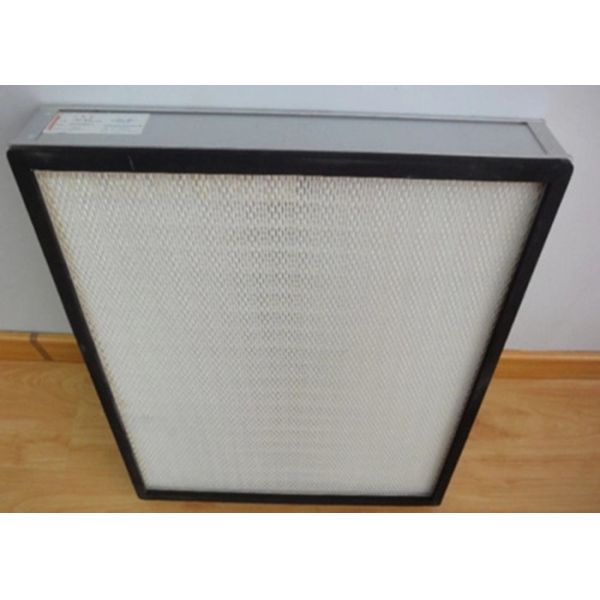

24x24 Inch Mini Pleat HEPA Air Filter with Aluminum Frame and H12-H14 Efficiency for Air Purification
24x24 Inch Mini Pleat HEPA Air Filter with Aluminum Frame and H12-H14 Efficiency for Air Purification
24x24 Inch Mini Pleat HEPA Air Filter with Aluminum Frame and H12-H14 Efficiency for Air Purification
24x24 Inch Mini Pleat HEPA Air Filter with Aluminum Frame and H12-H14 Efficiency for Air Purification
Specifications
Brand Name :
KEL
Model Number :
KEL-HF
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 set
Price :
negotiation
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
300 set/ month
Delivery Time :
8-15 working day
Packaging Details :
plywood packing
Type :
mini pleated air filter
efficiency :
H12- H14
Frame :
Alluminum profile/ sus frame/ powder coated frame
warranty :
1 year
original :
China
Description
24x24 Inch Mini Pleat HEPA Air Filter Air Purification System Aluminum Frame
Product Overview

24x24 Inch Mini Pleat HEPA Air Filter/Air Purification System Filter with Aluminum Frame designed for superior air purification performance in demanding environments.

Key Features
  • Homogeneous filter media velocity coupled with low pressure drop
  • Large surface area and high dust holding capacity
  • Cost-efficient and dependable operation
  • Light weight and easy to install
  • Each filter element is tested for leakproofing before market release
Applications
  • Highly sensitive industrial processes (pharmaceutical, biotechnology, chemicals, food and beverages, optics, micro-electronics, etc.)
  • Sophisticated air-conditioning systems (theaters/intensive care units in hospitals and medical institutes, sterile rooms, labs, research centers, etc.)
Technical Specifications

Standards: H11/H13/H14/U15/U16 EN1822

Efficiency: DOP 99%@0.3micron, 99.99%@0.3micron, 99.999%@0.3micron, 99.9997%@0.12micron, 99.99997@0.12micron

Recommended Final Pressure Drop: 2-3 times initial pressure drop

DIN 53438 Flammability: F1

UL 900 Standard: Class 2

Thermal Stability: 70°C

Moisture Resistance: 100% RH

Model Width (mm) Height (mm) Depth (mm) Aeration Capacity (m³/h) Efficiency (Sodium Flame) Frame Material
KEL 915 610 96 1900/220 99.99 Aluminium
KEL 915 610 80 1450/220 99.99
KEL 305 305 80 300/220 99.99
KEL 915 610 69 1500/220 99.99
KEL 610 610 69 1000/220 99.99
KEL 305 305 69 250/220 99.99
KEL 915 610 50 1100/220 99.99
KEL 610 610 50 700/220 99.99
KEL 305 305 50 180/220 99.99
KEL 915 610 47 1000/220 99.99
KEL 610 610 47 635/220 99.99
KEL 305 305 47 160/220 99.99
24x24 Inch Mini Pleat HEPA Air Filter with Aluminum Frame and H12-H14 Efficiency for Air Purification
