CE Certificate Color Steel Sandwich Panel Clean Booth for Food Factory Softwall Clean Room
CE Certificate Color Steel Sandwich Panel Clean Booth for Food Factory Softwall Clean Room
CE Certificate Color Steel Sandwich Panel Clean Booth for Food Factory Softwall Clean Room
CE Certificate Color Steel Sandwich Panel Clean Booth for Food Factory Softwall Clean Room
Specifications
Internal Work Zone :
2000×3000×2200, 3000×4000×1900, 6000×8000×2200
External Dimension :
2100×3100×2590, 3100×4100×2590, 6100×8100×2590
Brand Name :
K-LING
Model Number :
KEL-LFB5000
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
500 sets per month
Delivery Time :
7-15 working days
Packaging Details :
Plywood packing
Power Supply :
220V/50Hz
Clean Class Level :
1000Class(ISO6), 100Class(ISO5), 10000Class(ISO7)
Air Velocity :
0.3-0.5m/s
Noise :
≤65dB
Description
CE Certificate Color Steel Sandwich Panel Clean Booth For Food Factory
Product Overview

Clean Booth is a simple clean room solution designed for rapid and convenient installation. Available in various clean grades and space configurations, it can be custom-designed according to specific application requirements. Key features include easy operation and installation, flexibility, short construction periods, and excellent mobility. The system can also be integrated into existing clean rooms to create localized high-grade clean spaces, providing cost-effective solutions.

Clean rooms have become essential facilities in semiconductor, biochemical, pharmaceutical, and food industries, with increasingly stringent requirements for clean grades and corresponding manufacturing standards.

Key Features
  • Class 100-100,000 clean environment capability
  • Constructed with color steel sandwich panels
  • Economical and flexible design - easily relocated or expanded as needed
  • Optimized clean work zone environment for superior product protection
  • Custom-designed to meet specific requirements
  • Available with required instrumentation
  • Aluminum profile corner connections for smooth surfaces without dead ends
  • Customizable sizes according to customer requirements
Technical Specifications
Model KEL-LFB2000 KEL-LFB3000 KEL-LFB6000
External Dimension (W×L×H) 2100×3100×2590 3100×4100×2590 6100×8100×2590
Internal Work Zone (W×L×H) 2000×3000×2200 3000×4000×1900 6000×8000×2200
Clean Class Level 1000Class (ISO6) 100Class (ISO5) 10000Class (ISO7)
Air Velocity 0.3-0.5m/s 0.3-0.5m/s 0.3-0.5m/s
Noise ≤65dB ≤65dB ≤65dB
Vibration Half Peak ≤5um ≤5um ≤5um
Light 40W×2 40W×2 40W×2
Power Supply 220V/50Hz 220V/50Hz 220V/50Hz
Material Framework: Epoxy powder coated steel/Stainless steel/Aluminum
Wall: Anti-static strip curtain/Soft air curtain/Plexiglas/Sandwich panel

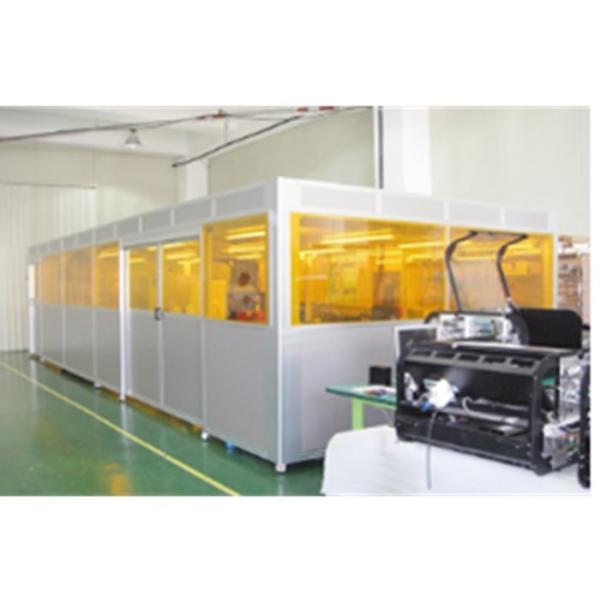

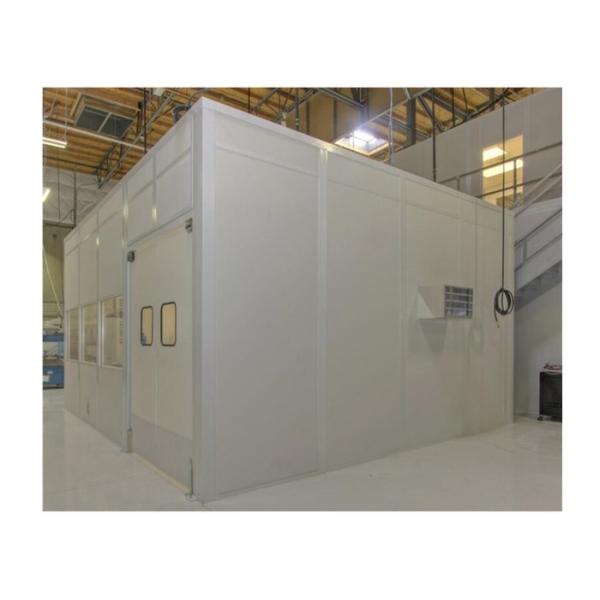

Clean Booth Display
