Double Swing Door Air Shower Room For Chemical Plants 1 Year Warranty
Double Swing Door Air Shower Room For Chemical Plants 1 Year Warranty
Double Swing Door Air Shower Room For Chemical Plants 1 Year Warranty
Double Swing Door Air Shower Room For Chemical Plants 1 Year Warranty
Specifications
Brand Name :
K-LING
Model Number :
KEL-AS
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
500 sets per month
Delivery Time :
7-15 working days
Packaging Details :
Polywood packing
Blowing :
Automatic Induction Blowing
Door :
Double swing door
Application :
GMP standard factory
Material :
SUS 304
Efficiency :
99.99%@0.3 um
Warranty :
1 Year
Description

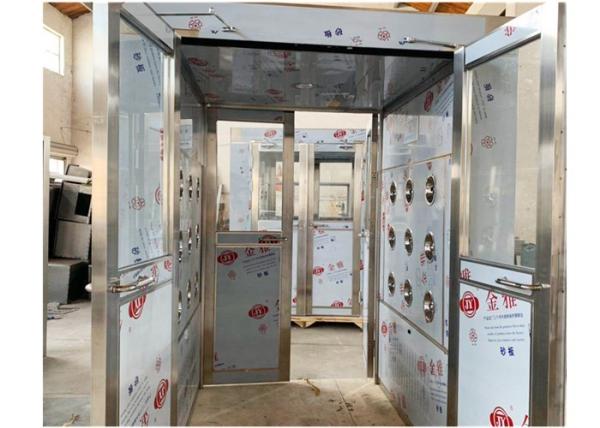

Double Swing Door Air Shower Tunnel SUS 304 Material For GMP Standard Factory

Introduction

The air shower room is used between the clean area and the non-clean area as a passage for goods or personnel to enter and exit the clean room. When people or goods pass through the air shower room, the automatic air shower system will be started automatically, and the wind speed can reach 25m / s. Therefore, it can effectively remove the dust attached to the human body and goods. Control the particles in the clean room within a certain range

Double swing door air shower tunnel designed double door, has a lot of space to enter goods or people. The whole material is made of stainless steel 304, which has strong corrosion resistance and wear resistance. Ideal for use in chemical or pharmaceutical plants. Fine workmanship, meet GMP requirements.

Detail

Double Swing Door Air Shower Room For Chemical Plants 1 Year Warranty

Double Swing Door Air Shower Room For Chemical Plants 1 Year Warranty

Double Swing Door Air Shower Room For Chemical Plants 1 Year Warranty

Parameter:

Dimension W×D×H (mm)

1500×1000×2100

Dimension of air shower area W×D×H (mm)

1000×920×1950

Nozzle air speed(m/s)

18-25m/s

Nozzle Number

18

Air shower time (s)

Leaving-factory initial setting is 10s, 10-99s (adjustable)

Blowing leaching way

The wind rain area left and right sides of the rain

Carton material

Stainless steel

Inner carton material

Stainless steel

Material of door

Stainless steel semi-glass door with view window (Single door)

Chassis Material

Stainless steel plate

Door interlocking mode

When air shower works, locks of the two doors are closed. In
usual time, electronic interlocking of the two doors is available.
Open one door, the other door will be locked automatically

The surface color

Cold rolled steel plate, surface electrostatic processing, in
matte white/Stainless steel

HEPA Filter Size and No.

610*610*120*2

Filter

Efficient filter (Power ≥99.99%@ 0.3um)Preliminary filter,

Power consumption (w)

550W*2

Lighting (W)

7W*1

Power Supply

380V 50HZ

Number of people

1-2

Net weight(kg)

280

Package:

Double Swing Door Air Shower Room For Chemical Plants 1 Year Warranty
