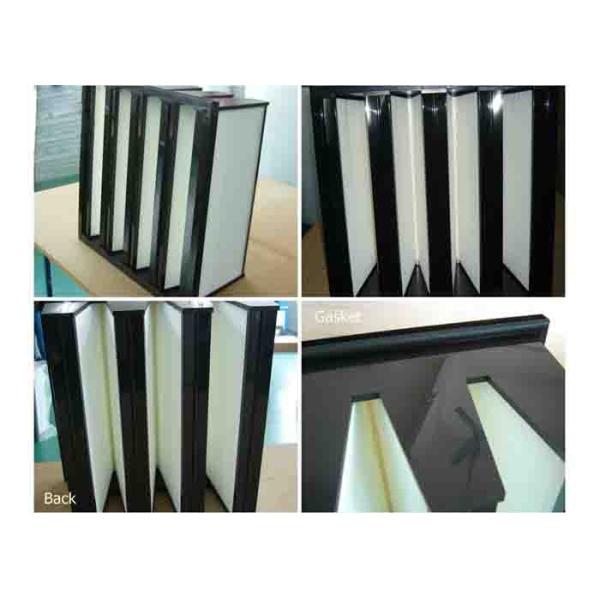

Plastic Frame Dust Holding V Bank Air Filters With Fiberglass Medium Material
Plastic Frame Dust Holding V Bank Air Filters With Fiberglass Medium Material
Plastic Frame Dust Holding V Bank Air Filters With Fiberglass Medium Material
Plastic Frame Dust Holding V Bank Air Filters With Fiberglass Medium Material
Specifications
Brand Name :
KEL
Model Number :
KEL-AF
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 set
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
300 set/ month
Delivery Time :
8-15 working day
Packaging Details :
plywood packing
Frame :
plastic frame
material :
fiberglass medium material
name :
v bank filter
application :
clean room air filter
original :
China
warranty :
1 year
Description

Plastic Frame Dust Holding V Bank Air Filters With Fiberglass Medium Material

Applications:


V-type air filter uses thick mini-pleat filter elements in V patterns to increase the filtration area in an effective way, featuring high air volume, low resistance and long service life, which is mainly used in HVAC systems in the clean room. The filters of this type include different efficiencies ranging from medium efficiency (F6-F9), sub-high efficiency (H10-H12) to high efficiency (H13-H14) for options. W-type filters include box type and W type, with the frames made of plastics, galvanized sheets, aluminum plates, stainless steel plates and plastics sprayed steel plates etc.

Advantages:

Large filter surface with compact construction
Low installation depth
High dust holding capacity
High air flow capacity with low pressure drop
High economic efficiency
Reduced energy operating costs
Without pollutant emission fully incinerable
High bursting pressure, dust migration impossible
Can be installed horizontaliy as weli as verticaily


Material and operating conditions:

External frame Aluminum Alloy/GI/Stainless steel
Sealant Polyurethane
Separator Clapboard or aluminum foil
Filter media Fiberglass /HV fiberglass / PP
Maximum operating temperature 80°C
Maximum operating humidity 100%
HEPA filter Efficiency ≥99.99%

Size and Specification:

Model Dimensions(mm)
WxHxD		 Rated air
flow (m³/h)		 Initial
resistance
(Pa)		 Efficiency
(EN1822)		 Frame Media
KEL-VBF-1 592x592x292 3300 ≤120
(Media: PP))
≤220
(Media:fiber
glass)		 F7-H13 Plastic/
galvanized
sheet		 PP or
Fiberglass
KEL-VBF-2 592x292x292 1600
KEL-VBF-3 592x490x292 3000
KEL-VBF-4 592x287x292 1600
KEL-VBF-5 287x287x292 800
KEL-VBF-6 610x610x292 3600
KEL-VBF-7 610x305x292 1800

Detail

Plastic Frame Dust Holding V Bank Air Filters With Fiberglass Medium Material
