CE Clean Sampling Room Ceiling System For Pharmaceutical Vertical Laminar Flow
CE Clean Sampling Room Ceiling System For Pharmaceutical Vertical Laminar Flow
CE Clean Sampling Room Ceiling System For Pharmaceutical Vertical Laminar Flow
CE Clean Sampling Room Ceiling System For Pharmaceutical Vertical Laminar Flow
Specifications
Brand Name :
KEL
Model Number :
KEL-DB
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 set
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
300 set/ month
Delivery Time :
8-15 working day
Packaging Details :
plywood packing
name :
clean sampling room
size :
customized
material :
sus 304
factory :
pharmaceutical
air flow :
vertical laminar flow
original :
China
Description

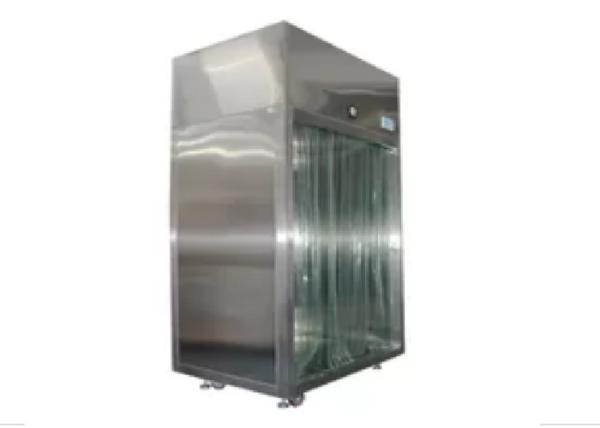

Clean Sampling Room Ceiling System For Pharmaceutical Vertical Laminar Flow

Description:

clean sampling room is a kind of partial purifying equipment for filling, refilling, weighing and sampling of raw material and compounds. It is provided with HEPA filter, which prevents the airborne dusts by down draught technique. The unit eliminates powder contamination to protect the operator and the surrounding environment.

1), wind speed: 0.2 ~ 0.5m / s (** wind speed 0.3m / s)

2). Noise: ≤62dB(A)

3), power supply: AC220V, 650HZ

4). Vibration Half-peak value: ≤5um

5), the maximum power consumption: ≤ 0.8KW

6), weight: 50-150kg

Characteristics:

1).Automatic changeable frequency system monitors the air velocity to ensure its stability in the work area.
2).Differential pressure gauge is equipped to real-time monitor the filters.
3).Unique designed air duct effectively controls the noise.
4).Uniform flow design of main working area can protects the operators and prevent environmental pollution and cross contamination of products.
5).Intelligent control mode and alarm system ensure the reliability of running.
6).Smooth transitions of wall and ground can eliminate the blind angle.
7).Customized design is welcome.

Parameter

Model
KEL-DB-1000
KEL-DB-1200
KEL-DB-1400

Clean Level
ISO 5 (Class 100), Class A

HEPA Filters
99.999% efficiency at 0.3 um

Air volume
Supply air volume: ≤7500m3/h,
Exhaust air volume: ≤2250m3/h; Adjustable

Exhaust air volume: ≤2250m3/h; Adjustable

Material
Fully stainless steel 1.2mm

Air Velocity
0.35~0.65m/s, adjustable

Noise
≤75db

Illumination
≥800lux

UV Lamp
Emission of 253.7nm

Power Supply
110/220V±10%, 50/60Hz

Consumption
1100W
1100W
0.55KW*2

Weight
400Kg
450KG
500KG

Work Area Size (W*D*H)
900*900*2000
1100*900*2000
1300*1000*2000

Overall size
W D H
1000*1350*2400
1200*1350*2400
1400*1400*2400

CE Clean Sampling Room Ceiling System For Pharmaceutical Vertical Laminar Flow

CE Clean Sampling Room Ceiling System For Pharmaceutical Vertical Laminar Flow
