Fire Proof Pharmaceutical Negative Pressure Weight Room GMP Dispensing Booth
Fire Proof Pharmaceutical Negative Pressure Weight Room GMP Dispensing Booth
Fire Proof Pharmaceutical Negative Pressure Weight Room GMP Dispensing Booth
Fire Proof Pharmaceutical Negative Pressure Weight Room GMP Dispensing Booth
Specifications
Brand Name :
KEL
Model Number :
KEL-DB
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 set
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
300 set/ month
Delivery Time :
8-15 working day
Packaging Details :
plywood packing
Name :
dispensing booth
type :
negative pressure weighting booth
function :
fire-proof
application :
pharmaceutical factory
certification :
CE
original :
China
Description

Fire-proof Pharmaceutical Negative Pressure Weight Room GMP Dispensing Booth

Introduction

Dispensing booth is a kind of partial purifying equipment for filling, refilling, weighing and sampling of raw material and compounds. It is provided with HEPA filter, which prevents the airborne dusts by down draught technique. The unit eliminates powder contamination to protect the operator and the surrounding environment.
Dispensing booth is also called sampling booth or weighing booth.

Standard Model Technology Parameter:


1. Smooth transitions of wall and ground can eliminate the blind angle.

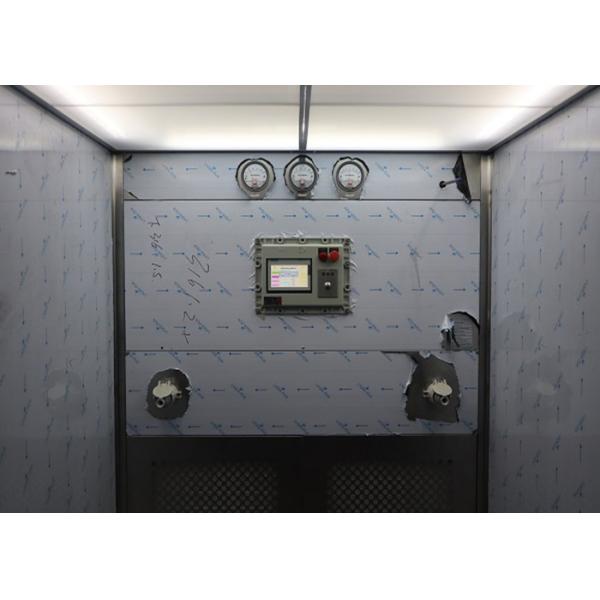

2. Differential pressure gauge is equipped to real-time monitor the filters.

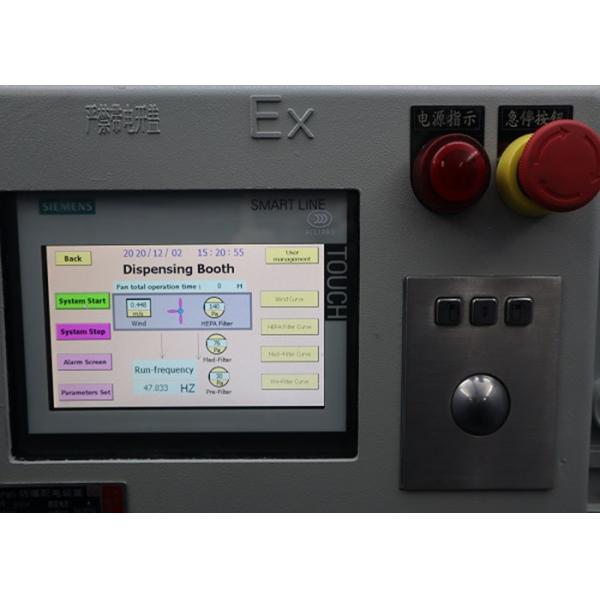

3. Intelligent control mode and alarm system ensure the reliability of running.
4. Automatic changeable frequency system monitors the air velocity to ensure its stability in the work area.
5. Uniform flow design of main working area can protects the operators and prevent environmental pollution and cross contamination of products.

Detail

Fire Proof Pharmaceutical Negative Pressure Weight Room GMP Dispensing Booth

Fire Proof Pharmaceutical Negative Pressure Weight Room GMP Dispensing Booth

Parameter

MODEL KEL-DB1000 KEL-DB1500 KEL-DB1900

External size (mm)

(W*D*H)

 1200x1500x2400mm 1500x1700x2400mm 2000×2200×2650mm

Work zone (mm)

(W*D*H)

 1100x1200x2000mm 1400x1200x2000mm 1900×1900×2150mm
Purification rank Class 100(ISO5)
Air speed 0.2-0.7m/s

Material

(Option)

1: Entirety Stainless Steel 201/304/316.(T=1.2/1.5mm)

2: External and internal side is steel with power coated. (T=1.2/1.5mm)
Intensity of illumination ≥300 Lux
Noise level(dB) <65dB
Filter step 3 Step
HEPA filter 99.995% @ 0.3um Gel sealant mini--pleats HEPA Air Filter
Secondary filter F8 pocket air filter
Pre-filter Efficiency 75%@5um
Power supply 380V/50HZ OR 220V/50HZ
Packing material Standard Export Poly wood Packing(Fumigant free material)
