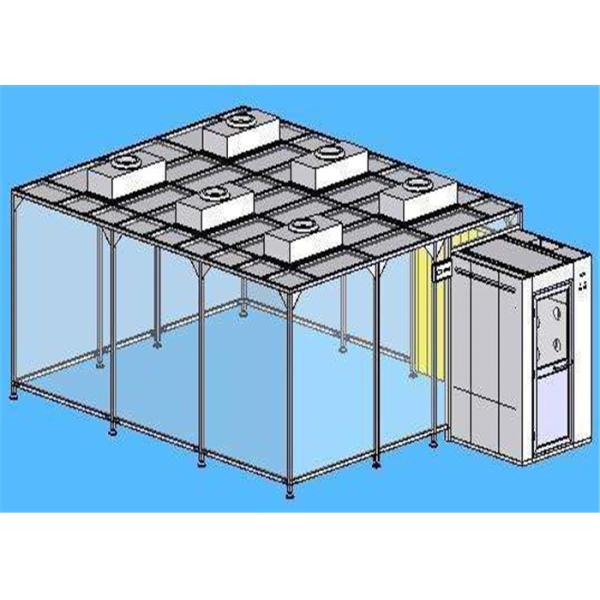

Class 100000 Dust Free Softwall Clean Room with FFU for Modular Cleanroom Solutions
Class 100000 Dust Free Softwall Clean Room with FFU for Modular Cleanroom Solutions
Class 100000 Dust Free Softwall Clean Room with FFU for Modular Cleanroom Solutions
Class 100000 Dust Free Softwall Clean Room with FFU for Modular Cleanroom Solutions
Specifications
Cleanness Class :
Class 100-100000
Frame Material :
SUS 304/ Aluminum profile
Brand Name :
K-LING
Model Number :
KEL-SCB series
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
500 sets per month
Delivery Time :
7-15 working days
Packaging Details :
Plywood packing
Power Source :
110V/60hz/av/dc, 220V/60HZ/AV/DC
Wall Material :
Anti-static soft PVC wall 106~109Ω
FFU Dimension :
2*2/2*4/4*4
HEPA Filter :
H14 Hepa filter
Description
Class 100000 Dust Free Softwall Clean Room With FFU
Customized Dust-Free Pharmaceutical Clean Room

Softwall clean rooms are specially designed environments that exclude airborne particles, bacteria, and other harmful pollutants while maintaining precise control over temperature, cleanliness, interior pressure, air velocity, air distribution, noise, vibration, lighting, and static control within specified requirements.

Key Features
  • Complete clean booth construction service compliant with GMP requirements
  • Fully customizable turnkey project solutions
  • Modular design for easy installation and maintenance
  • Compact structure with elegant appearance
  • Comprehensive one-step service and customization options
Technical Specifications
Parameter Softwall Clean Booth (PVC) Hardwall Clean Booth (Toughened glass, color steel panel)
Cleanliness From Class 100 to Class 100,000
External Dimension As per requirement
FFU Dimension 2×2 / 2×4 / 4×4
Cabinet Material Stainless Steel
Power Source 110V/60Hz/AV/DC, 220V/60Hz/AV/DC
HEPA Filter H14 HEPA filter
Frame Material Stainless Steel
Wall Material Anti-static soft PVC wall 10⁶~10⁹Ω Anti-static acrylic 10⁶~10⁹Ω
Lighting Available in LED and T5 lamps
Air Condition As per requirement Available in constant temperature air conditioner/constant temperature and humidity conditioner
Class Level Specifications
Class Level Model Inner Dimension W × D × H (mm) Number of FFU Air Volume (m³/h)
Class 100 KEL-SCB6 × 8 2000 × 3000 × 2200 6 6600
KEL-SCB 8 × 12 2440 × 3660 × 2200 12 13200
KEL-SCB8 × 16 2450 × 4880 × 2200 16 17600
KEL-SCB8 × 20 2440 × 6100 × 2200 20 22000
Class 1000 KEL-SCB6 × 8 2000 × 3000 × 2200 2 2200
KEL-SCB8 × 16 2440 × 4880 × 2200 4 4400
KEL-SCB12 × 16 3660 × 4880 × 2200 6 6600
KEL-SCB20 × 24 6100 × 7300 × 2200 12 13200
Class 10000 KEL-SCB6 × 8 2000 × 3000 × 2200 1 1100
KEL-SCB 8 × 16 2440 × 4880 × 2200 2 2200
KEL-SCB 12 × 16 3660 × 4880 × 2200 4 4400
KEL-SCB 20 × 24 6100 × 7300 × 2200 8 8800
Case Display
Class 100000 Dust Free Softwall Clean Room with FFU for Modular Cleanroom Solutions Class 100000 Dust Free Softwall Clean Room with FFU for Modular Cleanroom Solutions
