Class 10000 Modular Clean Room with SUS 304 Frame and 5mm Plexiglass Wall for Production
Class 10000 Modular Clean Room with SUS 304 Frame and 5mm Plexiglass Wall for Production
Class 10000 Modular Clean Room with SUS 304 Frame and 5mm Plexiglass Wall for Production
Class 10000 Modular Clean Room with SUS 304 Frame and 5mm Plexiglass Wall for Production
Specifications
Voltage :
120V/60HZ
Wall material :
Plexiglass, T:5mm
Size :
6000*9144*2350
ffu size :
1175*575*300mm
Dimensions :
6000*9144*2350
Wall thickness :
Plexiglass ,T:5mm
FFU quantity :
8PCS
Frame material :
SUS 304
Brand Name :
K-LING
Model Number :
KEL-SCR
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
500 sets per month
Delivery Time :
7-15 working days
Packaging Details :
Plywood packing
Purification class :
Class 10000
Frame :
Aluminum profile, size: 50*50mm
Description
Production Plexiglass Wall Softwall Clean Room
Production Softwall Clean Room/Modular Clean Room Plexiglass Wall
Project Overview
This clean room was custom-designed for an electronics manufacturer in West Columbia, USA. Our solution was tailored to their specific production environment requirements, resulting in improved product quality and enhanced operational efficiency through integrated air shower systems.
Technical Specifications
Parameter Specification
Size 6000 × 9144 × 2350 mm
Purification Class Class 10000
Frame Aluminum profile, 50 × 50 mm
FFU Quantity 8 sets
FFU Size 1175 × 575 × 300 mm
Wall Material Plexiglass, 5 mm thickness
Voltage 120V/60Hz
LED Lighting 36 units
Control Box 1 unit
Air Shower External: 1290 × 1000 × 2050 mm
Internal: 790 × 920 × 2050 mm
Air Shower Additional Features:
  • SUS304 stainless steel construction
  • 380V/50Hz power supply
  • 12 nozzles for comprehensive decontamination
  • English voice control panel
  • Emergency stop switch

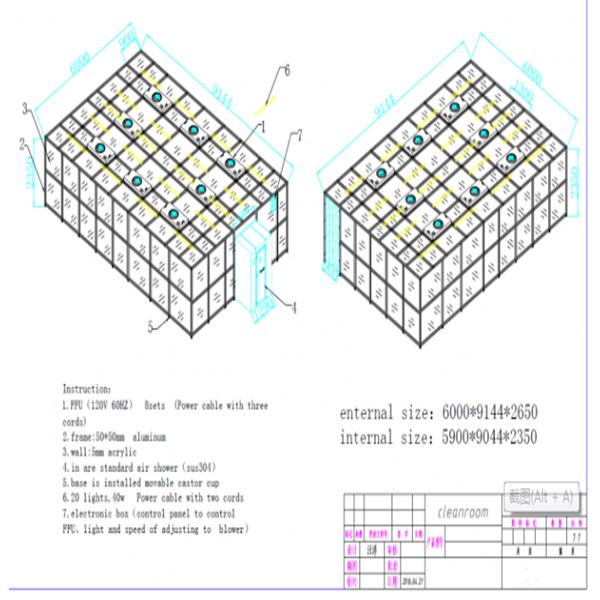

Design Drawing
Class 10000 Modular Clean Room with SUS 304 Frame and 5mm Plexiglass Wall for Production

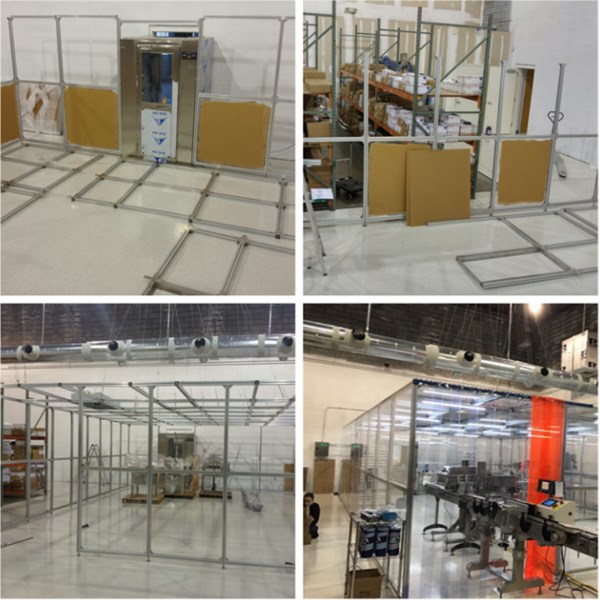

Assembly and Installation
We provide comprehensive installation support including detailed instructions, assembly videos, and reference photographs to ensure straightforward customer installation.
Class 10000 Modular Clean Room with SUS 304 Frame and 5mm Plexiglass Wall for Production
