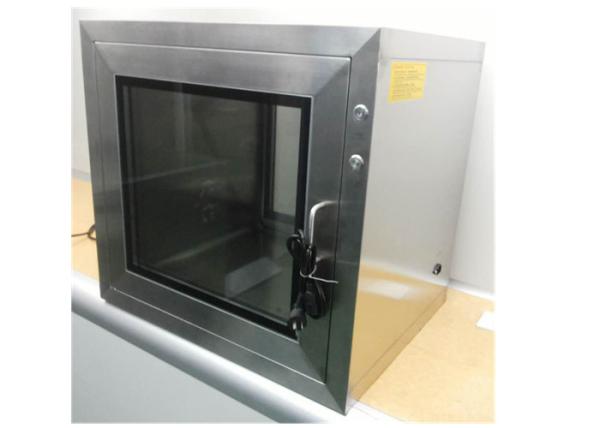

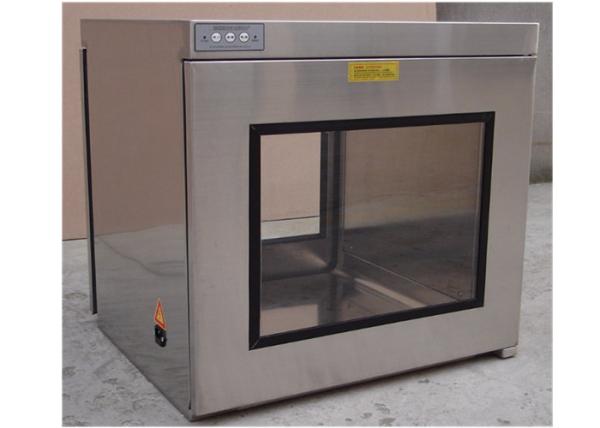

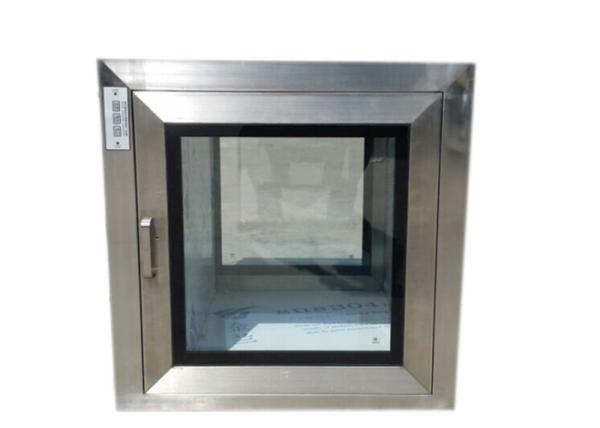

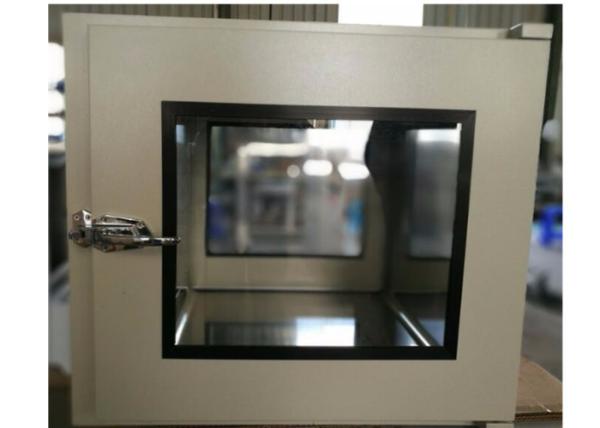

Stainless Steel Cold - Rolled Plate Pass Box Clean Room With 2 Years Warranty
Stainless Steel Cold - Rolled Plate Pass Box Clean Room With 2 Years Warranty
Stainless Steel Cold - Rolled Plate Pass Box Clean Room With 2 Years Warranty
Stainless Steel Cold - Rolled Plate Pass Box Clean Room With 2 Years Warranty
Stainless Steel Cold - Rolled Plate Pass Box Clean Room With 2 Years Warranty
Stainless Steel Cold - Rolled Plate Pass Box Clean Room With 2 Years Warranty
Stainless Steel Cold - Rolled Plate Pass Box Clean Room With 2 Years Warranty
Stainless Steel Cold - Rolled Plate Pass Box Clean Room With 2 Years Warranty
Specifications
Brand Name :
KELING
Model Number :
KEL-APB Series
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
300 sets per month
Delivery Time :
7-15 working days
Packaging Details :
Polywood packing
Name :
Static Cleanroom Pass Thru
Material :
Stainless Steel, Cold-rolled Plate
Features :
Static Cleanroom Pass Thru
Lock :
Electromagnetic Interlock
Size :
Customized Size
Filter :
Hepa Filter H13 / H14
Start Port :
Guangzhou, Shenzhen
Warranty :
2 years
Description

Pharmaceutical GMP Workshop Customized SUS201 Static Cleanroom Pass Thru

CUSTOMIZED DESIGN IS AVAILABLE

Specifications
Pass box as an auxiliary device of a clean room, mainly used to deliver small objects between clean area and clean area , unclean area and clean area . In order to reduce doors opening times of clean room, to mixmum reduce the pollution of the clean area.

Parameter:

Outer Size: 800W* 700D* 800H(mm)/ 1000W*900D* 1000H(mm)

Inner Size: 600W*600D* 600H(mm)/ 800W*800D* 800H(mm)

Features:

1.Cold steel material or SUS304

2.The internal circular plate chamfering processing, no dead angle

3.Embedded ultraviolet germicidal lamp on top

4.Two-door for large angle square window

5.Double hollow toughened glass observation window

6.Soft contact control switch, microcomputer program

7.Electronic interlocking system

8.With the power indicator light

Products Parameter:

MODEL KEL-APB500 KEL-APB600 KEL-APB700

External size (mm)

(W*D*H)

 850x500x1350mm 950x600x1450mm 1090x750x1600mm

Work zone (mm)

(W*D*H)

 500x500x500mm 600x600x600mm 750x750x750mm
Nozzle 4 PCS 4PCS 6 PCS
Air speed 18-25m/s

Material

(Option)

1: Entirety Sus304.(T=1.2/1.0mm)

2: Entirety sus201. (T=1.2/1.0mm)

3:External is steel with power coated, Internal is SUS304(T=1.2/1.0mm)

4: External is steel with power coated. Internal is SUS201(T=1.2/1.0mm)
Per-filter 525x275x17mm 560x275x17mm 560x275x17mm
G3
HEPA filter 484x484x69mm 630x630x69mm 630x630x69mm
99.99%@0.3um H13
Optional accessories 1: UV light. 2: Interphone 3:Differential pressure gauge 4: Roller
Power supply 0.75KW 380V/50HZ
packing size (mm) 1050x780x1600mm 1100x880x1700mm 1240x1030x1850mm
Packing material Standard Export Poly wood Packing(Fumigant free material)

Our Services
Factory testing (all the sets you ordered):
All of equipment is individually factory tested for safety and performance in accordance with international Standards.
Each unit is shipped with a documentation outlining the tests undertaken and the unit’s individual results for each unit.
Factory test include:
--appearance testing
--functional test and visual inspection
--electrical safety tests
--air velocity testing
--noise testing
