EVO Screw Air End Rotorcomp Air End With ROLLING PROFILE Technology
EVO Screw Air End Rotorcomp Air End With ROLLING PROFILE Technology
EVO Screw Air End Rotorcomp Air End With ROLLING PROFILE Technology
EVO Screw Air End Rotorcomp Air End With ROLLING PROFILE Technology
EVO Screw Air End Rotorcomp Air End With ROLLING PROFILE Technology
EVO Screw Air End Rotorcomp Air End With ROLLING PROFILE Technology
Specifications
Place of Origin :
made in China
Brand Name :
AIRERA
MOQ :
1 unit
Price :
2,200-20,000 USD
Packaging Details :
According to international standards
Delivery Time :
3-30 days
Payment Terms :
TT/LC
Supply Ability :
2,000-3,000 per month
Efficiency :
High volumetric and isentropic efficiency
Pressurerange :
Up to 200 bar
Operatingspeed :
Up to 12,000 RPM
Powerrange :
3.7 kW to 500 kW
Weight :
Varies by model, typically 200-1500 kg
Coolingmethod :
Oil-cooled
Design :
Modular design for easy maintenance
Material :
High-grade steel
Type :
Screw Compressor Air End
Application :
Industrial compressed air systems
Warranty :
1 year standard warranty
Displacement :
0.1 to 10 m³/min
Noiselevel :
Below 75 dB(A)
Productname :
Rotorcomp Air End
Lubrication :
Forced lubrication system
Description

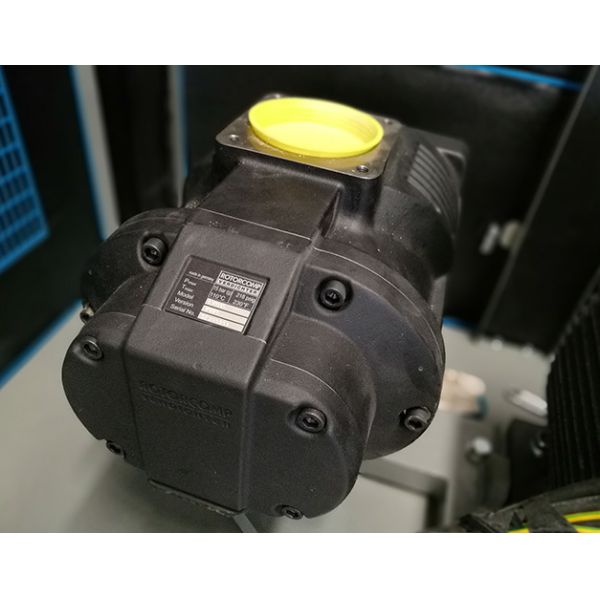

Rotorcomp EVO Air End
ROTORCOMP SCREW AIR END
RELIABLE AND VERSATILE
Rotorcomp oil-injected screw air ends create the heart of your compressor system. Used with our wide range of components, you can build the perfect compressor package with ultimate efficiency, low noise, and the highest quality standards.
EVO Screw Air End Rotorcomp Air End With ROLLING PROFILE Technology
ADVANTAGES OF OUR EVO® TECHNOLOGY
  • New ROLLING PROFILE® - ultimate efficiency with reduced noise
  • Long life cycle due to increased bearing dimensions and wear-free ROLLING PROFILE®
  • Wide operating pressure range from 5 to 15 barg
  • High quality manufacturing and assembling - "Made in Germany"
  • Quality assurance - bench test of every air end before leaving our factory
  • Easy application selection with our new ROTORCOMP® SIZING AIR software
  • Highest flexibility for your package design • Suitable for all types of drive motors • Drive options: Belt drive, direct drive, internal gear drive • Base and face-flange mounting
EVO Screw Air End Rotorcomp Air End With ROLLING PROFILE Technology

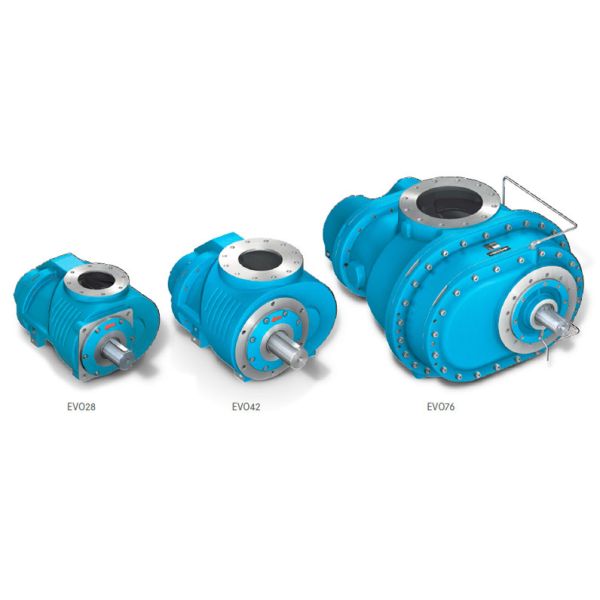

EVO® Range Specifications
Type Recommended motor power min. - max. Max. flow rate at 7 barg / 100 psig Pressure range min. - max. Net weight approx.
kW | hp m³/min | cfm barg | psig kg | lbs
EVO2 3 - 11 | 5 - 15 1.6 | 60 5 - 15 | 70 - 220 15 | 44
EVO3 5.5 - 18.5 | 10 - 25 2.8 | 100 5 - 15 | 70 - 220 21 | 46
EVO6 15 - 37 | 20 - 50 5.5 | 200 5 - 15 | 70 - 220 45 | 99
EVO9 22 - 55 | 30 - 75 8.4 | 300 5 - 15 | 70 - 220 68 | 150
EVO15 45 - 90 | 60 - 125 14.4 | 510 5 - 15 | 70 - 220 126 | 278
EVO28 75 - 160 | 100 - 200 26 | 920 5 - 15 | 70 - 220 269 | 593
EVO42 132 - 250 | 175 - 340 42 | 1485 5 - 15 | 70 - 220 474 | 1045
EVO76 160 - 540 | 214 - 725 76 | 2678 3.5 - 17 | 50 - 250 1250 | 2754
