MachineU > China Products > Machinery > Industrial Compressors & Parts > Industrial Compressors

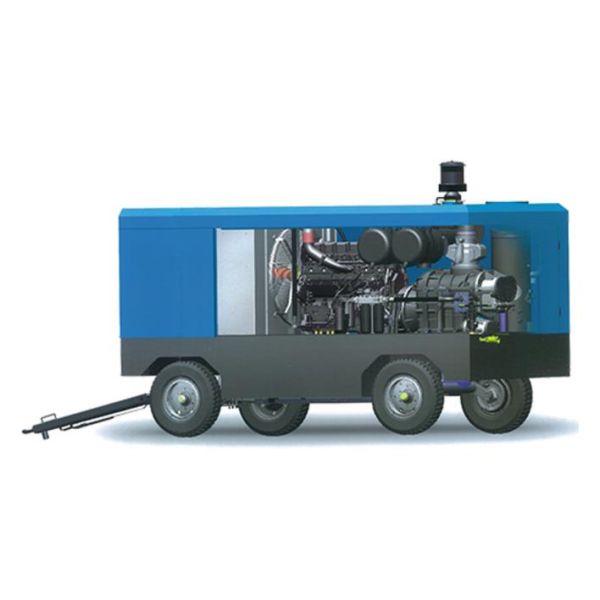

260hp-730hp Double Stage Diesel Compressor Mobile Diesel Compressor

Specifications

Place of Origin :

made in China

Brand Name :

AIRERA

MOQ :

1 unit

Price :

520-30,000 USD

Packaging Details :

According to international standards

Delivery Time :

3-30 days

Payment Terms :

TT/LC

Supply Ability :

2,000-3,000 per month

Condition :

Brand New Screw Air Compressor

Noise :

78-83dB

Cooling :

Air or Water Cooled

Power Supply :

260hp-730hp

Size :

4540*2920*2240mm

Cooling Method :

Air or Water Cooled

Colour :

Blue/Yellow

Transmission Mode :

direct driven

Cooling Model :

Air cooling

Power Rating :

7.5 KW To 400 KW

Advanced Design :

Design in Germany

Start :

Delta Start

Driving System :

protection system

Inlet Pressure :

Atmospheric Pressure

Engine brands :

Cummins, Yuchai, Deutz, Catapillar

Description

AIRERA Double-Stage Diesel Portable Compressor

Blast Hole Drilling Applications

From mineral and limestone mining to metal extraction, blast hole drilling operations are typically conducted in harsh, remote environments. These demanding conditions require robust and reliable equipment to ensure consistent performance.

Robust Design Features

Low-temperature and high-altitude start-up package for extreme conditions
Reinforced compressor frame for enhanced durability
Dust and water-proof equipment protection
Anti-corrosion coating for extended service life
Large-capacity diesel tank for uninterrupted long-term operation

Industrial Applications

Suitable for various mineral mining operations and geothermal drilling projects. Used in mining operations to extract valuable minerals from boulders and process materials into smaller particles or powders for cement production and other industrial applications. Widely utilized in iron mines, copper mines, gold mines, and cement manufacturing facilities.

Technical Specifications

Model	Working Pressure	Capacity	Engine	Power	Dimensions
	bar \| psi	m³/min \| cfm	Model	kW \| hp	mm
CALT -12/15	15 \| 218	12 \| 430	Yuchai	118 \| 160	398018002650
CALT -15/16	16 \| 232	15 \| 540	Yuchai	140 \| 190	398018002650
CALT -15/16C	16 \| 232	15 \| 540	-	132 \| 180	398018002650
CALT -17/17	17 \| 247	17 \| 612	Yuchai	162 \| 220	398018002650
CALT -17/17C	17 \| 247	17 \| 612	-	155 \| 210	398018002650
CALT -18/20	20 \| 290	18 \| 648	Yuchai	191 \| 260	398018002650
CALT -18/20C	20 \| 290	18 \| 648	6CTA8.3-C260	191 \| 260	398018002650
CALT -19.5/19C	19 \| 276	19.5 \| 696	6CTA8.3-C260	195 \| 260
CALT -19/21-21/18C	21 \| 305	19 \| 684	-	191 \| 260	460019502850
CALT -22/20C	20 \| 290	22 \| 786	6CTA8.9-C325	240 \| 325	460019502850
CALT -23/23-25/18C	23 \| 334	23 \| 828	-	240 \| 325
CALT -27/23-29/18	23 \| 334	27 \| 972	Yuchai	294 \| 400
CALT -25/23-27/18C	23 \| 334	25 \| 900	-	265 \| 360
CALT -26/25C	25 \| 363	26 \| 928	QSZ13-C500	368 \| 500	470021002500
CALT -21/35C	35 \| 508	21 \| 750
CALT -26/25(21/35)	25(35) \| 363(508)	26(21) \| 929(750)
CALT -33/25C	25 \| 363	33 \| 1179	QSZ13-C550	405 \| 550
CALT -26/35C	35 \| 508	26 \| 929
CALT -29/25C	25 \| 363	39 \| 1393	KTA19-P630 or C-18ACERT	463 \| 630
CALT -33/35C	35 \| 508	33 \| 1179
CALT-39/25(33/35)K	25(35) \| 363(508)	39(33) \| 1393(1179)

Note: The model is represented as two front *, its length dimensions include mop

Industry Applications

Two-stage air compressors are extensively used across multiple industries including mining, water conservancy, transportation, shipbuilding, urban construction, energy, and military applications requiring deep hole drilling operations.

Advanced Performance Technology

AIRERA high-pressure double-stage portable compressors feature multiple pressure and temperature sensors that continuously monitor operational parameters. The engine ECU and controller calculate and execute optimal fuel injection amounts to ensure consistent gas production and high wind speed, guaranteeing superior drilling penetration performance.

Enhanced Drilling Efficiency

Higher pressure delivers faster drilling speeds, while high flow rates support larger drilling diameter formations. During extended high-temperature testing, AIRERA equipment maintains consistent, stable performance, providing reliable and constant productivity under demanding conditions.
