Specifications
Brand Name :
AIRERA
Model Number :
AGFD-45D C VP
Certification :
ISO、CE、TUV
Place of Origin :
made in China
MOQ :
1 unit
Price :
2,000-50,000 USD
Payment Terms :
T/T,L/C
Supply Ability :
2,000-3,000 per month
Description
Product Overview

The AIRERA AGFD-45D C VP is a 45kW variable speed screw air compressor designed to provide energy efficient and reliable compressed air supply for industrial applications.

Equipped with an advanced inverter control system, the compressor automatically adjusts motor speed according to real time air demand. This allows the system to maintain stable pressure while significantly reducing energy consumption compared with traditional fixed speed compressors.

The direct drive transmission structure improves mechanical efficiency and ensures reliable long term performance. Combined with a high efficiency screw airend and intelligent control system, the AGFD variable speed series offers excellent performance for modern factory environments.

AIRERA AGFD-45D C VP 45kW Variable Speed Direct Drive Screw Air Compressor

Key Features

Variable Speed Inverter Control
Adjusts motor speed based on air demand to reduce energy consumption.

Direct Drive Transmission System
Improves mechanical efficiency and reduces transmission losses.

Stable Air Pressure Supply
Maintains consistent pressure output for sensitive industrial equipment.

Energy Saving Operation
Optimized for production environments with fluctuating air demand.

High Efficiency Screw Airend
Provides stable airflow and reliable compression performance.

Intelligent Control System
Digital controller monitors pressure, temperature and operating status in real time.

AIRERA AGFD-45D C VP 45kW Variable Speed Direct Drive Screw Air Compressor

Technical Parameters
45KW air cooling compressor parameters
ITEM UNIT MODEL
AGFD-45
Free air delivery m3/min 7.60 7.0 5.8 5.0
Max. working pressure MPa 0.8 1.0 1.3 1.5
Compressor type
Oil inject screw compressor
Cooling type
Air cooling
Driven type
Belt driven
Inlet status Temperature ℃ ≤55
Pressure MPa Atmospheric pressure
Relative humidity
≤90%
Noise Level dB(A) ≤72
Residual oil content ppm ≤1
Drive rotor speed rpm 5500 5000 4450 4000
Compressed air outlet temperature ℃ Ambient temperature＋10
Cooling air flow m3/hr 10200
Control mode
Intelligent controller
Safety valve set pressure MPa 0.88 1.10 1.43 1.60
Lubricating oil volume L 30
Lubricating oil brand
ROTORCOMP
Compressed air outlet connection
G1-1/4
Dimension L mm 1380
W mm 1000
H mm 1300
Net Weight kg 1045
Motor Model
Y2200L1-2
Speed rpm 2950
Rated Power KW 45
Service factor
1.2
Protection type
IP55
Efficiency
IE3
Startup mode
Y-Δ starting
Voltage V 380(Special on request)
Frequency Hz 50(Special on request)
Rated current A 84
Weight of motor kg 312

AIRERA AGFD-45D C VP 45kW Variable Speed Direct Drive Screw Air Compressor

AGFD-VSD series air screw compressor
Hitored wel-krown manutacturer producng quelty screw compressorol fre compresporhigh pressure compressorn So U.CE certhcateswth good prce,5years warany.Pdesign, more energy-saving, reliable compressor system for all kinds of projects.
AIRERA AGFD-45D C VP 45kW Variable Speed Direct Drive Screw Air Compressor

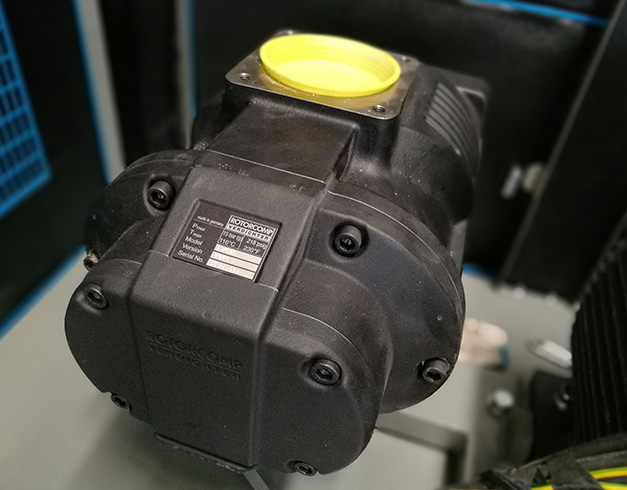

Why to use Evo series German main engine compressor?
Advantages of our new EVO technology
New ROLLING PROFILER - ultimate efficiency with reduced noise
Long life cycle due to increased bearing dimensions and wear-free ROLLING PROFILER
Wide operating pressure range from 5 to 15 barg
High manufacturer assembling - "Made in Germany'
Quality assurance - bench test of every air end before leaving our factory
Easy application selection with our new ROTORCOMP SIZING AIR SoftwareHighest flexibility for your package design
Suitable for all types of motors

FAQ

Q1: What is the advantage of variable speed air compressors?
Variable speed compressors adjust motor speed according to air demand, reducing energy consumption and maintaining stable pressure.

Q2: Is this model suitable for factories with fluctuating air demand?
Yes. The inverter system automatically adapts to changing air consumption conditions.

Q3: What is the benefit of direct drive transmission?
Direct drive design reduces mechanical losses and improves overall system efficiency.

Q4: Can electrical specifications be customized?

Yes. Voltage and configuration can be adjusted according to customer requirements.
