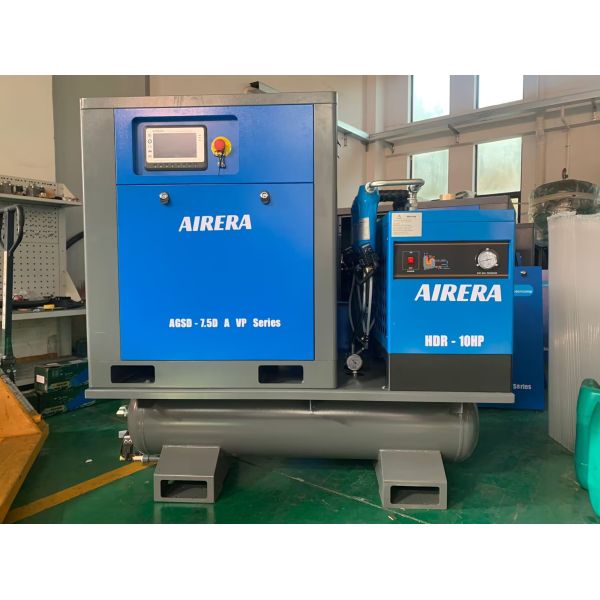

AIRERA AGSD-7.5D A VP 7.5kW Variable Speed Rotary Screw Air Compressor

Specifications

Brand Name :

AIRERA

Model Number :

AGSD-7.5D C VP

Certification :

ISO、CE、TUV

Place of Origin :

made in China

MOQ :

1 unit

Price :

2,000-50,000 USD

Payment Terms :

L/C,T/T

Supply Ability :

2,000-3,000 per month

ITEM :

LGSD-7.5

Compressor type :

Oil inject screw compressor

Cooling air flow :

4800

Description

Product Overview

The AIRERA AGSD-7.5D C VP is a 7.5kW variable speed rotary screw air compressor designed for small industrial facilities and workshops that require stable compressed air supply with improved energy efficiency. Equipped with an inverter control system, the compressor automatically adjusts motor speed based on real time air demand. This helps reduce energy consumption while maintaining consistent air pressure in the system. Compared with traditional fixed speed compressors, the variable speed design allows the machine to operate more efficiently under fluctuating load conditions. Its compact structure and reliable components make it suitable for small factories and production environments.

AGFD-VSD series air screw compressor

Hitored wel-krown manutacturer producng quelty screw compressorol fre compresporhigh pressure compressorn So U.CE certhcateswth good prce,5years warany.Pdesign, more energy-saving, reliable compressor system for all kinds of projects.

Key Features

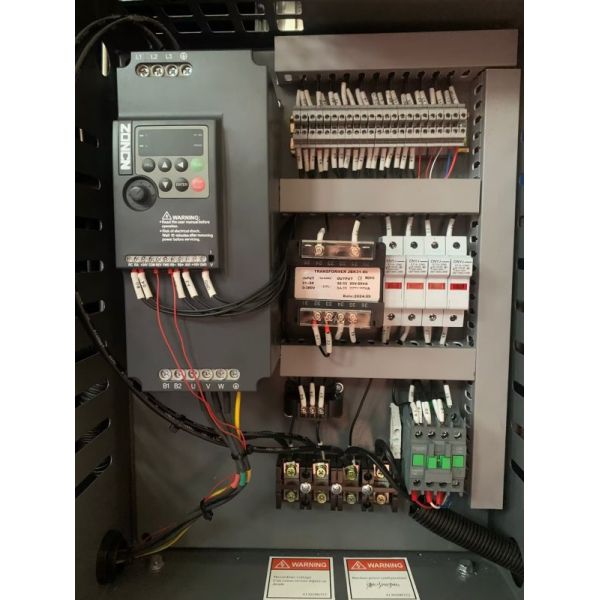

Variable Speed Inverter Control
Automatically adjusts operating speed according to air demand to improve energy efficiency.
Stable Air Pressure Output
Maintains consistent compressed air supply for pneumatic equipment.

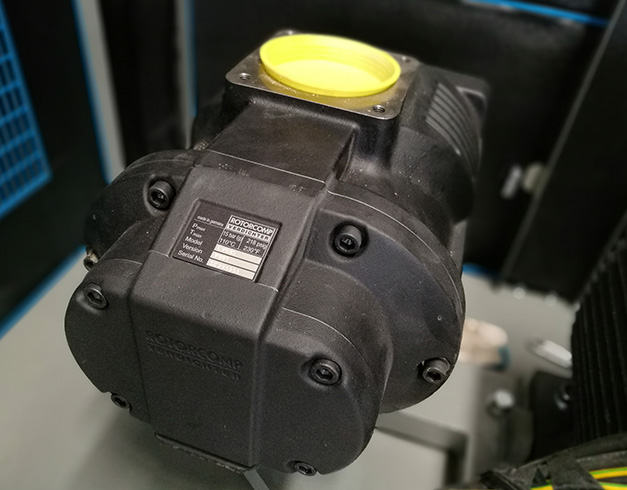

High Efficiency Screw Airend
Optimized rotor design improves compression efficiency and reliability.
Compact Industrial Structure
Space saving design suitable for workshop installation.
Energy Efficient Operation
Reduces energy consumption during partial load operation.
Intelligent Control Panel
Allows easy monitoring of pressure, temperature and operating status.

Technical Parameters

Technical Data of Rotorcomp LGSD(C) series Screw Air Compressor
ITEM		UNIT	MODEL
			AGSD-7.5
Compressor
¹ Capacity (f.a.d.) at gauged pressure		m³/min	1.2	1.15	1
Max. working pressure		MPa	0.7	0.8	1
Compressor type			Oil inject screw compressor
Cooling type			Air cooling
Driven type			Direct driven
Inlet status	Temperature	℃	≤45
	Pressure	MPa	Atmospheric pressure
	Relative humidity		≤90%
Cooling air flow		m³/hr	4800
Control mode			Intelligent controller
Safety valve set pressure		MPa	0.77	0.88	1.1
Lubricating oil volume		L	7
Lubricating oil brand			ROTORCOMP
Drive rotor speed		rpm	2900
Main Motor	Rated Power	KW	7.5
	Type		Fix speed
	Speed	rpm	2900
	Service factor		1.2
	Protection type		IP55
	Insulation class	ISO	F
	Efficiency		IE3
	Startup mode		Direct starting
	Voltage(Special on request)	V	380
	Frequency(Special on request)	Hz	50
	Rated current	A	14.37
Fan Motor	Rated Power	KW	0.12
	Type		Fix speed
	Speed	rpm	1400
	Protection type		IP55
	Insulation class	ISO	F
	Startup mode		Direct starting
	Voltage(Special on request)	V	380
	Frequency(Special on request)	Hz	50

FAQ

Q1: What is the benefit of a variable speed compressor?: Variable speed compressors adjust motor speed according to air demand, reducing energy consumption and maintaining stable pressure.
Q2: Is a 7.5kW compressor suitable for small workshops?: Yes. It is commonly used in small production environments that require reliable compressed air for pneumatic tools.
Q3: Does the inverter system reduce electricity consumption?: Yes. The inverter system improves efficiency especially when air demand fluctuates during operation.
Q4: Can voltage or configuration be customized?: Yes. Electrical specifications can be adjusted according to customer requirements.
