Industrial Single Stage Compressor OE-90A | Four Working Pressures & Heavy Robust Structure
Industrial Single Stage Compressor OE-90A | Four Working Pressures & Heavy Robust Structure
Specifications
Brand Name :
FU PRO
Model Number :
OE-90A
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
20000-420000CNY
Payment Terms :
50% deposit in advance,balance 50% before shipment
Supply Ability :
Stable bulk supply, long-term orders accepted
Delivery Time :
Standard / Custom Orders: Shipment within 15-25 working days upon receipt of advance payment.
Packaging Details :
Bubble Wrap / Stretch Wrap
Model :
OE-90A Single Stage Screw Air Compressor
Exhaust Port :
2'' BSPT
Overall Size :
2050×1500×1850 mm
Flow Rate Range :
5.62–12.3 m³/min (VFD: 1.31–12.3 m³/min)
Working Pressure Range :
7.5–15.5 bar(g)
Exhaust Interface :
G1-1/4" / G2"
Net Weight :
1491kg
Description

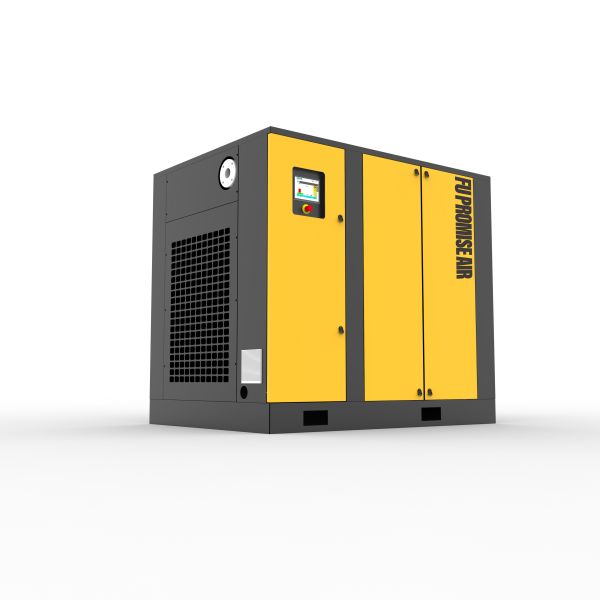

OE-90A Single Stage Screw Air Compressor | Huge Constant Rated Air Flow & Multi-Pressure Selection

Product Introduction

OE-90A heavy-duty fixed displacement single stage screw air compressor features four standard rated pressures:16.4m³/min@7.5bar,15.3m³/min@8.5bar,13.8m³/min@10bar,12.4m³/min@13bar. Equipped with large 2'' BSPT exhaust port for low-pressure-loss long-distance main pipeline air transmission. Overall dimension:2050×1500×1850mm, net weight 1491kg and running noise at 75dB(A). Fully load-tested before delivery, widely applied for mining auxiliary, full-vehicle auto manufacturing, heavy steel structure and super-large spraying production lines, available for bulk container export.

Core Advantages

  1. Four selectable rated pressures plus massive steady fixed airflow to supply whole super factory continuous production

    Full industrial pressure range from7.5~13 bar with stable constant output after setting pressure, capable of supplying hundreds of pneumatic machines without redundant compressor installation.
  2. Oversize 2-inch BSPT outlet plus refined mute cabinet for convenient heavy-industry pipeline layout

    Large bore port reduces pipeline loss for factory main piping; reinforced noise reduction design keeps 75dB quiet operation to meet global industrial environmental standards.

Product Parameters





Item Specification
Model OE-90A Single Stage Screw Air Compressor
Rated Air Flow 16.4m³/min@7.5bar(g),15.3m³/min@8.5bar(g),13.8m³/min@10bar(g),12.4m³/min@13bar(g)
Exhaust Port 2'' BSPT
Overall Size 2050×1500×1850 mm
Noise Level 75dB(BA)
Net Weight 1491kg
Application Mining equipment, full auto manufacturing, heavy steel fabrication & large-scale industrial spraying industry

FAQ

Q1: Which factory fits OE-90A fixed-speed compressor?

A: Super-large heavy factories with 24-hour non-stop full-load stable air consumption.

Q2: Can BSPT port convert to NPT thread?

A: Custom thread adapters available without airflow performance degradation.

Q3: Are maintenance spare parts available for full container shipment?

A: Complete filter kits and special screw lubricant can be shipped together with main machines.
