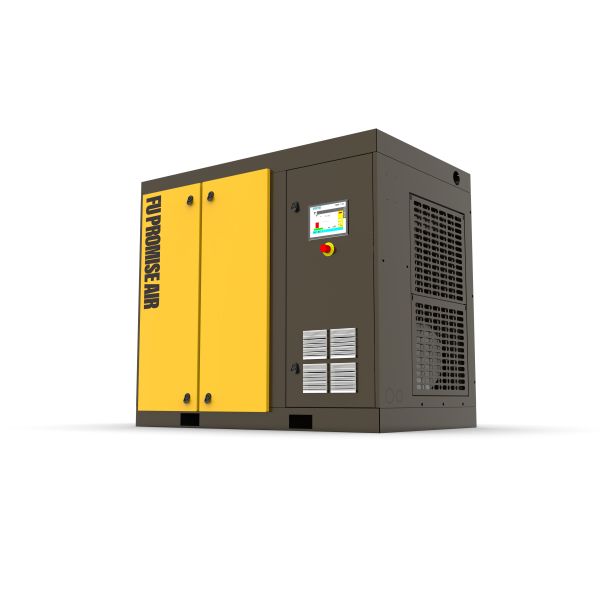

Single Stage Screw Air Compressor OE-30A | Stable Full-Rated Flow & 1-1/4'' BSPT Port
Single Stage Screw Air Compressor OE-30A | Stable Full-Rated Flow & 1-1/4'' BSPT Port
Specifications
Brand Name :
FU PRO
Model Number :
OE-30A
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
20000-420000CNY
Payment Terms :
50% deposit in advance,balance 50% before shipment
Supply Ability :
Stable bulk supply, long-term orders accepted
Delivery Time :
Standard / Custom Orders: Shipment within 15-25 working days upon receipt of advance payment.
Packaging Details :
Bubble Wrap / Stretch Wrap
Model :
OE-30A Single Stage Screw Air Compressor
Rated Air Flow :
5.4m³/min@7.5bar(g),5.0m³/min@8.5bar(g),4.6m³/min@10bar(g),4.0m³/min@13bar
Flow Rate Range :
11.63–27.1 m³/min (Variable-speed models: 2.63–27.1 m³/min)
Exhaust Port :
1-1/4'' BSPT
Noise Level :
67dB(BA)
Unit Dimensions :
2780 × 1670 × 1850 mm
Net Weight :
669kg
Description
OE-30A Single Stage Screw Air Compressor | Constant Large Air Flow & Multi-Pressure Selection

Product Introduction

OE-30A is 30kW fixed displacement single stage screw air compressor with four standard rated pressures:5.4m³/min@7.5bar,5.0m³/min@8.5bar,4.6m³/min@10bar,4.0m³/min@13bar. Equipped with large 1-1/4'' BSPT exhaust port for high-volume long-distance air transmission. Overall dimension:1450×923×1270mm, net weight 669kg and running noise at 67dB(A). Fully load-tested before delivery, widely used in large auto parts, rubber-plastic, heavy metal fabrication and full-plant spray production, available for bulk container export.

Core Advantages

  1. Four optional rated pressures plus steady large fixed airflow to supply whole factory continuous production

    Full industrial pressure range from7.5~13 bar with stable constant output, capable of driving dozens of pneumatic machines simultaneously without redundant compressor setup.
  2. Oversize BSPT outlet plus optimized mute frame for easy heavy-duty workshop piping & installation

    Large bore port reduces pipeline pressure drop; refined noise reduction structure keeps 67dB quiet operation to meet global industrial environmental regulations.

Product Parameters





Item Specification
Model OE-30A Single Stage Screw Air Compressor
Rated Air Flow 5.4m³/min@7.5bar(g),5.0m³/min@8.5bar(g),4.6m³/min@10bar(g),4.0m³/min@13bar(g)
Exhaust Port 1-1/4'' BSPT
Overall Size 1450×923×1270 mm
Noise Level 67dB(BA)
Net Weight 669kg
Application Large auto component, rubber-plastic, heavy sheet metal & industrial spraying industry

FAQ

Q1: Which working condition suits fixed-speed compressor?

A: Ideal for 24-hour non-stop full-load mass production factories with steady air consumption.

Q2: Can BSPT port be converted to NPT thread?

A: Optional thread adapters available without airflow performance degradation.

Q3: Are maintenance spare parts available for full container shipment?

A: Complete filter kits and special screw lubricant can be shipped together with main machines.
