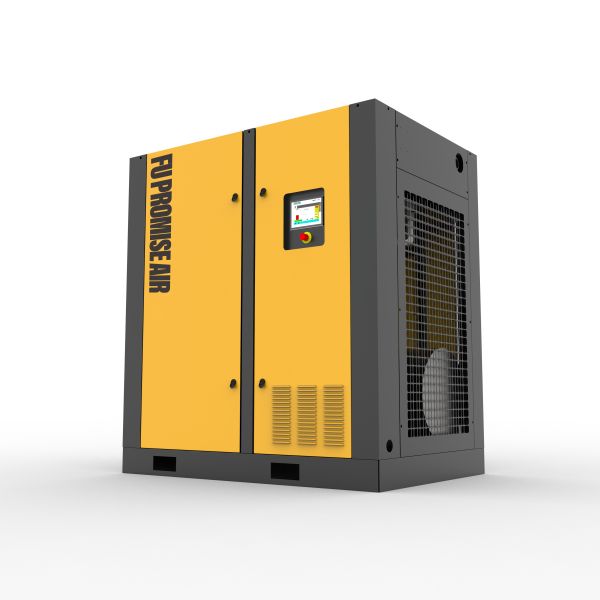

OE-55A Single Stage Screw Compressor | Extra Large Fixed Air Output & Multi-Pressure Selection
OE-55A Single Stage Screw Compressor | Extra Large Fixed Air Output & Multi-Pressure Selection
Specifications
Brand Name :
FU PRO
Model Number :
OE-55A
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
20000-420000CNY
Payment Terms :
50% deposit in advance,balance 50% before shipment
Supply Ability :
Stable bulk supply, long-term orders accepted
Delivery Time :
Standard / Custom Orders: Shipment within 15-25 working days upon receipt of advance payment.
Packaging Details :
Bubble Wrap / Stretch Wrap
Model :
OE-55A Single Stage Screw Air Compressor
Power Range :
75kW
Overall Size :
1750×1200×1900 mm
Working Pressure Range :
7.5–15.5 bar(g)
Exhaust Interface (BSPT) :
G2"
Noise Level :
72dB(BA)
Net Weight :
1475kg
Description
OE-55A Single Stage Screw Air Compressor | Ultra Large Constant Air Flow & Multi-Pressure Optional Grades

Product Introduction

OE-55A heavy-duty fixed displacement single stage screw air compressor has four standard rated pressures:10.3m³/min@7.5bar,10.1m³/min@8.5bar,8.4m³/min@10bar,7.6m³/min@13bar. Equipped with oversized 2'' BSPT exhaust port for high-volume low-loss long-distance air transmission. Overall dimension:1750×1200×1900mm, net weight 1475kg and running noise at 72dB(A). Fully load-tested before delivery, widely used in heavy machinery, large auto parts, mining supporting and full-scale spraying production lines, available for bulk container export.

Core Advantages

  1. Four selectable rated pressures plus steady huge fixed airflow to supply full heavy factory non-stop production

    Full industrial pressure range from7.5~13 bar with stable constant output, capable of driving hundreds of pneumatic machines simultaneously without redundant compressor setup.
  2. 2-inch large-bore BSPT outlet plus optimized mute frame for convenient heavy-industry pipeline layout

    Oversize connection minimizes pipeline pressure drop for large-diameter piping; reinforced noise reduction structure keeps 72dB quiet operation to meet international factory environmental standards.

Product Parameters




Item Specification
Model OE-55A Single Stage Screw Air Compressor
Rated Air Flow 10.3m³/min@7.5bar(g),10.1m³/min@8.5bar(g),8.4m³/min@10bar(g),7.6m³/min@13bar(g)
Exhaust Port 2'' BSPT
Overall Size 1750×1200×1900 mm
Noise Level 72dB(BA)
Net Weight 1475kg
Application Heavy machinery, large auto component, mining auxiliary & heavy industrial spraying industry

FAQ

Q1: Which working condition fits OE-55A fixed-speed compressor?

A: Ideal for 24h continuous full-load heavy factories with stable constant air demand.

Q2: Can 2'' BSPT port convert to NPT thread?

A: Custom thread adapters are available without airflow performance degradation.

Q3: Can maintenance spare parts be shipped together with main machines?

A: Complete filter kits and special screw lubricant can be loaded in same export container.
