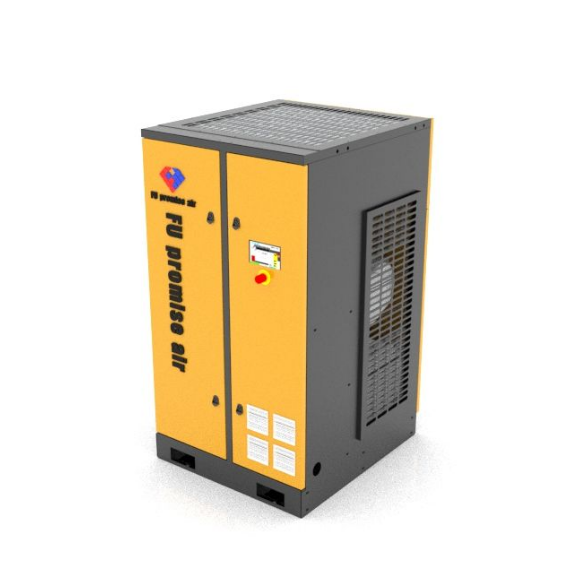

Single Stage Screw Air Compressor OE-18APF | Large Displacement & Standard BSPT Inlet Port
Single Stage Screw Air Compressor OE-18APF | Large Displacement & Standard BSPT Inlet Port
Specifications
Brand Name :
FU PRO
Model Number :
OE-18APF
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
20000-420000CNY
Payment Terms :
50% deposit in advance,balance 50% before shipment
Supply Ability :
Stable bulk supply, long-term orders accepted
Delivery Time :
Standard / Custom Orders: Shipment within 15-25 working days upon receipt of advance payment.
Packaging Details :
Bubble Wrap / Stretch Wrap
Model :
OE-18APF Single Stage Screw Air Compressor
Exhaust Port :
1-1/4'' BSPT
Flow Rate Range :
3.37–5.73 m³/min (depending on pressure)
Working Pressure Range :
6/8.5 / 10/12.5 / 13/15.5 bar(g)
Noise Level :
63 dB(A)
Overall Size :
1000×800×1330 mm
Net Weight :
458kg
Description
OE-18APF Single Stage Screw Air Compressor | Large Adjustable Airflow & Multi-Pressure Optional Grades

Product Introduction

OE-18APF heavy-duty single stage screw air compressor supports four standard working pressures ranging from 7.5Bar(g) to13Bar(g), with wide variable airflow per rating:1.44~3.2m³/min@7.5bar,1.35~3m³/min@8.5bar,1.22~2.7m³/min@10bar,1.08~2.4m³/min@13bar. Equipped with large 1-1/4'' BSPT exhaust port for smooth high-volume air delivery. Overall dimension:1000×800×1330mm, net weight 458kg and low running noise at 63dB(A). Fully pre-commissioned before delivery, widely used for heavy hardware, large spray workshop, rubber-plastic and auto parts automatic production lines, available for bulk container export.

Core Advantages

  1. Four available pressure grades plus ultra-wide adjustable airflow to satisfy full-plant centralized air demand

    Full pressure range from7.5~13 bar with large flow variation per setting, auto low flow for power saving at off-peak and full output during peak load, replacing multiple small compressors to cut total investment & maintenance cost.
  2. Large-size BSPT connection plus 63dB quiet operation for convenient heavy-duty installation

    1-1/4'' big bore outlet reduces pipeline pressure loss for long-distance air transmission; optimized mute structure keeps 63dB low noise to meet global environmental standards for factory layout.

Product Parameters





Item Specification
Model OE-18APF Single Stage Screw Air Compressor
Adjustable Air Flow 1.44~3.2m³/min@7.5bar(g),1.35~3m³/min@8.5bar(g),1.22~2.7m³/min@10bar(g),1.08~2.4m³/min@13bar(g)
Exhaust Port 1-1/4'' BSPT
Overall Size 1000×800×1330 mm
Noise Level 63dB(BA)
Net Weight 458kg
Application Heavy hardware, large-scale spraying, rubber-plastic & automotive automation industry

FAQ

Q1: What is the energy-saving performance of variable flow design?

A: The compressor modulates air output according to actual consumption, saving over 22% power under intermittent working conditions.

Q2: Can 1-1/4'' BSPT port be converted to NPT or metric thread?

A: Optional thread adapters are available without any performance degradation.

Q3: Can maintenance spare parts be shipped together with main machines?

A: All consumables including air filter, oil filter and special screw lubricant can be loaded in same container for export.
