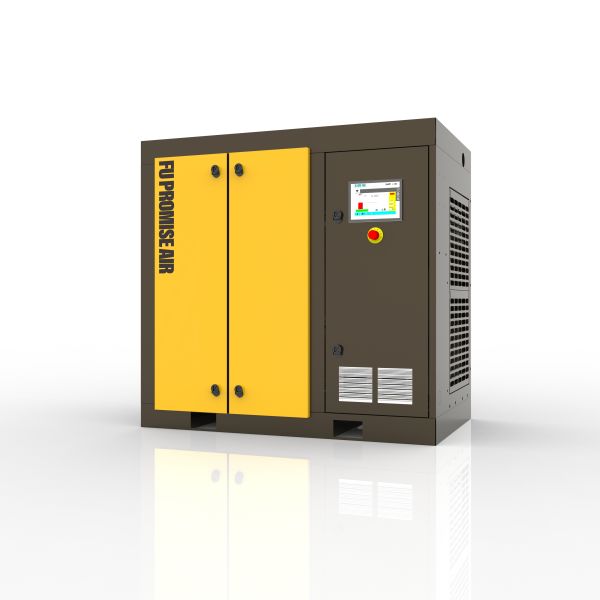

OE-18A Single Stage Screw Compressor | Fixed Stable Air Output & Multi-Pressure Selectable Settings
OE-18A Single Stage Screw Compressor | Fixed Stable Air Output & Multi-Pressure Selectable Settings
Specifications
Brand Name :
FU PRO
Model Number :
F Series
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
20000-420000CNY
Payment Terms :
50% deposit in advance,balance 50% before shipment
Supply Ability :
Stable bulk supply, long-term orders accepted
Delivery Time :
Standard / Custom Orders: Shipment within 15-25 working days upon receipt of advance payment.
Packaging Details :
Bubble Wrap / Stretch Wrap
Exhaust Port :
1-1/4'' BSPT
Model :
OE-18A Single Stage Screw Air Compressor
Flow Rate Range :
24.65–56 m³/min (Variable-speed models: 6.07–56 m³/min)
Working Pressure Range :
7.5–15.5 bar(g)
Exhaust Interface (BSPT) :
DN125
Overall Size :
1250×773×1200 mm
Net Weight :
453kg
Description
OE-18A Single Stage Screw Air Compressor | Constant Rated Air Flow & Multi-Pressure Working Selection

Product Introduction

OE-18A is 18kW fixed displacement single stage screw air compressor with four standard rated pressures from7.5Bar(g) to13Bar(g):3.2m³/min@7.5bar,3.0m³/min@8.5bar,2.7m³/min@10bar,2.4m³/min@13bar. Equipped with large 1-1/4'' BSPT exhaust port for high-volume air transmission. Overall dimension:1250×773×1200mm, net weight 453kg and low running noise at 63dB(A). Fully pre-tested before shipment, widely applied for large hardware factory, full-scale spray line, rubber-plastic and auto component continuous production, available for bulk container export.

Core Advantages

  1. Four optional rated pressures plus steady fixed airflow to secure uninterrupted production air supply

    Full industrial pressure range from7.5~13 bar with constant stable output under set pressure, ideal for 24-hour non-stop production without unstable air pressure issue.
  2. Oversize BSPT port plus 63dB low-noise operation for flexible heavy-duty workshop installation

    Large bore connection reduces pipeline pressure drop for long-distance piping; optimized mute structure meets global environmental noise regulation for various factory layout.

Product Parameters




Item Specification
Model OE-18A Single Stage Screw Air Compressor
Rated Air Flow 3.2m³/min@7.5bar(g),3.0m³/min@8.5bar(g),2.7m³/min@10bar(g),2.4m³/min@13bar(g)
Exhaust Port 1-1/4'' BSPT
Overall Size 1250×773×1200 mm
Noise Level 63dB(BA)
Net Weight 453kg
Application Large hardware, full factory spraying, rubber-plastic & automotive manufacturing industry

FAQ

Q1: What working conditions fit fixed displacement compressor?

A: Perfect for 24-hour continuous full-load production lines with stable constant air demand.

Q2: Can 1-1/4'' BSPT convert to NPT thread?

A: Optional thread adapters available without any air flow performance loss.

Q3: Are maintenance spare parts available for container shipment?

A: Complete set of filter elements and special screw oil can be shipped together with compressors.
