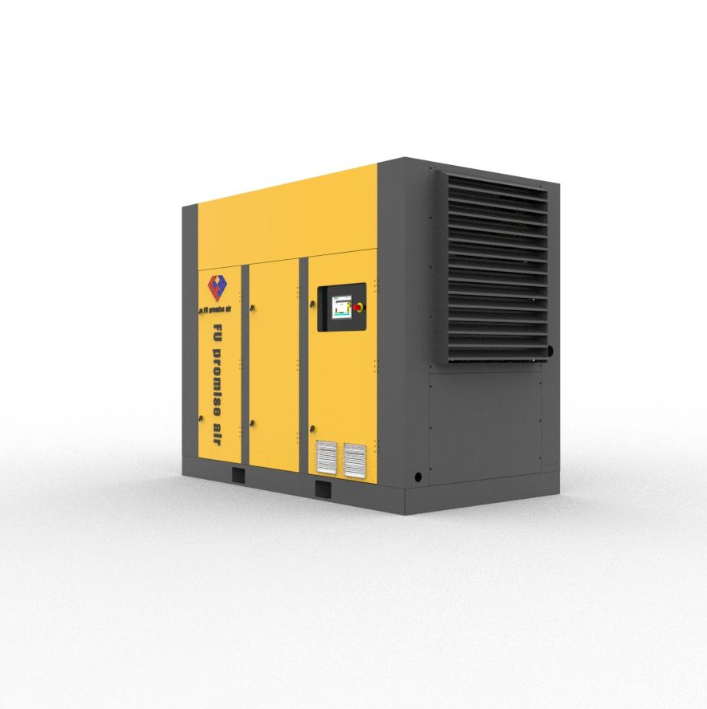

FR-55VSD Oil Free Screw Air Compressor with VSD Variable Speed for 5.6-10.7m³/min Air Flow and Oil-Free Compression
FR-55VSD Oil Free Screw Air Compressor with VSD Variable Speed for 5.6-10.7m³/min Air Flow and Oil-Free Compression
Specifications
Model Number :
FR-55VSD
Air Outlet Port :
Rp2
MOQ :
1
Delivery Time :
Standard units: 30-60 working days after deposit received Custom/non-standard units: 30-80 working days after deposit received
Overall Dimension :
2700mm*1450mm*2125mm
Brand Name :
FU PRO
Total Weight :
2580 Kilograms
Packaging Details :
Bubble Wrap / Stretch Wrap
Payment Terms :
50% T/T deposit,50% T/T balance before shipment
Air Flow :
5.6-10.7 cubic meters per minute
Voltage :
400 Volts
Certification :
CE
Price :
220000-700000
Pressure :
4.5-10 bar(g)
Supply Ability :
Stable bulk supply, long-term orders accepted
Model :
FR-55VSD
Noise Level :
70-78 d(BA)
Cooling Method :
Air Cooling
Place of Origin :
CHINA
Description

Core Advantages

FR-55VSD oil-free screw air compressor adopts VSD variable speed technology, which can dynamically adjust air flow from 5.6-10.7m³/min to provide stable air supply and reduce no-load energy consumption. The working pressure ranges from 4.5-10bar(g), adapting to different air pressure requirements of equipment. It uses air cooling method with high heat dissipation efficiency to keep temperature stable during long-time continuous operation. The working voltage is 400V, matching mainstream industrial power supply standard. The exhaust port is Rp2 for easy installation and connection. Overall dimension is 2700mm1450mm2125mm and total weight is 2580KG. The machine runs at 70-78d(BA) low noise with solid frame. With oil-free compression design, it outputs clean oil-free compressed air, suitable for food, pharmaceutical, electronics and other industries requiring high air purity.

Product Parameters


Item Specification
Model FR-55VSD
Air Flow 5.6-10.7 cubic meters per minute
Pressure 4.5-10 bar(g)
Cooling Method Air Cooling
Voltage 400 Volts
Overall Dimension 2700mm1450mm2125mm
Air Outlet Port Rp2
Total Weight 2580 Kilograms
Noise Level 70-78 d(BA)

Q&A

Q1: What is the model of this oil-free screw air compressor? A1: The model is FR-55VSD.

Q2: What is the air flow range of this air compressor? A2: The air flow range is 5.6-10.7 cubic meters per minute.

Q3: What is the working pressure range of this air compressor? A3: The pressure range is 4.5-10 bar(g).

Q4: What is the noise level of this air compressor? A4: The noise level is 70-78 d(BA).

Q5: What is the specification of air outlet port? A5: The air outlet port is Rp2.
