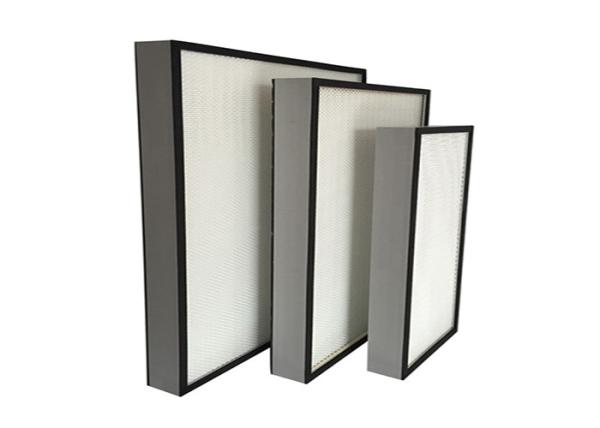

Pharmaceuticals 0.3um Mini Pleat HEPA Filter Flange Type Aluminum Frame
Pharmaceuticals 0.3um Mini Pleat HEPA Filter Flange Type Aluminum Frame
Pharmaceuticals 0.3um Mini Pleat HEPA Filter Flange Type Aluminum Frame
Pharmaceuticals 0.3um Mini Pleat HEPA Filter Flange Type Aluminum Frame
Pharmaceuticals 0.3um Mini Pleat HEPA Filter Flange Type Aluminum Frame
Pharmaceuticals 0.3um Mini Pleat HEPA Filter Flange Type Aluminum Frame
Pharmaceuticals 0.3um Mini Pleat HEPA Filter Flange Type Aluminum Frame
Pharmaceuticals 0.3um Mini Pleat HEPA Filter Flange Type Aluminum Frame
Specifications
Brand Name :
RS
Model Number :
GBK
Place of Origin :
China
MOQ :
10 Pic
Payment Terms :
L/C, T/T, D/A, D/P
Supply Ability :
1000 Piece/Pieces per Month
Delivery Time :
5-8 work days
Packaging Details :
One piece in a plastic bag,then in a carton(according to the size of the products) ，or According to customers' requirement
Filtration Grade :
Medium Filter
Efficiency :
99.99%,F9-H13
Porosity :
0.3um
Medium Material :
Synthetic Fiber/Glass Fiber
Max. Running Temperature :
250℃
Weight :
5-8Kg
Frame :
Alluminum Alloy/ Galvanized steel/Stainless steel
Final resistance :
100-250Pa
Initial pressure drop(Pa): :
≤80
Construction :
Box Filter
Dimension(L*W*H) :
Customized Size
Description
Product Description

Mini-pleat Filters are designed for use in environments where low airflow resistance, high dust holding capacity, and long service life are crucial. Our mini-pleat filters has large media surface area resulting in a lower energy cost and a longer service life.

Mini-Pleat filters are often used in hospitals, electronics factory, pharmaceutical factory, cleanrooms, non-dust room, airports, industrial and manufacturing plants, pharmaceutical facilities, data centers, etc.
Feature:

• Slim shape, highly efficient, convenient and save space
• The materials are mainly made of glass fiber
• The frames are made of aluminum and stainless steel
• The sealing material is self-extinguishing
•Pruduced strictly according to EN779 Standard. The stability and high quality performance are ensured.

Detailed Information:

Nominal Size

WxHxD (inch)

Actual Size

WxHxD(mm)

Rated A

irflow

(m³/h)

Surface

Wind Speed

(m/s)

Initial

Resistance

(pa)

Efficiency

(Colorimetric Method/Class)
12 x12 x 2 305x305x46 400 0.45

≤220

F9-H13
12 x 24 x 2 305x610x46 500 0.45
24 x 24 x 2 610x610x46 700 0.52
36 x 24 x 2 915x610x46 1100 0.52
48 x 24 x 2 1220x610x46 1400 0.52
24 x 24 x 2-3/4 610x610x69 1000 0.75
48 x 24 x 2-3/4 1220x610x69 2000 0.75
Special size can be customized
