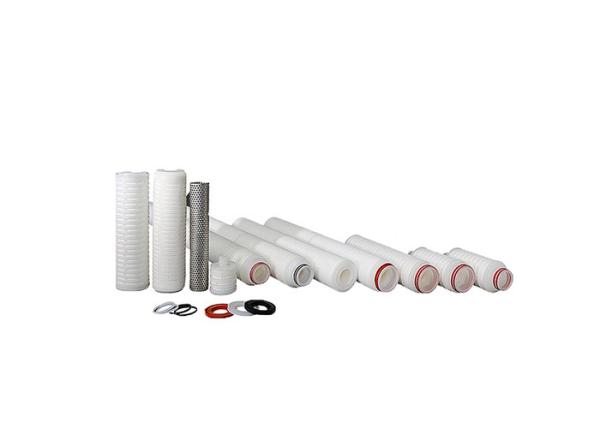

5 Inch Sea Water Pleated Depth Filter 69mm OD For Swimming Pool
5 Inch Sea Water Pleated Depth Filter 69mm OD For Swimming Pool
5 Inch Sea Water Pleated Depth Filter 69mm OD For Swimming Pool
5 Inch Sea Water Pleated Depth Filter 69mm OD For Swimming Pool
5 Inch Sea Water Pleated Depth Filter 69mm OD For Swimming Pool
5 Inch Sea Water Pleated Depth Filter 69mm OD For Swimming Pool
5 Inch Sea Water Pleated Depth Filter 69mm OD For Swimming Pool
5 Inch Sea Water Pleated Depth Filter 69mm OD For Swimming Pool
Specifications
Brand Name :
RS
Model Number :
ZDL
Place of Origin :
China
MOQ :
10
Payment Terms :
L/C, T/T, D/A, D/P
Delivery Time :
5-8 work days
Packaging Details :
One piece in a plastic bag,then in a carton(according to the size of the products) ，or According to customers' requirement
Filter Media :
Polypropylene,PET,Glass fiber
Support Layers :
Polypropylene
Outer cage, End Cap :
Polypropylene
Micron Rating :
0.1, 0.2, 0.45, 0.65, 1.0, 2.0,3.0,5.0,10, 30, 40, 50, 70, 100 um
Outer Diameter :
Φ 69 mm(2.75'')
Inner diameter :
Φ 33 mm(1.30'')
Length(based on DOE end cap) :
10'', 20'', 30'', 40''
Seal Method :
Thermal Bonding, No Adhesives
O-rings/ Gaskets :
Silicone/EPDM/Viton/PTFE/Nitrile
Normal Flow Direction pressure :
4.2 bar (60.9 psi) at 25℃ (77℉ )
Reverse Flow Direction pressure :
2.1 bar (30.5 psi) at 25℃ (77℉ )
Description

5", 10", 20", 30", 40" Swimming Pool Sea Water Industrial Pleated Depth PP Filter Cartridge

Prodouct Description
Outer diameter
69mm/2.7"
Length
9.75'', 10'', 20'', 30'', 40'',
Material
PP
Cage/core/end cap
PP
Sealing construction
Silicone, EPDM, Viton, E-FKM, NBR
Max. operating temperature
80 ℃@1Bar,support adaptors are recommended for temperature exceeds 50℃
Maximum operating differential pressure
4.0 Bar, normal temperature
Maximum operating differential pressure(reverse direction)
2.0 Bar, normal temperature
Maximum temperature sterilization
5 times, 20minutes cycles at 120℃

Features and Benefits

1. Possessing better performance of high temperture-resistance, acid and base resistance
2. Hydrophillic membrane with high flow
3. Non-fiber releasing according to pharmaceutics and food industry requirements
4. 100% integrity tested
5. Flushed with ultrapure water

Typical Applications

1. Machine tool lubrication

2. detergents

3. process

4. waste water 5.Reverse osmosis (RO) protection

6. pre-filtration 7.Solvent

8. bulk chemical

9. process filtration
