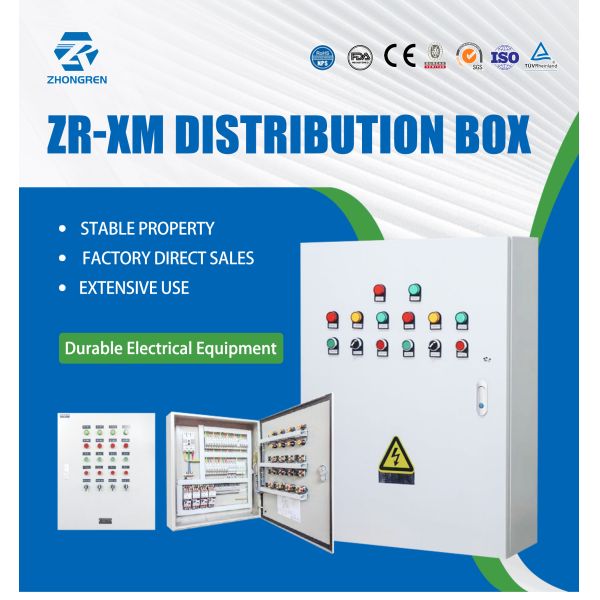

Customized Indoor Wall Mounted Power Distribution Cabinet For Industrial Machine Operation Electrical Distribution Box

Specifications

Brand Name :

Zhongren

Model Number :

ZR-XM

Place of Origin :

Shandong, China

MOQ :

1 pieces

Price :

$5,699/set Customized products

Payment Terms :

L/C, T/T

Delivery Time :

7-15 work days

Packaging Details :

Wooden case or carton

Application :

Industrial

Name :

distribution box

Color :

Customer Request

Keyword :

Distribution box

Usage :

Indoor-Outdoor

Warranty :

1 Year

MAQ :

OEM :

Offered

Description

Product Description

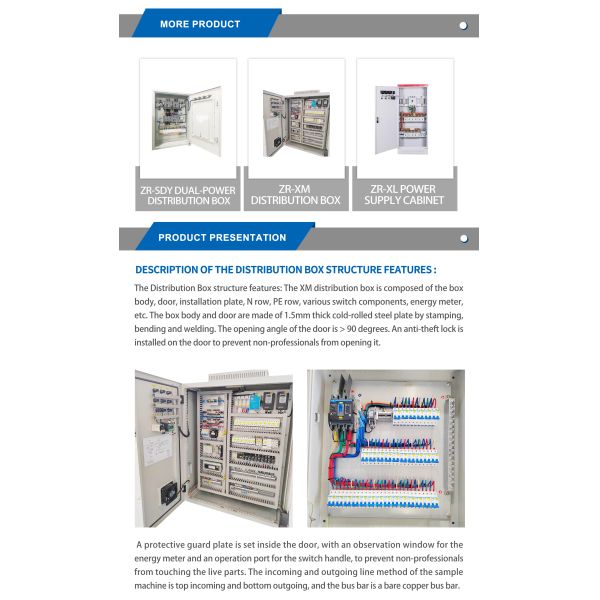

The Distribution Box structure features: The XM distribution box is composed of the boxbody, door, installation plate, N row, PE row, various switch components, energy meter,etc. The box body and door are made of1.5mm thick cold-rolled steel plate by stamping,bending and welding. The opening angle of the door is >90 degrees. An anti-theft lock isinstalled on the door to prevent non-professionals from opening it.

Customized Indoor Wall Mounted Power Distribution Cabinet For Industrial Machine Operation Electrical Distribution Box

Cautionary Notice

All the products are custom-made. Before placing the order, please communicate in detail with the customer service about your
specific requirements (such as specifications, parameters, functions, etc.). We will provide an exclusive solution based on your
needs and confirm the price. The production cycle of custom-made products depends on the complexity of the order. Thank you for
your understanding and cooperation!

Customized Indoor Wall Mounted Power Distribution Cabinet For Industrial Machine Operation Electrical Distribution Box

3.1 Switching electrical appliances and components (model specifications, material names and brand numbers)
Number	Component Name	Model Specification	Quantity
1	moulded case circuit breaker(MCCB)	DZ20Y - 400/3300 400A	1
		Icu/Ics:30kA/23kA	1
		DZ158-125 125A 3P	2
		Icu/Ics:6kA/6kA	2
		DZ158-125 80A 3P	4
		Icu/Ics:6kA/6kA	4
2	miniature circuit breaker	DZ47-60 C20 1P	2
		Icn/Ics:6kA/6kA	2
3	residual current operated circuit-breaker	DZ47LE - 63 C20 1P+N	1
		Icn/Ics:6kA/6kA	1
4	energy meter	DDS2006 5(20) A	2
5	body case	Distribution box housing	1
		(Plate thickness: 1.5mm)	1
3.2 Busbars and Insulated Conductors (Model Specifications, Material Names and Designations)
Number	Component Name	Material Name	Model Specification
1	main bus-bar	Copper strip (bare copper)	TMY - 8mm×30mm
2	N series specification		TMY - 4mm×40mm
3	PE specification		TMY - 4mm×40mm
4	insulated conductor	Polyethylene insulated wire	BVR - 35mm²
			BV - 4mm²
			BVR - 16mm²
3.3 Insulation Supports and Related Connectors (Material Name and Specification)
Number	Component Name	Material Name	Model Specification
1	Insulation support component	insulator	M8
