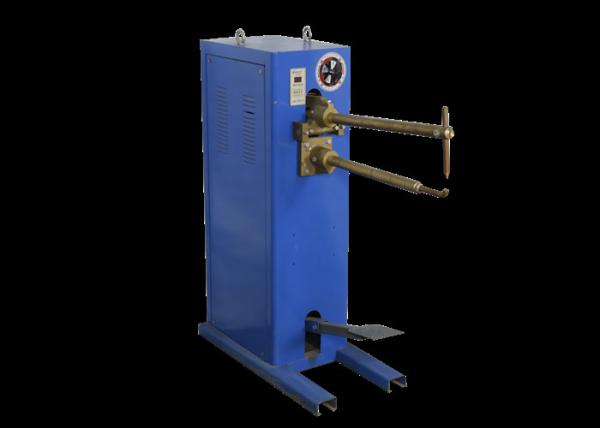

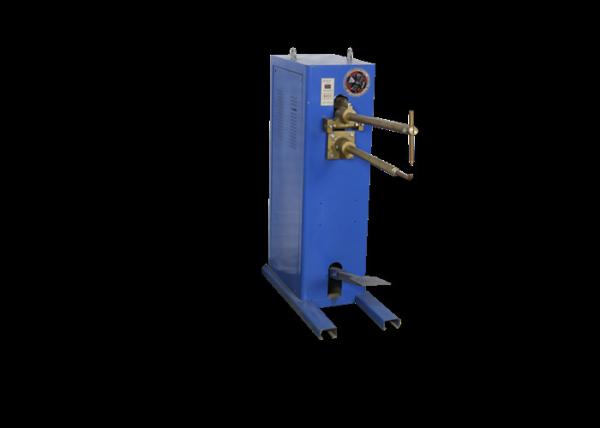

15KA Air Filter Manufacturing Machine , 2500N Pneumatic Spot Welding Machine
15KA Air Filter Manufacturing Machine , 2500N Pneumatic Spot Welding Machine
15KA Air Filter Manufacturing Machine , 2500N Pneumatic Spot Welding Machine
15KA Air Filter Manufacturing Machine , 2500N Pneumatic Spot Welding Machine
Specifications
Brand Name :
Chang Feng
Model Number :
9009-54-80
Certification :
ISO9001
Place of Origin :
An Ping China
MOQ :
>=1 Sets
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
200 Set/Sets per Year
Delivery Time :
30 work days
Packaging Details :
wooden box packing Customized by customer requires
product name :
Filter Welding Machine
Rated Duty Cycle :
35 %
Voltage :
380 v
Warranty :
1 Year
Weight :
215 kg
Model :
CF-38
Max.short-cut current :
15KA
Max.pressing force :
2500N
Dimensions :
950*430*1450 mm
Dimension :
950*430*1450mm
Description

Long Arm Pneumatic Spot Welding Machine / Pedal-Type Resistance/Spot Welder

1. Product introduction
This type of welding machine widely used in hardware manufacturing, traffic tools, household items, cars. And it can be welded low-carbon steel, stainless steel, coated steel, non-ferrous metal wire, sheet etc.

2. Parameter table

Model
DN-35
DTN-63
DTN-100
rate capacity
35 KVA
63 KVA
100 KVA
rate voltage input
380 V
380 V
380 V
Inverter frequency

50HZ
50HZ
50HZ
Max.short-cut current
15KA
19KA
27KA
Max.welding input
79KVA
139KVA
207KVA
Duty cyclce
15%
15%
15%
Arm dimension
200*420mm
220*420mm
220*420MM
Max.pressing force
2500N
3900N
6100N
Cylinder stroke
60mm
60mm
60mm
Consumer of cooling water
3L/min
3.5L/min
4L/min
Electrode head
Φ13mm
Φ16mm
Φ20mm
Electrode holder
Φ20mm
Φ25mm
Φ30mm
Electrode arm
Φ44mm
Φ49mm
Φ59m
Projection
110*130mm
120*130mm
Welding ability
2mm+2mm
3mm+3mm
4mm+4mm
Weight
215Kg
265Kg
337Kg
Dimension
950*430*1450mm
960*460*1500mm
1020*490*1580mm

3. Product advantage

1. Punching online, high speed
2. High precision TIG welding method
3. Non-stop plasma cutting
4. Fast molds changing
5. High automation, easy to operate


4. FAQ

1.Certificates:
RoHs,UL,SGS,MSDS,DIN53438
2.Payment terms:
50% deposit upon getting the order,balance against the B/L copy.
3.Delivery date:
About 7 working days(≤500pcs), special order is negotiable to be quicker.
4.Sample Terms:
We can supply 1-2 small samples for tree but express cost is covered by your side.
5.Minimum Order Quantity:
No strict principle for standard sizes,but 50pcs for non-standard dimensions or types.
