Tool - Free Nickel Color Brass Lock Cable Grippers With Steel Hook For Suspend LED Panels

Our Brass Cable Grippers are mostly used in housing fits into lighting fixtures, signs,

suspended ceilings and many more different applications.

It provides instant tool less height adjustment for drop ceilings, light fixtures, displays, signs.

Our various coupler and cable gripper styles allow for vast number of hanging installation selection.

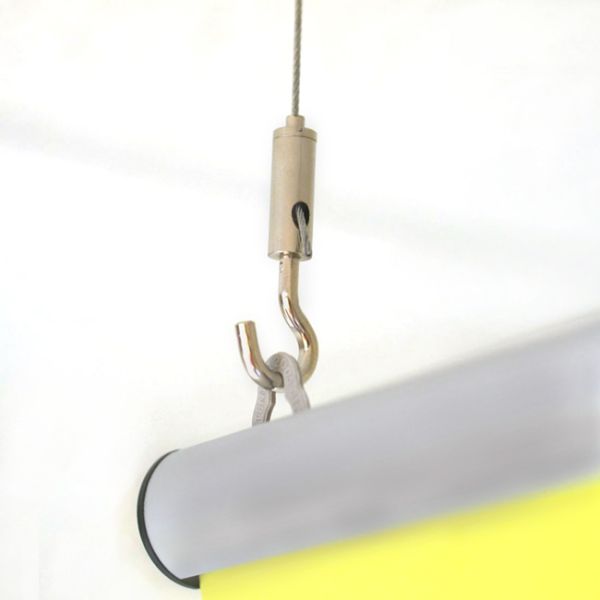

This cable gripper with hook can be used to hang panels,

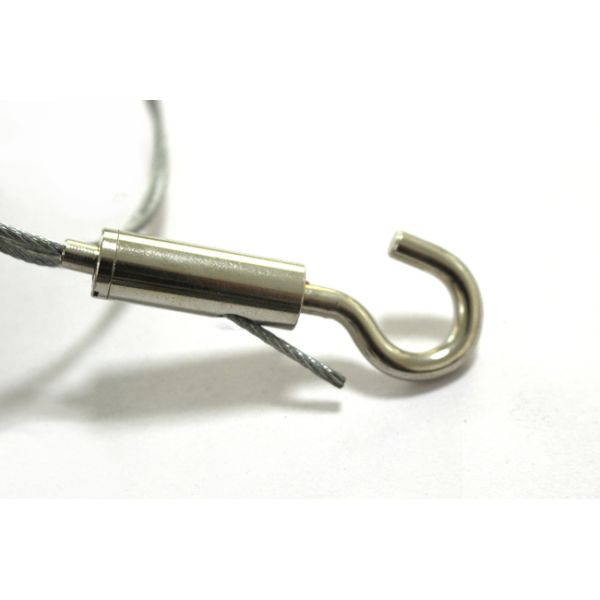

The cable exits out the side of gripper.,hook (included) threaded (M4) into bottom of gripper.

No safety nut. Overall 42mm height (with hook).

Description

How to Install the Cable Grippers?
Except for the ceiling attachments, our cable grippers are all fitted in the same way and once installed,

the full load is attached to the holder and will no longer move.
The cable in the ceiling attachments is held in with a stop ferrule, in all theothers there are

ball bearings which grip the cable.

To installthe Grips,gently depress the spring-loaded plunger (the pipe sticking out of the cable holder)

and insert one end of the cable into it.

Some of the our grippers have a screw nut over the plunger. Where these are present,undo the screw
nut completely before depressing the plunger.

Thread the cable through the holder as required,but at least far enough to be able to

clearly see it protrude from the other end of the holder.
Release the plunger to attach the load.The cable is gripped by ball bearings inside the fitting.

Once the holder is in the desired position, if it has a safety-nut, screw it down as

far as possible by hand (do not use tools).

To adjust,simply reverse the procedure:completely unscrew the safety-nut ,

press the spring-loaded plunger with your finger.Move the holder up and down

the cable as required.Screw the nut back again.
