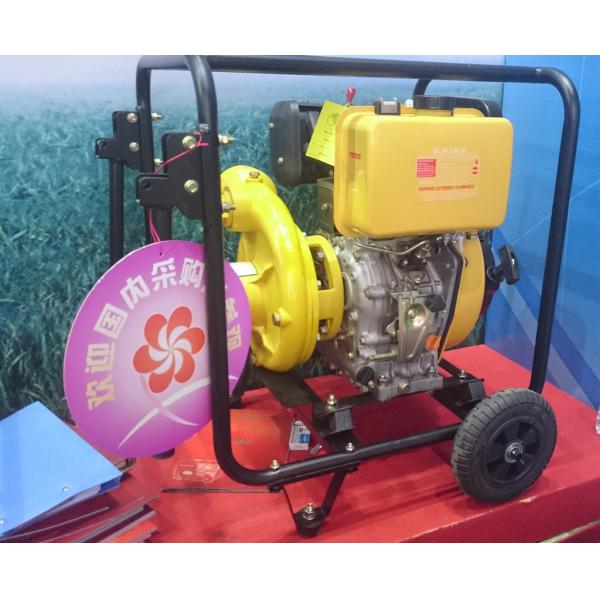

Cast Iron High Pressure Water Pump Big Fuel Tank KDP30H With Handles And Wheels
Cast Iron High Pressure Water Pump Big Fuel Tank KDP30H With Handles And Wheels
Cast Iron High Pressure Water Pump Big Fuel Tank KDP30H With Handles And Wheels
Cast Iron High Pressure Water Pump Big Fuel Tank KDP30H With Handles And Wheels
Specifications
Brand Name :
KAIAO
Model Number :
KDP30H
Certification :
CE
Place of Origin :
CHINA
MOQ :
5
Payment Terms :
Western Union, T/T, L/C
Packaging Details :
CARTONS
Presure :
High
Pump material :
Cast iron
Power :
diesel fuel driven
Pressure :
High
Model :
KDP30H
Dimension (L*W*H)(mm) :
675*565*735
Description

Water pump
1. ISO&CE improved
2. Driven by strong KAIAO 4-stroke diesel engine
3. Bilobed wheel design
4. Full frame structure ensures the outstanding performance of the pump in extremely hard condition.

Diesel Water Pump(IRON) 3" High Pressure
with handles,and 2*9inch wheels
Model KDP30H
Diameter(mm) (inch) 80(3" )
Max. flow(m3/h) 47
Rated total head(m) 75
Max. suction head(m) 8
Rotational speed(rpm) 3600
Self-priming time(s/4m) 120
Pump shaft Steel
Pump housing cast iron
Impeller cast iron
connection type direct
Self-priming time(s/4m) 40
Engine model KA186FA
Engine type Single-cylinder, vertical, four-stroke,air cooled
Bore*stroke(mm) 86*72
Displacement (L) 0.418
Power (kW) 6.3/3600
Fuel consumption rate(g.kW/h) 281
Compression ratio 19
Lubrication system Pressure splash Type
Engine starting system Electric starter
Fuel oil model Summer:0#,Winter:-10#
Lube oil model SAE10W-30 (above CD grade)
Lube oil capacity (L) 1.1
Fuel tank capacity (L) 12.5
Dimension (L*W*H)(mm) 675*565*735
Net weight(Kg) 62
Gross weigt(Kg) 70
