1kw Copper Pipe Straightener Cutter, 16mm CNC Plasma Pipe Cutter
1kw Copper Pipe Straightener Cutter, 16mm CNC Plasma Pipe Cutter
1kw Copper Pipe Straightener Cutter, 16mm CNC Plasma Pipe Cutter
1kw Copper Pipe Straightener Cutter, 16mm CNC Plasma Pipe Cutter
1kw Copper Pipe Straightener Cutter, 16mm CNC Plasma Pipe Cutter
1kw Copper Pipe Straightener Cutter, 16mm CNC Plasma Pipe Cutter
1kw Copper Pipe Straightener Cutter, 16mm CNC Plasma Pipe Cutter
1kw Copper Pipe Straightener Cutter, 16mm CNC Plasma Pipe Cutter
Specifications
Brand Name :
OEM/ODM
Model Number :
Customized
Certification :
CE,ROHS ,ISO9001,ISO14001,
Place of Origin :
CHINA
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1-3 sets per month
Delivery Time :
20-25days
Packaging Details :
wooden packing
Name :
1kw Copper Pipe Straightener Cutter, CNC Flame Plasma Cutting Machine
Type :
Straightener
Voltage :
380V 50Hz
Power(W) :
1120
Tube Material :
Copper / Aluminum / Bundy tube
Dimension(L*W*H) :
2200 x 580 x 1000 mm
Weight :
500kgs
Application :
aluminium, stainless steel and bonded tubes
Description

1kw Copper Pipe Straightener Cutter, CNC Flame Plasma Cutting Machine

Specification

Parameters
Product brand OEM/ODM
Product model AD-6-16
Product voltage 380V
Product power 7.5KW
Straightening range 6-16mm
Straightening machine 5.5KW copper wire motor
Straightening speed 20m/min
Cut off range 6-16mm
Cut off the motor 2.2KW copper wire motor
Number of feed ports 6
The length of the shortest 300mm
Total Weight 800KG
Dimensions 2200 x 580 x 1000 mm

Production Description

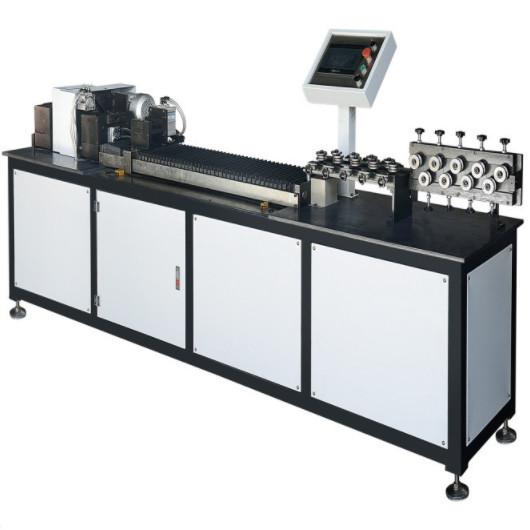

Copper aluminum bundy tube straightener and cutting machine is special designed for copper and aluminum tube process, which is mainly used for tube blanking before tube bending or welding process of condenser and evaporator.

Compare to normal design with two-half clamping die, we design the clamping die in three parts according to lathe chuck structure, which can minimize the tube distortion during cutting, and the clamping die changing / adjustment will be more easier.

Detailed image

1kw Copper Pipe Straightener Cutter, 16mm CNC Plasma Pipe Cutter

1kw Copper Pipe Straightener Cutter, 16mm CNC Plasma Pipe Cutter

1kw Copper Pipe Straightener Cutter, 16mm CNC Plasma Pipe Cutter

Main Features

◆ Three-part clamping die to minimize tube distortion, get smooth cutting end surface.
◆ High accuracy concentricity ensures to get good welding quality in following process.
◆ Chipless cutting with 360° rotary cutting and stretching with two points clamping.
◆ Straightening wheel Nylon and “U” shape rubber belt to avoid scratch on tube surface

Supply Ability

Supply Ability:20 Set/Sets per Month Automatic coil steel bundy aluminum copper tube pipe

Packaging & Delivery

Packaging Details:Coil steel bundy aluminum copper tube pipe cut to length machine with chipless clean cutting is packaged within wooden case.
Port:Coil steel bundy aluminum copper tube pipe cut to length machine with chipless clean cutting is delivered Shanghai
Lead Time : 30 days
1kw Copper Pipe Straightener Cutter, 16mm CNC Plasma Pipe Cutter
