P20 Continuous Methane Monitoring System

24/7 Remote Gas Leak Detection for Oil & Gas Facilities

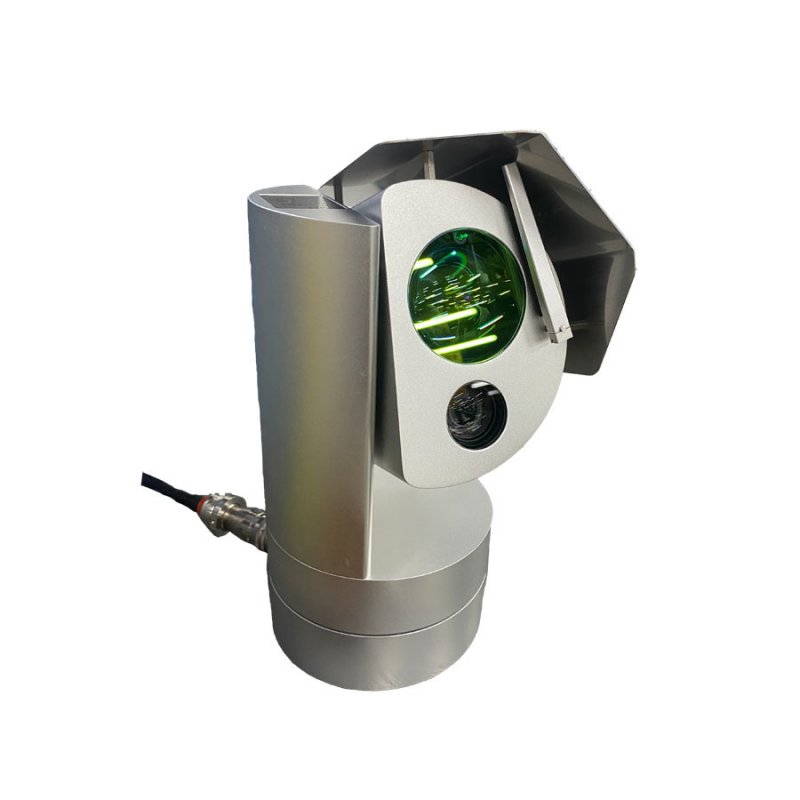

The AiLF P20 is a compact pan-tilt methane monitoring system designed for continuous, automated gas leak detection in oil & gas and other industrial environments.

Using TDLAS (Tunable Diode Laser Absorption Spectroscopy), the P20 performs remote methane measurement and can continuously monitor designated areas or inspection paths. Its integrated pan-tilt mechanism enables automated scanning, while the monitoring software provides real-time alarms, data monitoring, and inspection records.

With 20 W power consumption, IP68 protection, and an explosion-protected enclosure, the P20 is designed for long-term outdoor deployment and can support systems powered by solar energy and connected to backend platforms via 5G.

Key Features

• 24/7 continuous methane monitoring
• TDLAS laser detection technology
• Automated pan-tilt scanning
• 360° azimuth / ±90° elevation
• Detection range up to 150 m
• 3 ppm·m resolution
• 0.05 s response time
• 20 W low power consumption
• IP68 enclosure protection
• Explosion-protected design
• Stainless steel housing
• Supports solar power and 5G communication

Applications

The P20 is suitable for continuous methane monitoring in:

• Natural gas storage stations
• Oil & gas facilities
• Gas pipeline infrastructure
• Petrochemical facilities
• Industrial gas leak monitoring
• Remote and outdoor monitoring sites

Remote Monitoring & System Integration

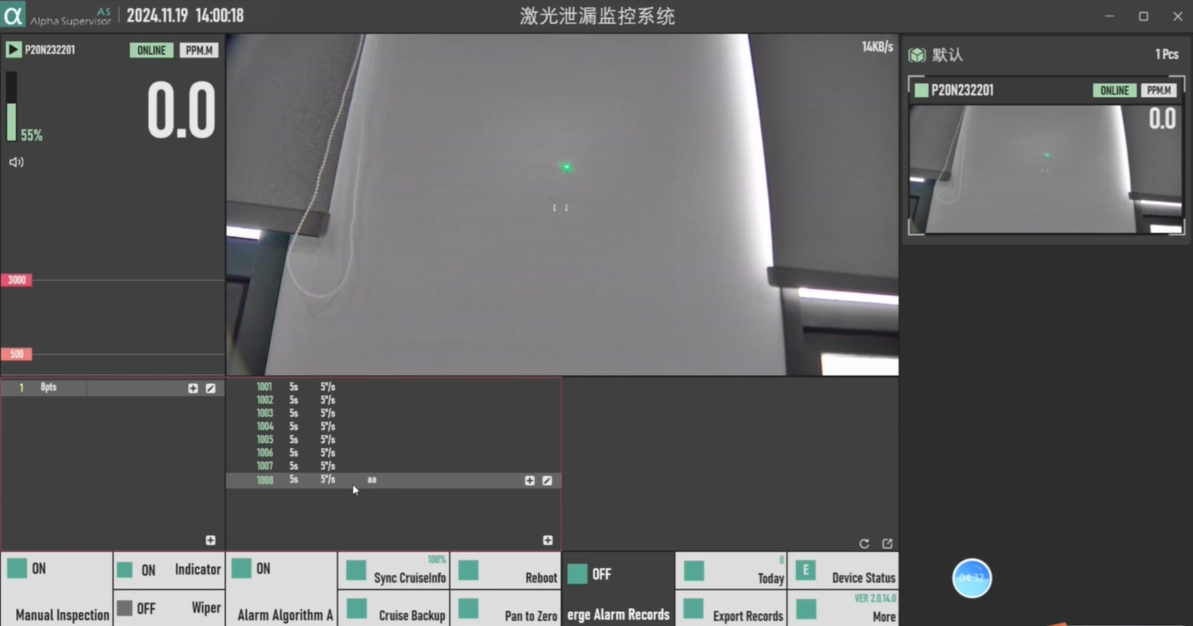

The P20 can be connected to a dedicated software platform for continuous monitoring, leak alarms, inspection tracking, and data management. Its low power consumption supports solar-powered deployments, while 5G connectivity enables remote transmission of monitoring data to backend systems.
