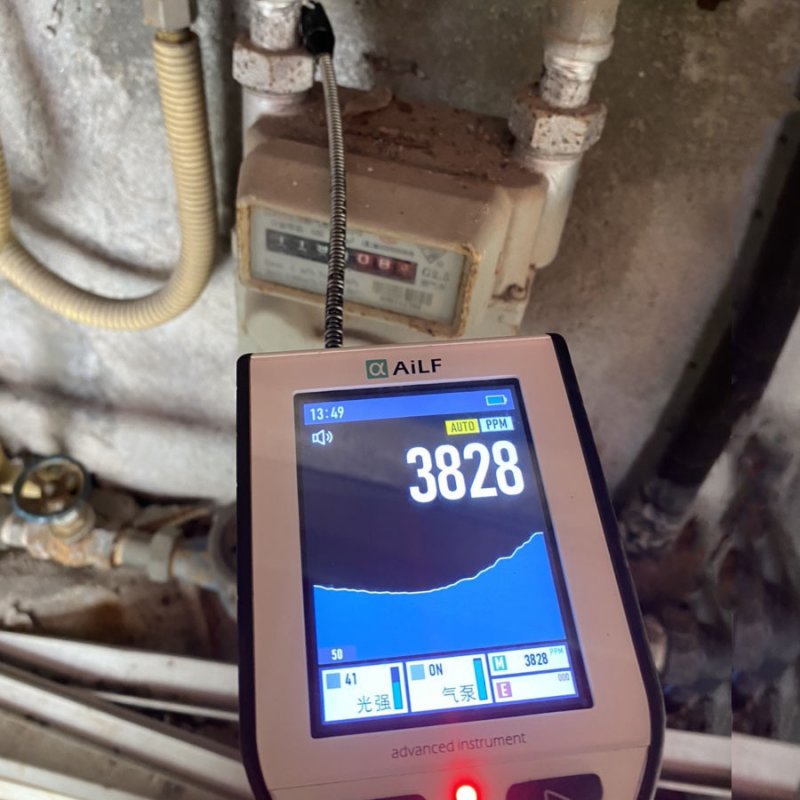

Self Calibrate Portable Methane Detector Handheld Gas Monitor For Petrochemical Plants
Self Calibrate Portable Methane Detector Handheld Gas Monitor For Petrochemical Plants
Self Calibrate Portable Methane Detector Handheld Gas Monitor For Petrochemical Plants
Self Calibrate Portable Methane Detector Handheld Gas Monitor For Petrochemical Plants
Specifications
Packaging Details :
38*33*18CM 3.6kg
Payment Terms :
T/T
Delivery Time :
5-7 Work Days
Certification :
ATEX
Charging Time :
4 hours
Display Unit :
PPM %LEL %VOL
Dimensions :
225mm x 82mm x 54mm
Detection Method :
TDLAS
Weight :
Approx. 0.56kg
Model Number :
C10F
Price :
$5000
Operating Temperature :
-20°C to 50°C
Power Supply :
Rechargeable lithium-ion battery
Alarm Type :
Audible and visual alarms
Humidity Range :
0-98% RH (non-condensing)
Response Time :
< 0.2 seconds
MOQ :
1
Detection Gas :
Methane (CH4)
Detection Range :
0-100%VOL
Place of Origin :
Shandong,China
Brand Name :
AiLF
Supply Ability :
300 Unit per Month
Battery Life :
10 hours continuous use
Description

Internal Pump Portable Laser Methane Detector Handheld Natural Gas Probe Laser Methane Leakage Detector

Description:

C10F Handheld portable Laser methane Leak detector is designed with internal pump and TDLAS technology. It has stable performance and high precision.

C10F handheld laser methane detector has good performance of full-range detection, supports readings of concentration in ppm, %LEL and %VOL.

The C10F handheld laser methane detector from AiLF Instruments is a compact, handheld Laser methane detection device designed for pipeline inspections, petrochemical plants, and industrial monitoring. Using advanced tunable diode laser absorption spectrum technology, the C10F handheld laser methane detector provides fast, accurate leak detection at full ranges 0-100% VOL, helping professionals improve safety, reduce costs, and protect the environment.

Auto

With the built-in gas reference, C10F handheld laser methane detector can continuously self-calibrate during operation to ensure accurate detection. Laser technology is superior to the traditional sensor without any failure or getting disabled, it's truly realized self-calibration(calibration free).

APP
Support Bluetooth connection with inspection app AlphaOne
Support access to external or user's information platform

Water and Dust Resistant, Grade IP66
Applicable to explosive environment, Grade EXib IIC T3
Capable of adapting to various working conditions like indoor,wild field,station,pipelines with reliability,durability,safety and stability.
Long endurance, fast charging, and Type C interface working with low temperature resistance battery pack can ensure a-day-long
working even in extremely cold regions.

Through the rear EZG gas interface, C10 can be connected with the accessories like gooseneck and sampling probe in a convenient and fast

manner for replacing and checking filter.
Model C10F Detection Gas Methane(Ch4)
Measure Principle Lase Absorption Spectrum Display Unit PPM,%LEL,%VOL
Static Detection Limit 1 PPM Explosion-Proof Grade
Exib IIC T3 Gb
Response Time 0.2s
Operating Temperature
 -20~50ºC
Concentration Range 0~100%VOL Operating Humidity <98%RH,No condensation
Enclosure Protection Glass IP66 Main Unit Dimension 225x82x54mm(excluding probe)
Power supply and endurance Lithium battery>10h Main Unit Weight 0.56kg
Accessories
 Goosenneck Probe Optional Accessories Sampling probe,Portable bag

Application:
Natural Gas Leak Detection:
Identifying leaks in pipelines, storage tanks, and other natural gas infrastructure.
Industrial Monitoring:
Detecting leaks in chemical plants, refineries, and other industrial facilities.
Environmental Monitoring:
Measuring methane emissions from various sources, including landfills and agricultural activities.
