Mechanical Electric Pallet Jack Forklift
Mechanical Electric Pallet Jack Forklift
Mechanical Electric Pallet Jack Forklift
Mechanical Electric Pallet Jack Forklift
Mechanical Electric Pallet Jack Forklift
Mechanical Electric Pallet Jack Forklift
Mechanical Electric Pallet Jack Forklift
Mechanical Electric Pallet Jack Forklift
Mechanical Electric Pallet Jack Forklift
Mechanical Electric Pallet Jack Forklift
Specifications
Brand Name :
Yanming
Model Number :
WCT15QA
Certification :
ISO,CE,EGS
Place of Origin :
China
MOQ :
1 set
Payment Terms :
T/T,L/C
Delivery Time :
5-20 work days as per order volume
Packaging Details :
pallet packing for export
Price :
Negotiable
Supply Ability :
600 Units/Month
Model NO. :
WCT15QA
Type :
Electric Forklift
Power :
DC Motor
Load Capacity :
1500kg
Fuel :
Electric
Load center :
600mm
Lift height :
190mm
Condition :
New
Travel Speed :
4/4.2 Km/H
Rear Wheel Base :
388/518mm
Net Weight :
130kg
Steering :
Mechanical
Battery :
Lithium 24V 20ah/30ah
Lift Motor :
850W
Max.Lifting Height :
190mm
Gradient,Laden/Unladen :
5/15%
Drive Motor :
750W
Lowered Fork Height :
75/85
Transport Package :
2 PCS in one wooden pallet
Specification :
1665*680*1300mm
Trademark :
AIDA
Origin :
China
HS Code :
8427109000
Package Size :
1700 * 700 * 1300cm
Package Gross Weight :
140kg
Shipping Cost :
To be negotiated
After-sales Service :
Support
Warranty :
1 Year
Cab Location :
No
Customization :
Available | Customized Request
Description

Product Description

1.5 Ton Fully Electric Pallet Jack Truck Lithium Battery Lift 190mm
Electric pallet trucks, also known as electric pallet jacks or electric pallet lifters, have a wide range of application fields in various industries.
Feature as below:

1) The fork is integrally stamped, which is light weight and higher load capacity;
2) Integral rocker arm design, stable driving and high structural strength;
3) Optional floating balance wheel, the truck walks more stably;

4) Compact design and structure, save store space and easy to carry on
5) The whole truck has a compact structure, integrated electrical layout, and easy maintenance.


Product Adavantage


Multi-functional Handle

  • With magnetic key to unlock, simple and convenient.
  • The turtle button makes vehicle be moved while handle in
  • vertical position,which helps to easily operate in narrow aisle,especially in elevator or VAN truck.
  • With horn button for easier operation

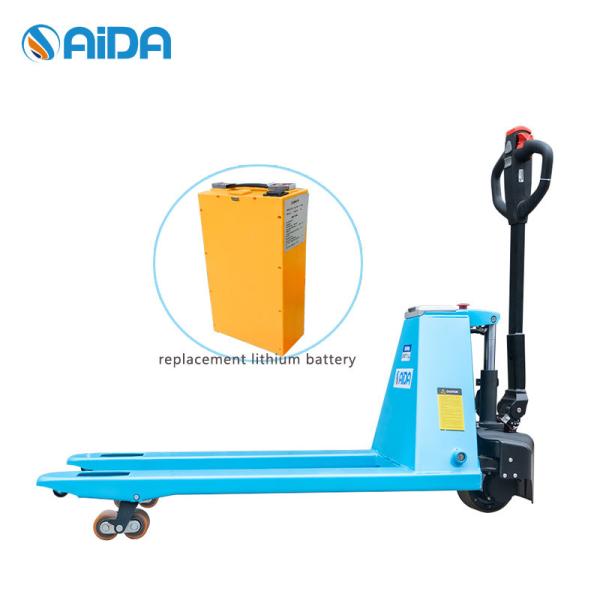

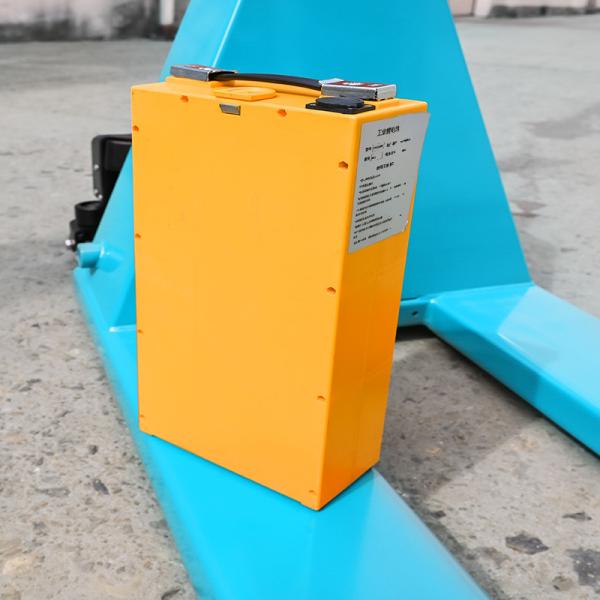

Lithium Battery

  • Quick charging
  • Lithium battery maintenace-free
  • Battery box can be take out and replace with back-up battery
  • Built-BMS protection system for shortcircuit overload and overcurrent.

Opional balance wheels improve safety and stability during travelling or turning.

Technical Parameters

Model WCT15QA
Load capacity 1500kg
Rear Wheel Base 388/518mm
Max.lifting height 190mm
Lowered fork Height 75/85mm
Overall length 1665mm
Overall width 550mm
Travel speed 4/4.2 km/h
Gradient,Laden/unladen 5/15%
Drive motor 750w
Lift motor 850w
Battery Lithium 24V 20Ah

Structure Details

Mechanical Electric Pallet Jack ForkliftMechanical Electric Pallet Jack ForkliftMechanical Electric Pallet Jack ForkliftMechanical Electric Pallet Jack ForkliftMechanical Electric Pallet Jack ForkliftMechanical Electric Pallet Jack Forklift
