Specifications
Brand Name :
Yanming
Model Number :
XD-5301
Certification :
ISO,CE,EGS
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T,L/C
Supply Ability :
600 Units/Month
Delivery Time :
5-20 work days as per order volume
Packaging Details :
pallet packing for export
Model NO. :
XD-5301
Drive Motor :
800W
Lift Motor :
Hydraulic
Overall Width :
1600-3000mm
Condition :
New
Overall Length :
1670mm
Turning Radius :
1200mm
Groung Clearance :
25mm
Transport Package :
6PCS in One Pallet
Specification :
1360*740mm
Trademark :
AIDA
Origin :
China
HS Code :
84312090
After-sales Service :
Support
Warranty :
1 Year
Type :
pallet truck
Load Capacity :
2T
Customization :
Available | Customized Request
Description

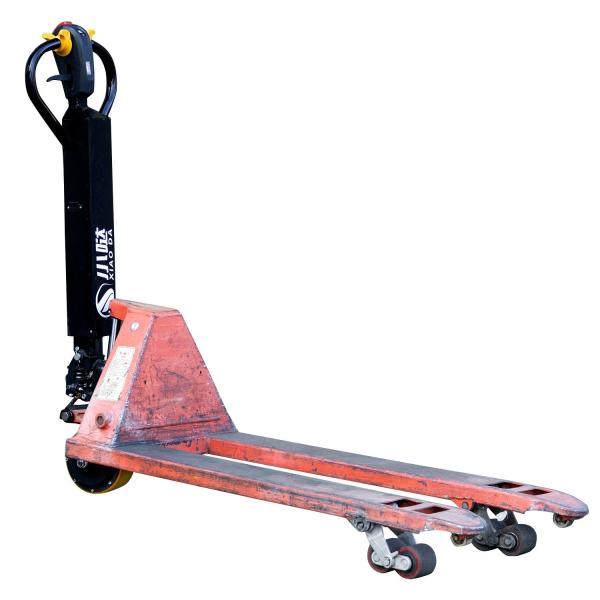

The power handle kit is a retrofit module that integrates a driving motor, wheel, accelerator, controller, cylinder, lithium battery, and harness assembly. It is designed to effortlessly convert an old manual pallet truck into an fully electric power pallet truck withinminutes, all at a low cost.

Experience the Convenience and Efficiency of AIDA s Power Handle Kit for Pallet Trucks

What are the advantages?

  • Compact design with small size and light weight
  • Lithium battery, large capacity, fast charging
  • Multifunctional handle with turtle speed function and battery display
  • Easy maintenance: module assembly easy for maintenance and replacement
  • Installed with integrated power handle kit, can be disassemble for replacement and maintenance easily
  • In-Wheel-Motor with high performance and adaptability for different kind and size of old pallet trucks
  • Customization available: custom-made connection section is available for modification of special hand pallet trucks.
  • BrandAIDAUnit
    ModelXD-5301
    PowerElectric
    Operation wayWalkie
    electric moving and electric lifting/lowering
    Load capacity2000kg
    load centre distance600mm
    Self weight42kg
    Max.ground clearance200mm
    speed,loaded/unladen4.8/5.2km/h
    Gradeability,loaded/unladen3/7%
    Motor0.8kW
    BatteryLi-on 48V 15AhV/Ah
  • (1) Measure dimensions as below to make sure compatible with the Power handle kit
  • Experience the Convenience and Efficiency of AIDA s Power Handle Kit for Pallet Trucks
  • Experience the Convenience and Efficiency of AIDA s Power Handle Kit for Pallet TrucksExperience the Convenience and Efficiency of AIDA s Power Handle Kit for Pallet TrucksExperience the Convenience and Efficiency of AIDA s Power Handle Kit for Pallet Trucks
  • (2)Disassemble the the manual handle rod from fork frame of the old manual pallet truck, keep the original fork frameExperience the Convenience and Efficiency of AIDA s Power Handle Kit for Pallet Trucks
  • (3) Assemble the the Power handle kit to the original fork frame
  • Experience the Convenience and Efficiency of AIDA s Power Handle Kit for Pallet Trucks
