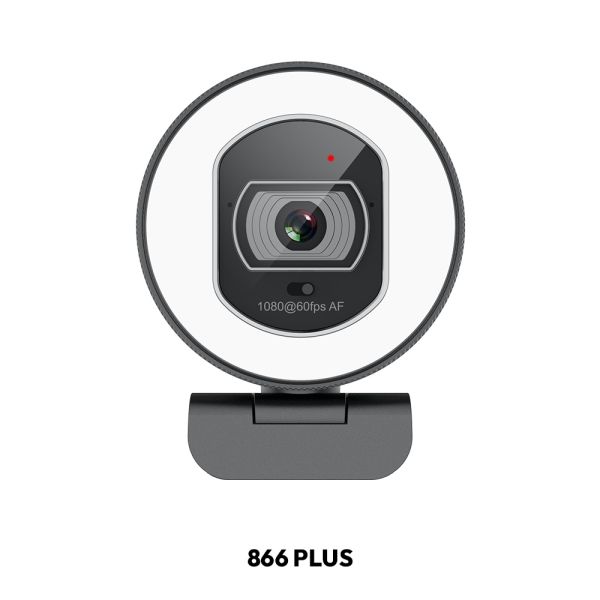

Touch Ring Light Auto Focus Webcam USB Web Camera With Remote Control
Touch Ring Light Auto Focus Webcam USB Web Camera With Remote Control
Touch Ring Light Auto Focus Webcam USB Web Camera With Remote Control
Touch Ring Light Auto Focus Webcam USB Web Camera With Remote Control
Specifications
Brand Name :
Xingzengcai
Model Number :
866PLUS
Certification :
CE,RoHS,FCC
Place of Origin :
China
MOQ :
1000 pieces
Price :
USD 17.83~16.90 / pieces
Payment Terms :
T/T,L/C
Supply Ability :
100000piece/Month
Delivery Time :
30-45 working days
Packaging Details :
Neutral/Customized Color Box
Product Model :
866 PLUS
Capture Frame Rate :
2K@30fps
Focus System :
USB 2.0
Illumination Control :
Auto Focus
Audio Input :
2 Channel Stereo Noise Canceling
External Controller :
Multifunction Remote Control
Lens Construction :
5E (IR650)
Output Formats :
YUY2 and MJPEG
Connection Type :
USB 2.0
Security Hardware :
Privacy Cover Switch
Description
Core Performance & Connectivity
  • The 866 PLUS operates as a specialized video capture device driven by the FH8852V200 central processing unit.
  • This hardware supports continuous video transmission at a maximum frame rate of 2K at 30 frames per second, processing visual data through standard YUY2 and MJPEG output formats.
  • The device relies on a USB 2.0 interface for connectivity, drawing a maximum working current of 460mA under a standard DC5V power supply.
  • System compatibility is extensive, permitting operation across Windows 7, 8, 10, and 11, alongside Mac OS, Linux, Android, and Ubuntu environments without the need for additional software.
Optical Specifications
  • Optical performance is dictated by a 1/2.8-inch sensor size paired with a structural lens construction that integrates 5E and IR650 components.
  • The camera achieves a highest effective pixel output of 1080 horizontal by 1080 vertical, with an individual pixel size measuring 2.9 micrometers by 2.9 micrometers.
  • Light intake is regulated by an F/N 2.0 aperture and a dynamic range capability of 100dB, ensuring balanced exposure.
  • The spatial field of view is structurally fixed at a diagonal angle of 78 degrees, a horizontal angle of 65.5 degrees, and a vertical angle of 39.9 degrees, maintained by an active Auto Focus (AF) system.
Physical Features
  • Physical hardware features include a multi-functional beauty light integrated into the front chassis.
  • This module utilizes a touch interface combined with a rotational mechanism to offer three distinct color temperatures and a stepless dimming function for precise illumination control.
  • For audio data, the device is equipped with a 2-channel stereo noise-canceling microphone, configured to isolate primary acoustic inputs.
  • A physical privacy cover switch is also integrated into the housing to manually obstruct the lens sensor.
Remote Control & Operation
  • Remote operability is a primary function, facilitated by an included 18-button remote control.
  • This unit allows operators to remotely toggle the microphone state and switch between 50Hz and 60Hz operating frequencies.
  • The remote provides extensive structural manipulation commands, including directional tilt controls for up, down, left, and right movements, as well as a dedicated roll function.
  • Optical commands accessible via the remote include zoom in, zoom out, shifting between Auto Focus (AF) and Manual Focus (MF), and utilizing specific macro and far focus parameters.
Environmental & Handling
Strict environmental and handling specifications are required for the device.
  • The working temperature must be maintained between -20 and 60 degrees Celsius, while storage is rated for -20 to 70 degrees Celsius.
  • The relative humidity during operation must remain less than or equal to 80 percent.
  • Furthermore, anti-static processing must be observed during transport and assembly, and the device chassis must be protected from heavy pressure during installation.
Video Resolution 2560*1440 1920x1080
Frame Rate 2K@30fps ,1080P@30fps
Image sensor 1/2.8 inch
Dynamic range HDR mode 105db
AI No support
Format MJPG, YUY2, H.264
Lens 5E (4+1IR)
Aperture F value F/N2.0
View Angle 78° (no distortion or aberration)
Focal length 7cm～∞
Private shutter Built-in exclusive patented design privacy shutter
Focus method Autofocus(AF);
MIC -36db+ high sensitivity,65dBsignal-to-noise ratio, 2-channel stereo noise reduction dual MIC, 3m long-distance pickup clear and natural；
Tripod interface available to use camera tripod, suitable for desktop placement, laptop, LCD or CRT monitor
Port UVCStandard driverless Type A USB2.0 port (support for USB3.0)
LED Light Rotating infinitely bright degree adjustment, touch control 3-color light source selection, according to the chat environment for automatic fill light, let chat become more warm
Remote Control 18-button remote control 360degree borderless (image zoom in/out, up/down/left/right; image brightdegree adjustment; one-touch image off; one-touch mute)
Tripod Ergonomic 360 degree free swivel adjustment for stability and comfort
USB cable 1.6 m magnetic ring anti-interference shielded cable, video data transmission more smoothly and more stable
System Compatible 2.4GHZ Intel Core2 DuoProcessor or higher, 2GB of ram or higher, USB2.0 port (USB3.0 is required for 4K products)；Windows 7 / 8 / 10 ； Mac OS 10.6 or above；Chrome OS 29.0.1547.70 or above； Linux 2.6.24 or above；Ubuntu® Linux 10.04 or above
