SSB Triple Layer High Wear Potential Paper Making Cloth KRAFT SSB60210WM52-430CFM – Open Structure SSB Fabric with Medium CD Yarns & Easy Showering
SSB Triple Layer High Wear Potential Paper Making Cloth KRAFT SSB60210WM52-430CFM – Open Structure SSB Fabric with Medium CD Yarns & Easy Showering
SSB Triple Layer High Wear Potential Paper Making Cloth KRAFT SSB60210WM52-430CFM – Open Structure SSB Fabric with Medium CD Yarns & Easy Showering
SSB Triple Layer High Wear Potential Paper Making Cloth KRAFT SSB60210WM52-430CFM – Open Structure SSB Fabric with Medium CD Yarns & Easy Showering
Specifications
Caliper (mm) Critical :
0.870
Break Strength :
≥900 N/cm
Packaging Details :
Standard export ply-wood case
Structure :
SSB Triple Layer
Fabric Color :
Light Green, Light Blue
Pattern description :
2/10 Shed
Basis Weight (g/m²) :
710
CMD Yarns Bottom :
0.40mm 17.4 /cm PET/PA
Fiber Support Point :
650 /cm²
Price :
inquiry
Drainage Index :
26.4
CMD Yarns Top :
0.17mm 34.8 /cm PET/PA
Air Permeability :
400 CFM @ 125 Pa
Void Volume :
716 ml/m² (51.3%)
Caliper (mm) New :
1.250
Fiber Support Index :
130
Paper Side Open Area :
32.1%
Payment Terms :
L/C,D/A,D/P,T/T
MD Yarns Top :
0.17mm 25.0 /cm PET
Brand Name :
ATMC
MOQ :
1pc
MD Yarns Bottom :
0.25mm 25.0 /cm PET
Elongation(50N/cm) :
≤0.40%
Description
SSB Triple Layer High Wear Potential Paper Making Cloth KRAFT SSB60210WM52-430CFM – Open Structure SSB Fabric with Medium CD Yarns & Easy Showering

The KRAFT SSB60210WM52-430CFM is a triple layer forming cloth that uses two sheds on the paper side and ten sheds on the wear side. The fine and even paper side provides good fiber support to achieve uniform formation and consistent profiles. Long floats on the wear side, paired with a 3:2 CD shute ratio, allow the integration of medium and coarse CD yarns, significantly improving wear life and machine direction stability. Two MD thread systems ensure high CD stability and a rigid construction. An open structure enables high dewatering capacity and easy showering. This fabric excels in combining sheet support, drainage, and wear potential for paper machine applications.


Key Features
  • Long float design on wear side extends running potential.
  • Good fiber support achieves uniform paper formation with minimal marking.
  • Open fabric structure enables rapid dewatering and easy shower cleaning.


Product Parameters
Product Name Forming Fabric KRAFT SSB60210WM
Material Polyester monofilament
Function Paper Machine
Application Light GSM Kraft Paper, Wrapping Paper, etc.
Technical SSB Triple Layer forming fabric
Width Customized
Weight Customized
Fabric Color Customized
Product Images
SSB Triple Layer High Wear Potential Paper Making Cloth KRAFT SSB60210WM52-430CFM – Open Structure SSB Fabric with Medium CD Yarns & Easy Showering SSB Triple Layer High Wear Potential Paper Making Cloth KRAFT SSB60210WM52-430CFM – Open Structure SSB Fabric with Medium CD Yarns & Easy Showering

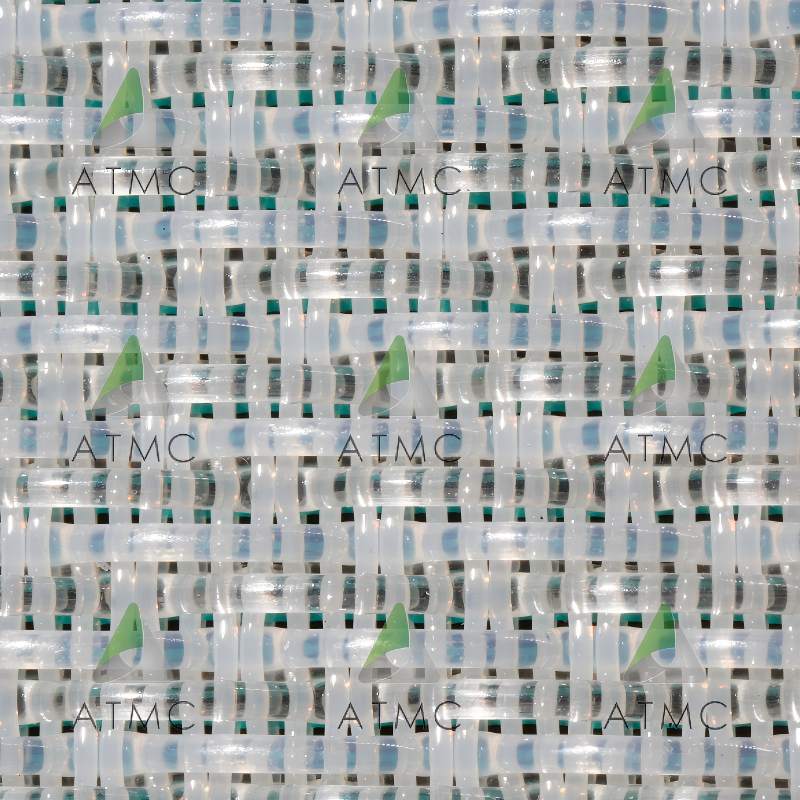

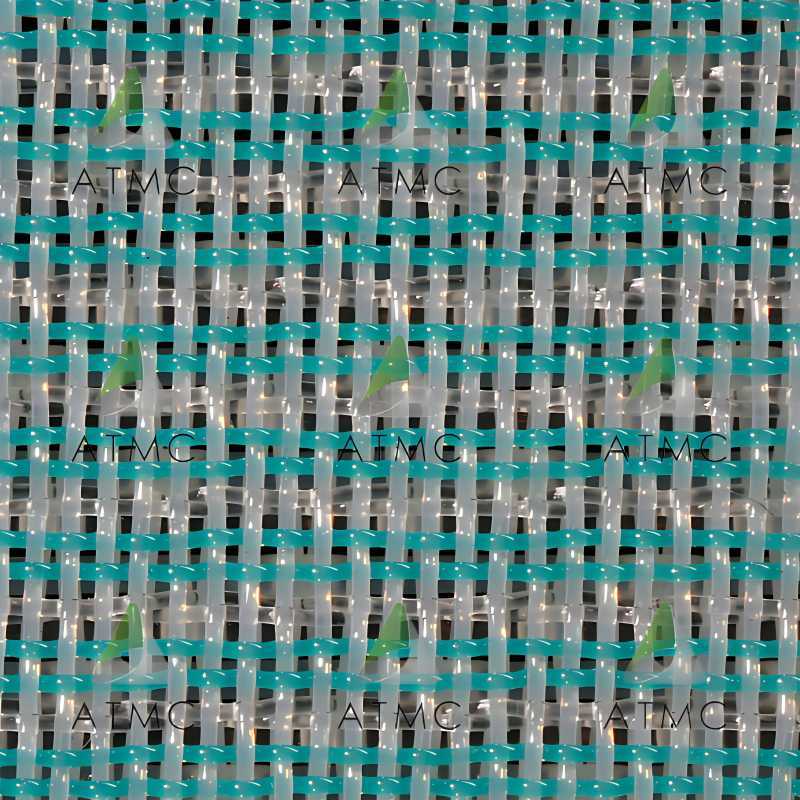

Top Side View Bottom Side View
Application
Light Weight Kraft, Wrapping and Packaging Papers, Board Grades filler layer, under-top layer or back layer, etc
