SSB Triple Layer Forming Fabric KRAFT SSB60210WM57-380CFM for Paper Making – Fine Sheet Side & Long Float Wear Side for High Drainage
SSB Triple Layer Forming Fabric KRAFT SSB60210WM57-380CFM for Paper Making – Fine Sheet Side & Long Float Wear Side for High Drainage
SSB Triple Layer Forming Fabric KRAFT SSB60210WM57-380CFM for Paper Making – Fine Sheet Side & Long Float Wear Side for High Drainage
SSB Triple Layer Forming Fabric KRAFT SSB60210WM57-380CFM for Paper Making – Fine Sheet Side & Long Float Wear Side for High Drainage
Specifications
Brand Name :
ATMC
MOQ :
1pc
Price :
inquiry
Payment Terms :
L/C,D/A,D/P,T/T
Delivery Time :
5-8 working weeks
Packaging Details :
Standard export ply-wood case
Structure :
/
Pattern Description :
/
Mesh × Count (l/cm) :
/
Warp Diameter (mm) :
/
Weft Diameter (mm) :
/
Warp Material :
/
Air Permeability :
/
Caliper (mm) :
/
Elongation(50N/cm) :
/
Break Strength :
/
Fiber Support Index (FSI) :
/
Drainage Index (DI) :
/
Open Area :
/
Fabric Color :
/
Description
SSB Triple Layer Forming Fabric KRAFT SSB60210WM57-380CFM for Paper Making – Fine Sheet Side & Long Float Wear Side for High Drainage
KRAFT SSB60210WM57-380CFM adopts a two‑shed paper side combined with a ten‑shed wear side in an SSB triple layer configuration. The fine forming side delivers even profiles and consistent fiber support, which promotes uniform sheet formation. On the wear side, long floats are arranged with a 3:2 CD shute ratio between forming and wear layers. This ratio permits the use of medium and coarse CD yarns, enhancing wear resistance and operational stability. Dual MD thread systems contribute to high cross‑directional rigidity. The fabric’s open structure supports aggressive dewatering while allowing easy showering. This model provides a reliable balance of sheet support, drainage capacity, and wear life for modern paper machines.
Key Features
  • Paper side adopts two‑shed design for enhanced sheet formation.
  • Wear side features ten‑shed construction to maximize service life.
  • Fine and even paper side promotes consistent profile uniformity.


Product Parameters
Product Name Forming Fabric KRAFT SSB60210WM
Material Polyester monofilament
Function Paper Machine
Application Light GSM Kraft Paper, Wrapping Paper, etc.
Technical SSB Triple Layer forming fabric
Width Customized
Weight Customized
Fabric Color Customized
Product Images
SSB Triple Layer Forming Fabric KRAFT SSB60210WM57-380CFM for Paper Making – Fine Sheet Side & Long Float Wear Side for High Drainage SSB Triple Layer Forming Fabric KRAFT SSB60210WM57-380CFM for Paper Making – Fine Sheet Side & Long Float Wear Side for High Drainage

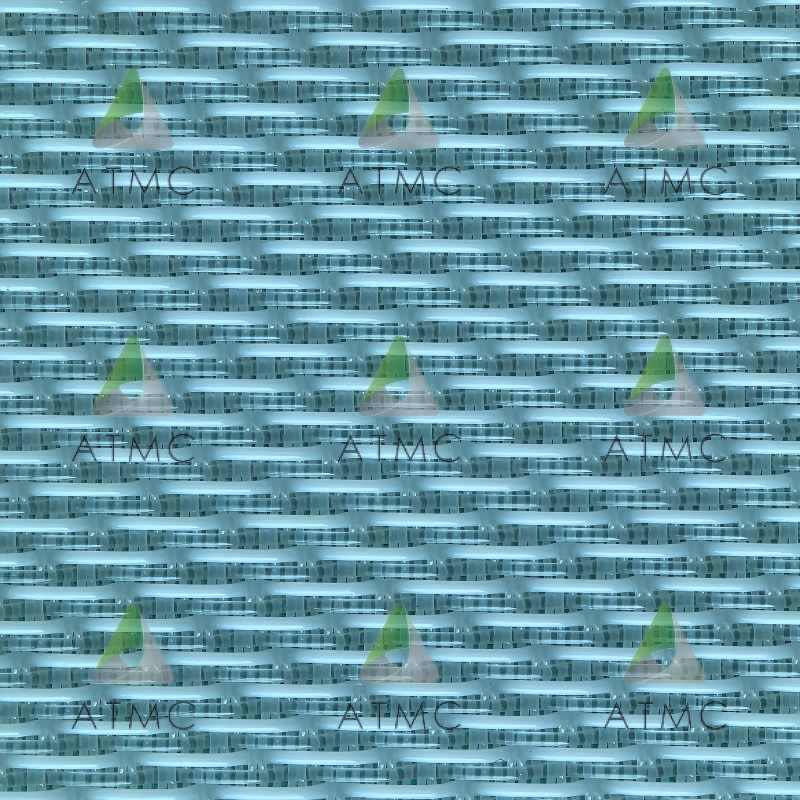

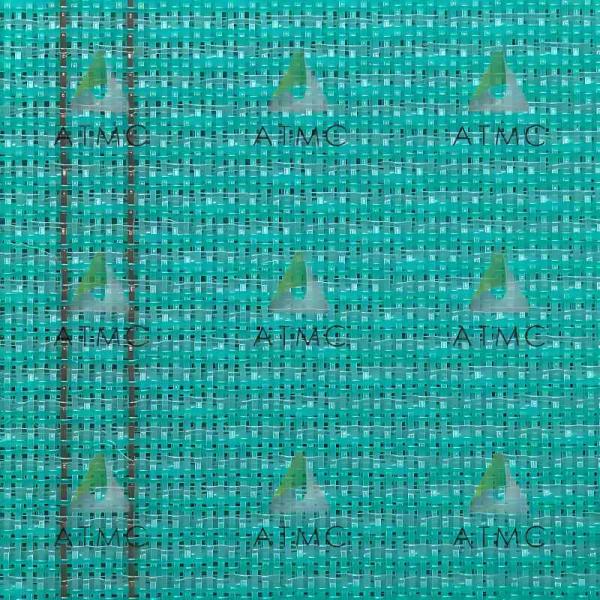

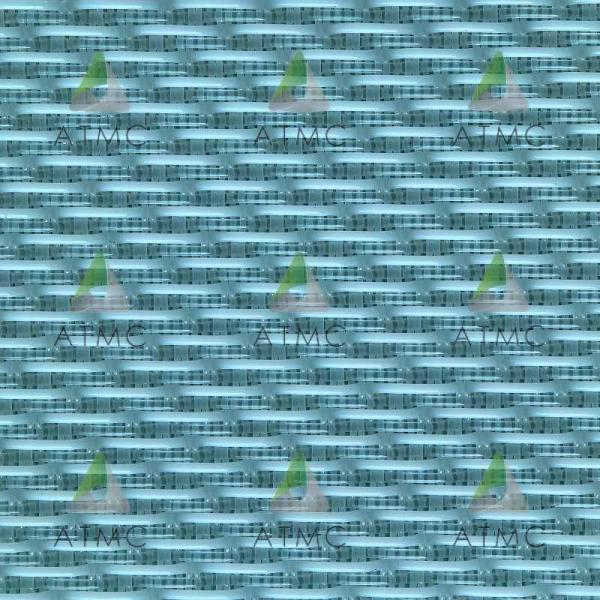

Top Side View Bottom Side View
Application
Light Weight Kraft, Wrapping and Packaging Papers, Board Grades filler layer, under-top layer or back layer, etc
SSB Triple Layer Forming Fabric KRAFT SSB60210WM57-380CFM for Paper Making – Fine Sheet Side & Long Float Wear Side for High Drainage SSB Triple Layer Forming Fabric KRAFT SSB60210WM57-380CFM for Paper Making – Fine Sheet Side & Long Float Wear Side for High Drainage
