Double Layer DLR2404 Dryer Fabric for Paper Making Machine with Double Layer Structure Provides High Permeability, Excellent Dimensional Stability and Strong Abrasion Resistance for Dryer Section
Double Layer DLR2404 Dryer Fabric for Paper Making Machine with Double Layer Structure Provides High Permeability, Excellent Dimensional Stability and Strong Abrasion Resistance for Dryer Section
Specifications
Packaging Details :
Standard export ply-wood case
MD Yarns Bottom :
/
Break Strength :
≥1200 N/cm
Structure :
Double Layer
Caliper (mm) Critical :
/
Air Permeability :
750 CFM, 12000m³/m²h
Drainage Index (DI) :
/
Void Volume :
/
MOQ :
1pc
Fiber Support Index (FSI) :
/
Pattern description :
4 shed
Caliper (mm) New :
2.10
Elongation (50N/cm) :
/
MD Yarns Top :
/
CD Yarns Bottom :
/
Basis Weight (g/m² ) :
1200
Fabric Color :
Red, White
Price :
inquiry
Payment Terms :
L/C,D/A,D/P,T/T
Paper Side Open Area :
/
Brand Name :
ATMC
Fiber Support Point (SP) :
/
CD Yarns Top :
/
Description

Double Layer DLR2404 Dryer Fabric for Paper Making Machine with Double Layer Structure Provides High Permeability, Excellent Dimensional Stability and Strong Abrasion Resistance for Dryer Section


The Dryer Fabric DLR2404 series dryer fabric is a conventional double layer design manufactured with round polyester machine direction yarns and round cross machine direction yarns. This structure provides excellent strength, dimensional stability and high air permeability, making it suitable for efficient drying applications in modern paper making machines. The monofilament fabric construction offers strong durability, effective on-machine cleaning and reliable operating performance.

Benefits and Features

  • Double layer structure with high strength.
  • Excellent dimensional stability during operation.
  • High permeability for efficient drying performance.
  • High abrasion resistance for longer service life.
Product Images
Double Layer DLR2404 Dryer Fabric for Paper Making Machine with Double Layer Structure Provides High Permeability, Excellent Dimensional Stability and Strong Abrasion Resistance for Dryer Section Double Layer DLR2404 Dryer Fabric for Paper Making Machine with Double Layer Structure Provides High Permeability, Excellent Dimensional Stability and Strong Abrasion Resistance for Dryer Section

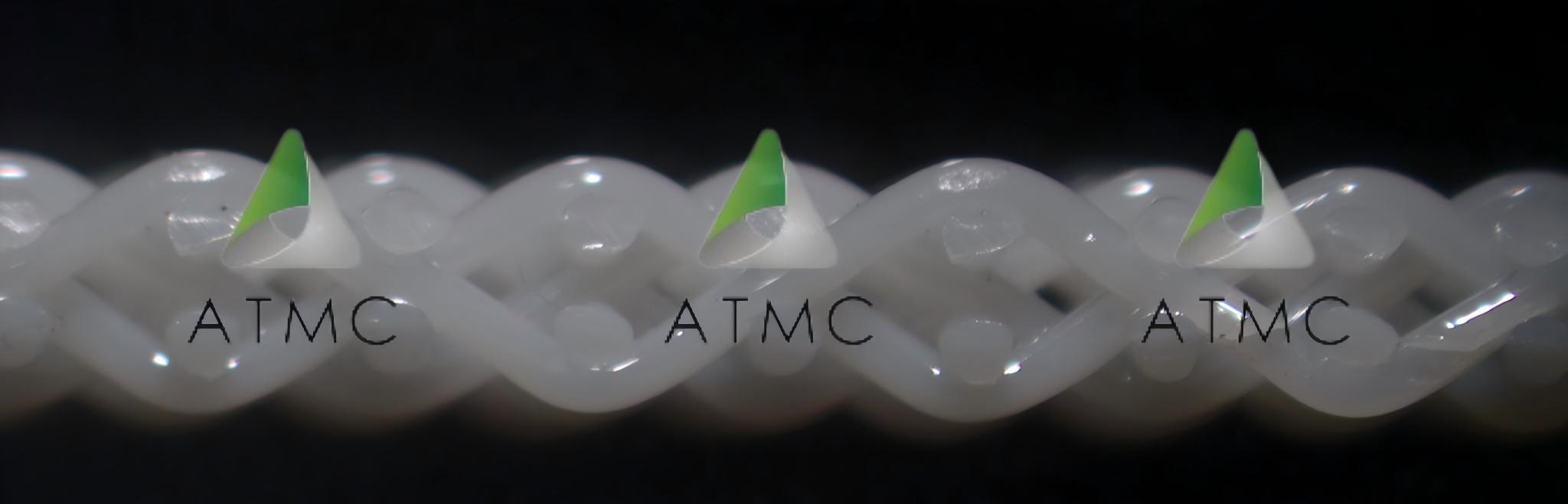

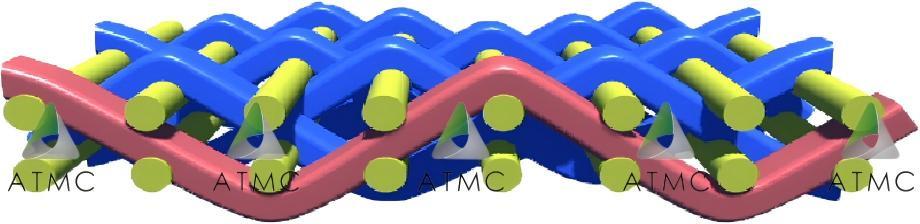

3D MD Contour MD Contour
Double Layer DLR2404 Dryer Fabric for Paper Making Machine with Double Layer Structure Provides High Permeability, Excellent Dimensional Stability and Strong Abrasion Resistance for Dryer Section

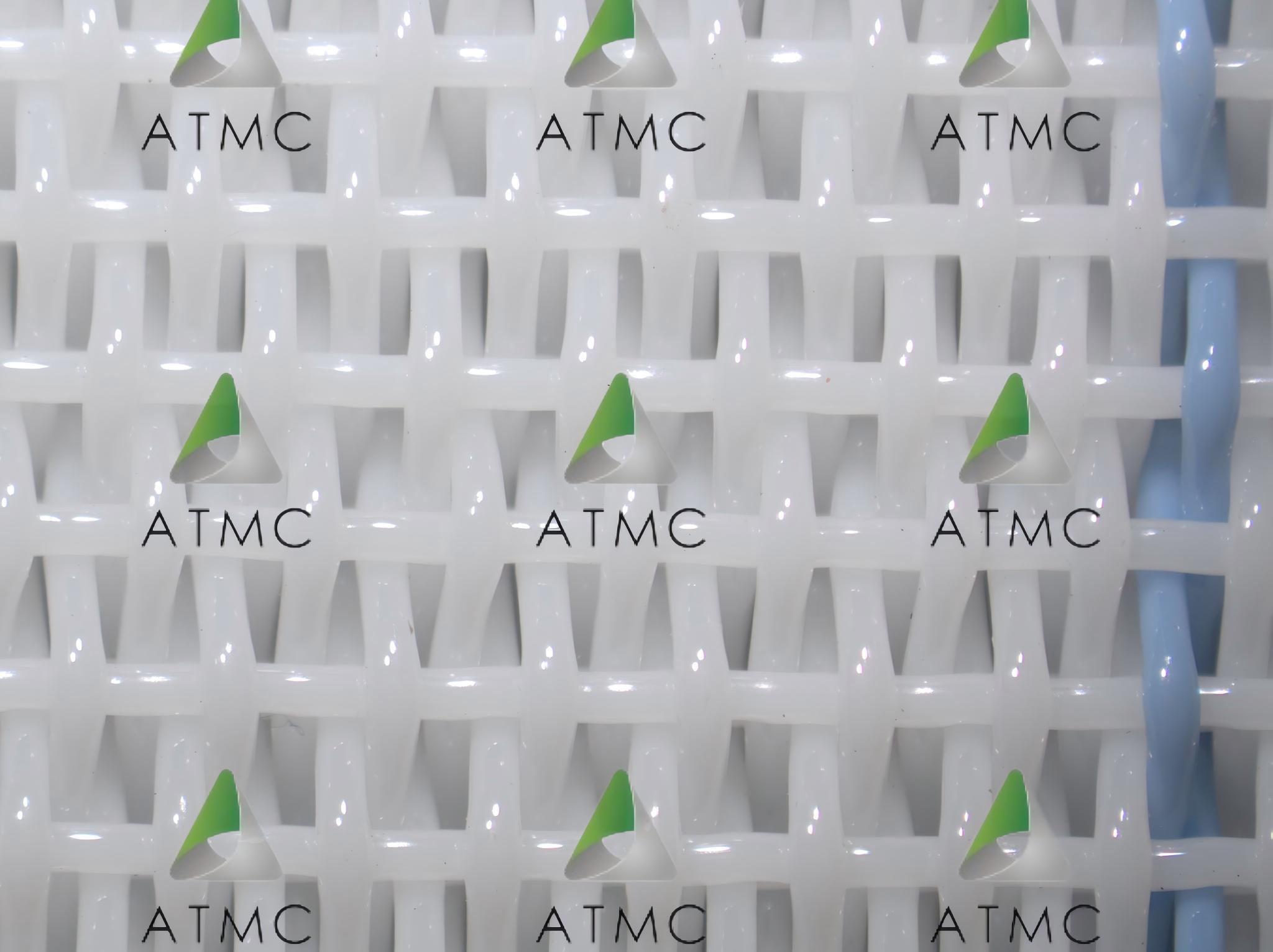

Paper Side








Applications
All Grades Paper and Any Dryer Section.
Double Layer DLR2404 Dryer Fabric for Paper Making Machine with Double Layer Structure Provides High Permeability, Excellent Dimensional Stability and Strong Abrasion Resistance for Dryer Section
