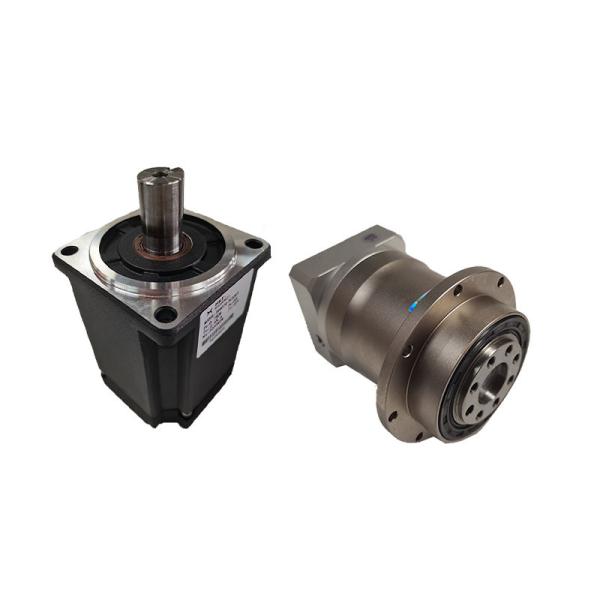

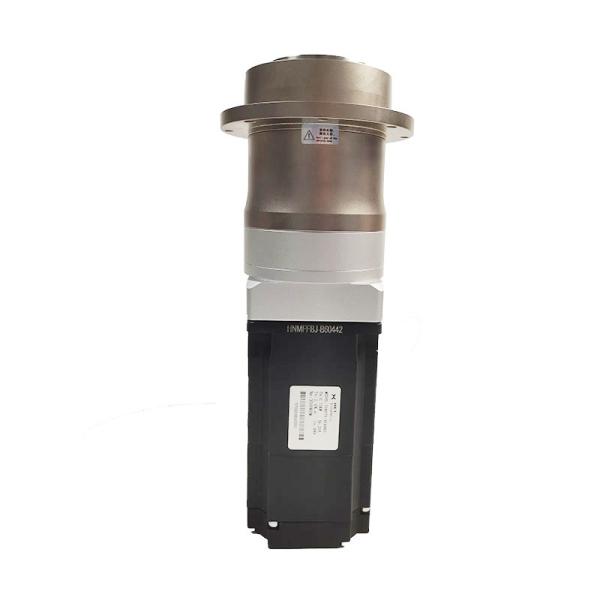

Custom 390N AGV Drive Unit 750W Servo Motor For Automation
Custom 390N AGV Drive Unit 750W Servo Motor For Automation
Custom 390N AGV Drive Unit 750W Servo Motor For Automation
Custom 390N AGV Drive Unit 750W Servo Motor For Automation
Specifications
Brand Name :
HKT-Robot
Model Number :
HKTLH064A-L2 TD8075-SCABK5
Place of Origin :
China
Certification :
CE
MOQ :
1
Price :
Negotiable
Packaging Details :
Carton
Delivery Time :
1-4weeks
Payment Terms :
T/T
Brake :
With Brake
Flange :
80*80mm
Encoder :
Absolute Value
Rated Power :
750W
Max Radial Force :
500N
Max Axial Force :
390N
Description

Flange 80*80mm AGV Drive Unit Rated Power 750W for Motor Torque

Product Description:

The AGV Drive Unit is a powerful and reliable drive unit designed for the automation of industrial machinery. It is equipped with high-precision encoder for absolute value operation, with a rated power of 750W, it provides reliable operation with maximum radial force of 500N and maximum axial force of 390N. The drive unit is comprised of a gearbox with two wheel motors, each providing motor torque that enables great acceleration and maximum speed. It is ideal for transportation and handling of materials in industrial environments.

Features:

1.Vibration Damping: Designed to reduce vibrations during operation, ensuring smoother and more stable motion, which is especially important for delicate or sensitive cargo.

2.Wide Operating Temperature Range: Capable of effectively working within a broad temperature range, making it suitable for industrial environments with various climate conditions.

3.Corrosion Resistance: Composed of materials and coatings that provide corrosion resistance, enhancing the gearbox's lifespan and reliability, particularly in harsh or corrosive environments.

4.Overload Protection: Equipped with overload protection mechanisms to prevent overloading and internal component damage, ensuring the gearbox's longevity.

Planetary Gearbox Parameters:

Model Unit Stages Ratios Nominal torquet Tn Maxiumum efficengy
HKTLH064A NM 2 9 19.5 92%
12 31.5
16 31.5
20 31.5
25 33.5
28 31.5
35 33.5
40 31.5
50 33.5
70 24

Servo Motor Parameters:

Product Attribute Specification
Supply Voltage DC 48V
Rated Power 750W
Flange Size 80*80mm
Rated Torque 2.38Nm
Encoder Absolute value
Rated Current 20A
Rated Speed 3000rpm
Number of Pole Pairs 5 Poles
Brake With Brake
