Customized AGV BLDC Integrated Servo Drive Unit 1050N For Synchronized
Customized AGV BLDC Integrated Servo Drive Unit 1050N For Synchronized
Customized AGV BLDC Integrated Servo Drive Unit 1050N For Synchronized
Customized AGV BLDC Integrated Servo Drive Unit 1050N For Synchronized
Specifications
Brand Name :
HKT-Robot
Model Number :
HKTLH090A-L1 TD80100-SCBNK5
Place of Origin :
China
Certification :
CE
MOQ :
1
Price :
Negotiable
Packaging Details :
Carton
Delivery Time :
1-4weeks
Payment Terms :
T/T
Encoder :
Incremental
Max Radial Force :
1050N
Max Axial Force :
850N
Flange :
80*80mm
Brake :
No Brake
Rated Power :
1000W
Description

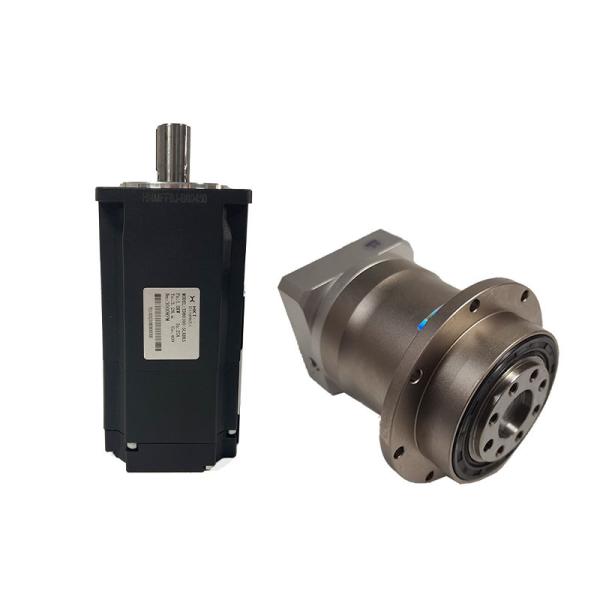

1000W AGV Drive Unit Max Radial Force 1050N for Optimal Performance

Product Description:

AGV Drive Unit is a powerful and reliable drive unit designed for AGV applications. It features a 1000W rated power, providing a maximum axial force of 850N and a maximum radial force of 1050N. It also comes with no brake, making it easy to control and maneuver. Additionally, it has an Incremental encoder for accurate positioning and synchronization between the gearbox and wheel motors. This drive unit is an ideal choice for AGV applications, allowing for precise operation and reliable performance.

Features:

1.Longevity: These are purposefully crafted to withstand the rigors of continuous usage in industrial settings, ensuring an extended lifespan of operation.

2.Modular Structure: Utilizing a modular approach that allows for versatile configuration and the potential for future expansion.

3.User-Focused: Created with a strong emphasis on meeting user requirements, ensuring ease of use and user-friendliness.

4.Integration with Control Systems: These precision reducers are intentionally designed to smoothly incorporate with AGV control systems, facilitating seamless communication and precise synchronization between the motor, reducer, and the vehicle's navigation system.

Planetary Gearbox Parameters:

Model

Unit

Stages

Ratios

Nominal torquet Tn

Maxiumum efficengy

HKTLH090A

NM

1

3

63

94%

4

90

5

100

7

68

10

43


Servo Motor Parameters:

Parameter Value
Supply Voltage DC 48V
Encoder Incremental
Rated Torque 3.2Nm
Flange Size 80*80mm
Rated Power 1000W
Rated Current 25A
Brake No Brake
Number of Pole Pairs 5 Poles
Rated Speed 3000rpm
