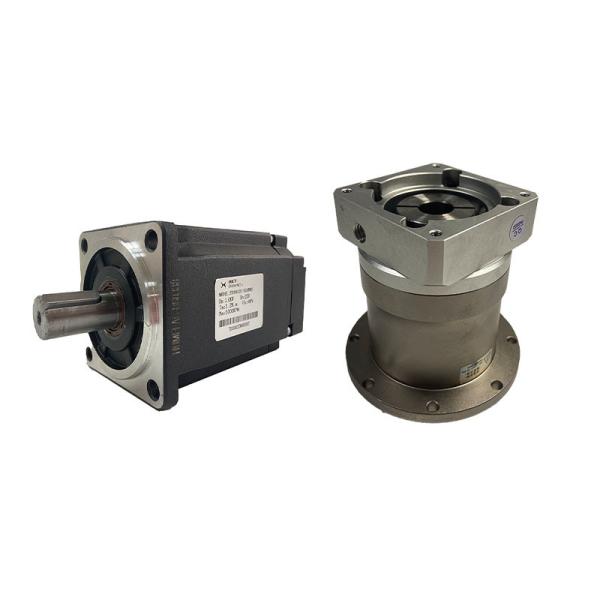

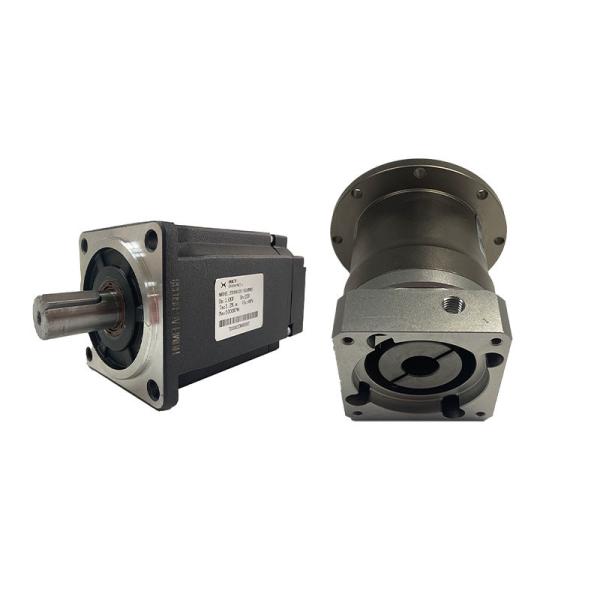

High Torque AGV Drive Unit Industrial Servo 1000 Watt
High Torque AGV Drive Unit Industrial Servo 1000 Watt
High Torque AGV Drive Unit Industrial Servo 1000 Watt
High Torque AGV Drive Unit Industrial Servo 1000 Watt
Specifications
Brand Name :
HKT-Robot
Model Number :
HKTLH064A-L2 TD80100-SCABK5
Place of Origin :
China
Certification :
CE
MOQ :
1
Price :
Negotiable
Packaging Details :
Carton
Delivery Time :
1-4weeks
Payment Terms :
T/T
Max Radial Force :
500N
Rated Power :
1000W
Max Axial Force :
390N
Encoder :
Absolute Value
Flange :
80*80mm
Brake :
With Brake
Description

AGV Drive Unit with Rated Power 1000W Motor for Industrial Applications

Product Description:

AGV Drive Unit is a powerful motor drive unit that is ideal for use in AGV (Automated Guided Vehicle) applications. Its flange measures 80*80mm and it features an absolute value encoder for precise motor control. It provides superior motor torque, enabling it to generate maximum radial force of 500N and maximum axial force of 390N even without a brake. Moreover, it is equipped with a motor controller that provides advanced driving and control for AGV applications. With its superior motor torque and efficient motor controller, AGV Drive Unit is an ideal solution for driving and controlling AGV applications.

Features:

1.Swift and Easy Installation: Specially crafted for a rapid and straightforward installation process, which reduces downtime and simplifies maintenance procedures.

2.Maximizing Operational Efficiency: They are fine-tuned to optimize power transmission efficiency, ensuring minimal energy loss during operation, a critical factor for prolonging the battery life of AGVs.

3.Silent Performance: Painstakingly designed for noise-free operation, minimizing disruptions in environments where noise levels must be kept to a minimum.

4.Broad Temperature Range Suitability: Demonstrating effective functionality across a wide range of temperatures, making it suitable for use in various industrial environments with fluctuating climate conditions.

Planetary Gearbox Parameters:

Model

Unit

Stages

Ratios

Nominal torquet Tn

Maxiumum efficengy

HKTLH064A

NM

2

9

19.5

92%

12

31.5

16

31.5

20

31.5

25

33.5

28

31.5

35

33.5

40

31.5

50

33.5

70

24

Servo Motor Parameters:

Product Attribute

Specification

Rated Torque

3.2Nm

Rated Current

25A

Flange Size

80*80mm

Brake

With Brake

Rated Power

1000W

Supply Voltage

DC 48V

Encoder

Absolute Value

Number of Pole Pairs

5 Poles

Rated Speed

3000rpm
