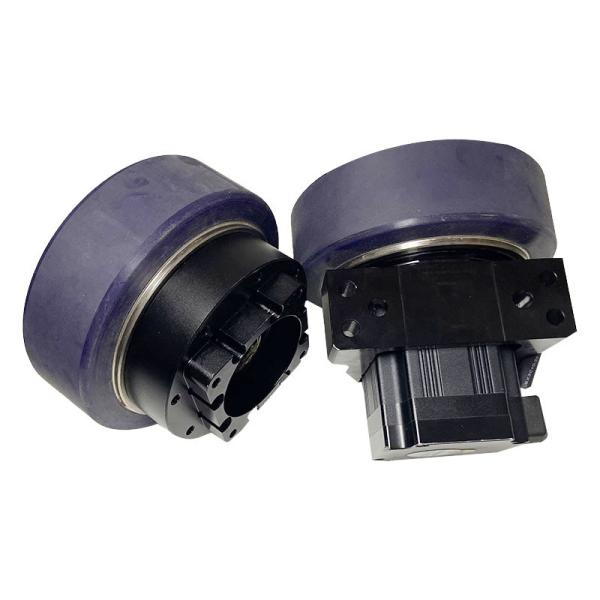

Customizable Steering AGV Drive Wheel HKTZL 150 Series
Customizable Steering AGV Drive Wheel HKTZL 150 Series
Customizable Steering AGV Drive Wheel HKTZL 150 Series
Customizable Steering AGV Drive Wheel HKTZL 150 Series
Customizable Steering AGV Drive Wheel HKTZL 150 Series
Customizable Steering AGV Drive Wheel HKTZL 150 Series
Customizable Steering AGV Drive Wheel HKTZL 150 Series
Customizable Steering AGV Drive Wheel HKTZL 150 Series
Specifications
Brand Name :
HKT-Robot
Model Number :
HKTZL150-400-180
Place of Origin :
China
Certification :
CE
MOQ :
1
Price :
Negotiable
Packaging Details :
Carton
Delivery Time :
1-4weeks
Payment Terms :
T/T
Product Name :
AGV Drive Wheel
Series :
HKTZL 150
Servo Driver :
FL6D1Z1-A00
Polyurethane bearing :
400kg
Rated torque :
1.27Nm
Outside Diameter of Wheel :
180mm
Wheel Width :
45mm
Hub Diameter :
150mm
Description

HKTZL 150 Series AGV Drive Wheel Hub Diameter 150mm Wheel Width 45mm

Product Description:

The AGV Drive Wheel is a reliable and durable drive wheel specifically designed for AGV applications. It features a polyurethane bearing with a load capacity of 400kg, a wheel width of 45mm, a hub diameter of 150mm, and a HKTZL 150 series. This drive wheel is ideal for AGV hub reducer, AGV steering drive wheel, and AGV wheel hub gearbox applications. It is designed to provide high performance, improved accuracy, and long service life.

Features:

1.Low Backlash: Many walking reducers are engineered to have minimal backlash, which is the amount of play or clearance in the gears. Low backlash ensures that the motion is highly accurate and responsive.

2.Customizable Ratios: Depending on the specific application, walking reducers may come with customizable gear ratios to adapt to different speed and torque requirements.

3.Mounting Options: They often feature various mounting options, making it easier to integrate them into different robot or machinery designs.

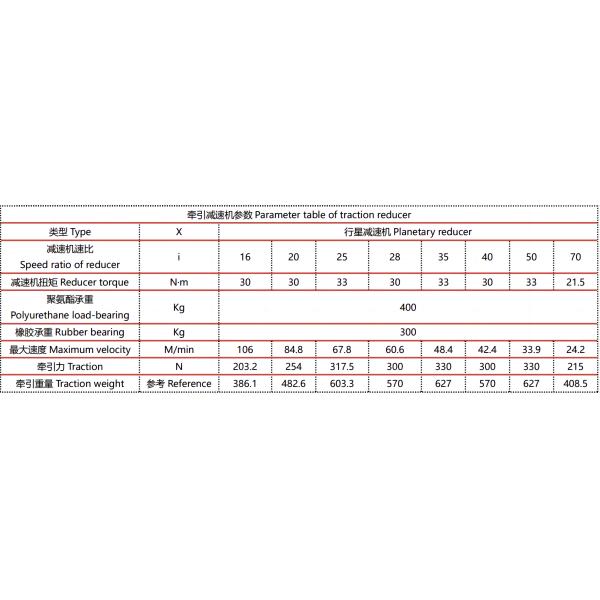

Technical Parameters:

AGV Drive Wheel:

Parameter Specification
Model Number HKTZL150-400-180
Series HKTZL 150
Wheel Width 45mm
Outside Diameter of Wheel 180mm
Hub Diameter 150mm
Rated torque 1.27Nm
Servo Driver FL6D1Z1-A00
Polyurethane bearing 400kg

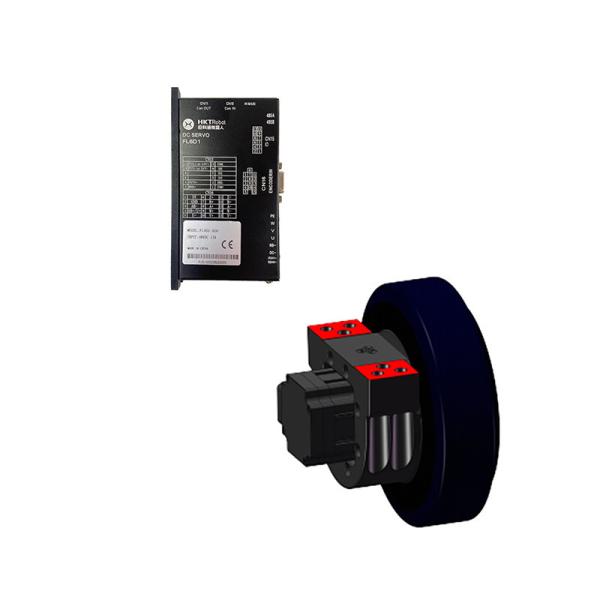

Low Voltage Servo Drive:

Parameter Specification
Model Number FL6D1Z1-A00
Supply Voltage 24-60VDC
Power 400W
Rated Current 11A
Peak Current 33A
Encoder Absolute and Incremental Encoder
Communication Protocol CANopen Modbus/RS485
Installation Aperture 5mm
Overall Dimensions 147*77*30mm
Weights 350g

Customizable Steering AGV Drive Wheel HKTZL 150 Series

Customizable Steering AGV Drive Wheel HKTZL 150 Series

Customizable Steering AGV Drive Wheel HKTZL 150 Series

Customizable Steering AGV Drive Wheel HKTZL 150 Series
