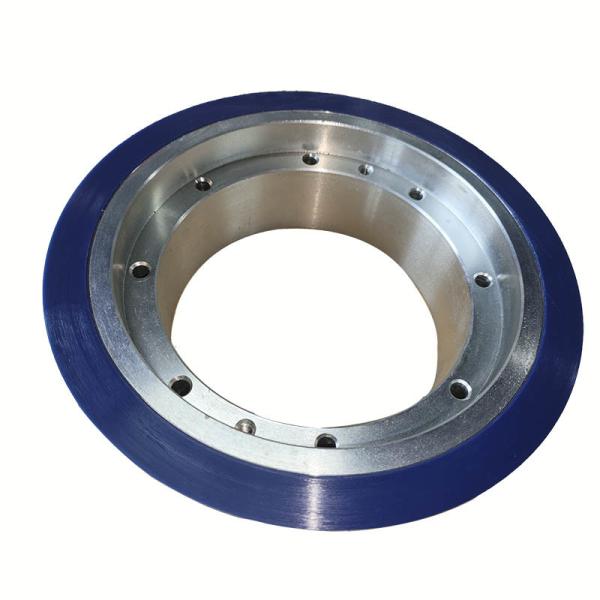

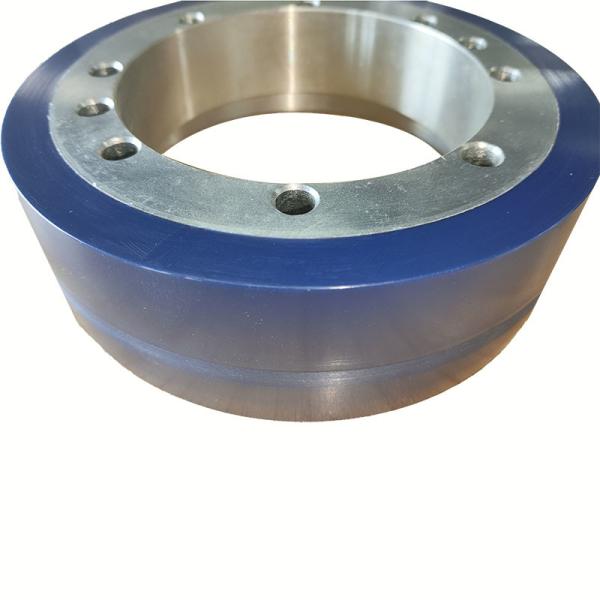

Polyurethane AGV Drive Wheels with 160mm Diameter and 450kg Load

Product Description:

AGV wheels can be made from various materials, including rubber, polyurethane, and steel. Rubber wheels provide excellent traction and shock absorption, while polyurethane wheels are known for their durability and resistance to wear. Steel wheels are used in heavy-duty applications and can withstand high loads.

AGV drive wheels are specially designed to provide traction and propulsion to the vehicle. They are typically made from durable materials like rubber or polyurethane and are often equipped with a tread pattern that enhances grip on different surfaces. These wheels are known for their efficiency and reliability, ensuring smooth and precise movement of AGVs.

AGVs are often used for transporting heavy loads within industrial settings. Load-bearing wheels are designed to handle substantial weight while maintaining stability and balance. These wheels are engineered to distribute the load evenly, reducing the risk of damage to the AGV and its cargo.

Features:

1.It has an hardness of 85°Shore A and this gives it great operational comfort, low rolling resistance, low walking noise, superior ground protection, high rebound and units excellent wear resistance, cutting and tearing resistance. Moreover, there is no mark or stain left with the combination to the wheel body.

2.The wheel body can either be made of aluminum alloy or cast iron, and it has a temperature resistance of -25℃ to +70℃, with a short-term high temperature of +90℃.

3.The tread is made with a high-quality polyurethane, which is casted through chemical reaction and has an ester elastomer hardness of 85° Shore A. As a result, it has a low rolling resistance, high wear resistance, cut resistance and tear strength, with no traces and no stains.

The wheel body is die-casted with aluminum alloy and is painted with a silver color.

Technical Parameters:
