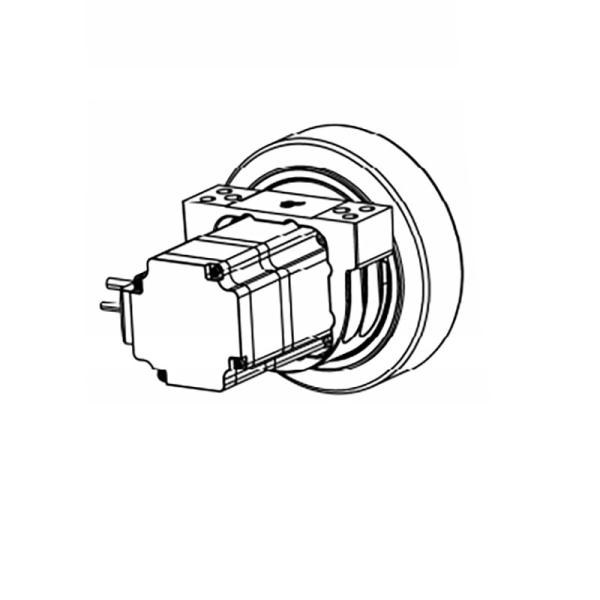

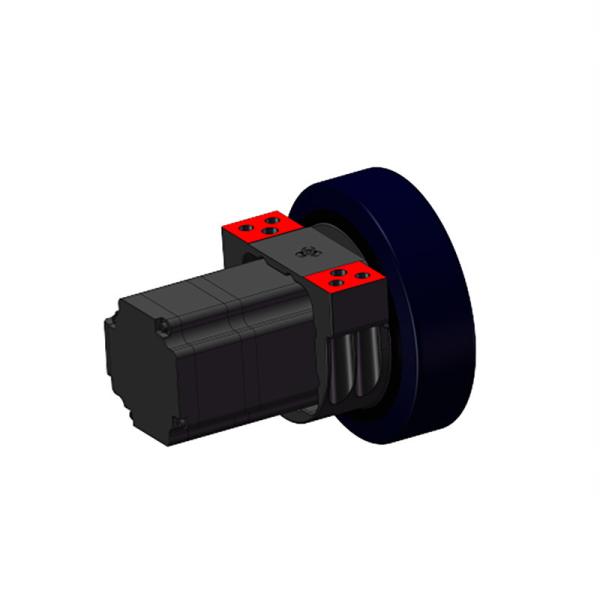

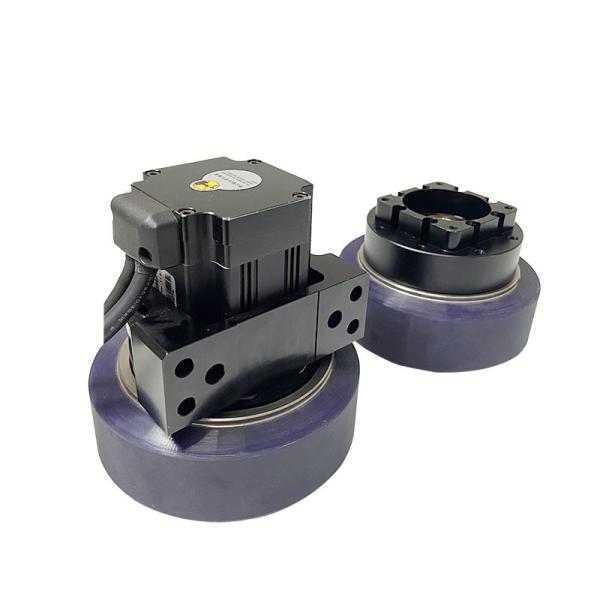

125mm Roboteq AGV Drive Wheel Hub Transmission
125mm Roboteq AGV Drive Wheel Hub Transmission
125mm Roboteq AGV Drive Wheel Hub Transmission
125mm Roboteq AGV Drive Wheel Hub Transmission
125mm Roboteq AGV Drive Wheel Hub Transmission
125mm Roboteq AGV Drive Wheel Hub Transmission
125mm Roboteq AGV Drive Wheel Hub Transmission
125mm Roboteq AGV Drive Wheel Hub Transmission
Specifications
Brand Name :
HKT-Robot
Model Number :
HKTZL125-750-160
Place of Origin :
China
Certification :
CE
MOQ :
1
Price :
Negotiable
Packaging Details :
Carton
Delivery Time :
1-4weeks
Payment Terms :
T/T
Product Name :
AGV Drive Wheel
Series :
HKTZL 125
Servo Driver :
FL6D2Z1-A00
Polyurethane bearing :
350kg
Wheel Width :
45mm
Outside Diameter of Wheel :
160mm
Rated torque :
2.39Nm
Hub Diameter :
125mm
Description

125mm Hub Diameter Hub Transmission for AGV Efficient and Long-Lasting

Product Description:

AGV Drive Wheel is an ideal reducer gearbox for AGV applications. It is designed with a servo driver FL6D2Z1-A00, providing a rated torque of 2.39Nm. It consists of a hub transmission for AGV and a wheel hub gearbox with a hub diameter of 125mm and a wheel width of 45mm. It is designed to be compatible with series HKTZL 125. The AGV Drive Wheel is a reliable and robust solution for AGV applications.

Features:

1.Gear Reduction: Walking reducers are designed to provide an impressive amount of gear reduction, transforming high-speed, low-torque input from a motor into low-speed, high-torque output that is great for both leg and wheel movement.

2.Durability: They are typically constructed from robust materials to withstand the demands of industrial and outdoor environments. This includes resistance to dust, moisture, and temperature variations.

3.Compact Design: Moreover, walking reducers are usually planned to be very compact and lightweight, which makes it possible to incorporate them into numerous robotic and machinery systems.

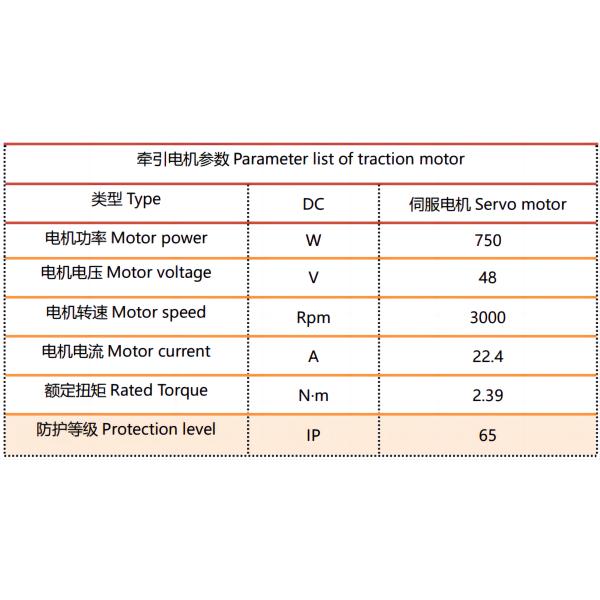

Technical Parameters:

AGV Drive Wheel:

Parameter Specification
Model Number HKTZL125-750-160
Outside Diameter of Wheel 160mm
Servo Driver FL6D2Z1-A00
Hub Diameter 125mm
Wheel Width 45mm
Rated torque 2.39Nm
Polyurethane bearing 350kg
Series HKTZL 125

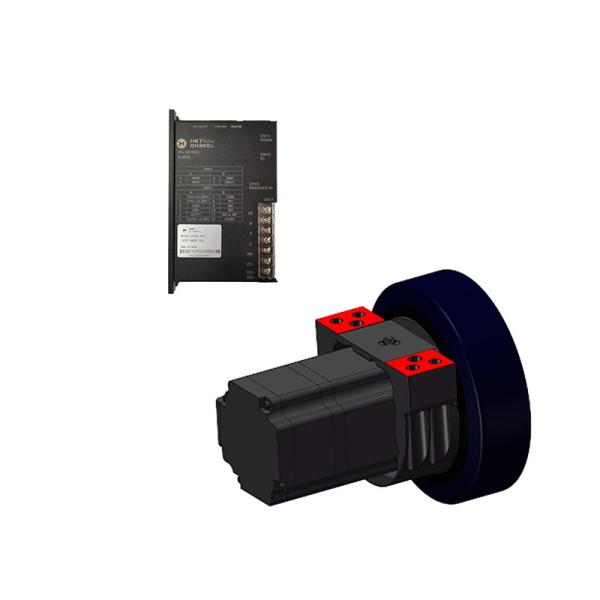

Low Voltage Servo Drive:

Parameter Specification
Model Number FL6D2Z1-A00
Peak Current 33A
Rated Current 11A
Power 1000W
Communication Protocol CANopen Modbus/RS485
Encoder Absolute and Incremental Encoder
Supply Voltage 24-60VDC
Overall Dimensions 169*100*30mm
Installation Aperture 5mm
Weights 600g

125mm Roboteq AGV Drive Wheel Hub Transmission

125mm Roboteq AGV Drive Wheel Hub Transmission

125mm Roboteq AGV Drive Wheel Hub Transmission

125mm Roboteq AGV Drive Wheel Hub Transmission
