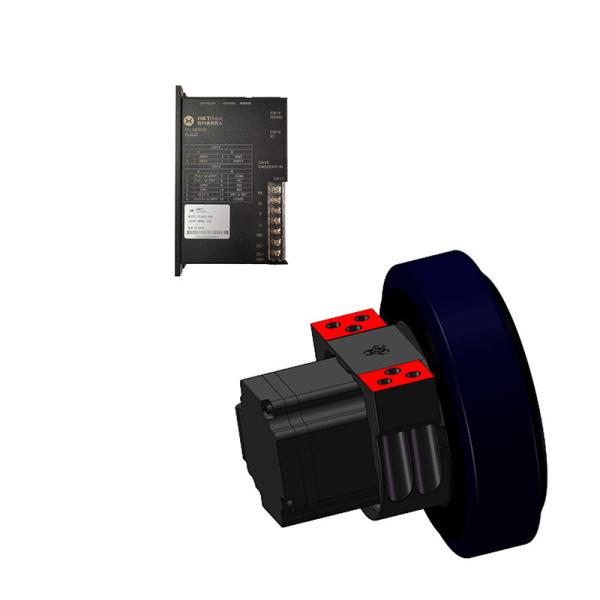

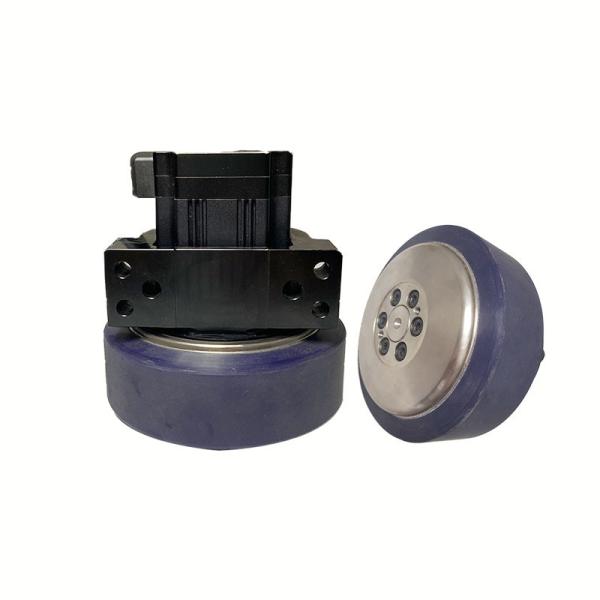

400kg AGV Casters Drive Wheel With Polyurethane Bearing
400kg AGV Casters Drive Wheel With Polyurethane Bearing
400kg AGV Casters Drive Wheel With Polyurethane Bearing
400kg AGV Casters Drive Wheel With Polyurethane Bearing
400kg AGV Casters Drive Wheel With Polyurethane Bearing
400kg AGV Casters Drive Wheel With Polyurethane Bearing
400kg AGV Casters Drive Wheel With Polyurethane Bearing
400kg AGV Casters Drive Wheel With Polyurethane Bearing
Specifications
Brand Name :
HKT-Robot
Model Number :
HKTZL150-750-180
Place of Origin :
China
Certification :
CE
MOQ :
1
Price :
Negotiable
Packaging Details :
Carton
Delivery Time :
1-4weeks
Payment Terms :
T/T
Product Name :
AGV Drive Wheel
Series :
HKTZL 150
Servo Driver :
FL6D2Z1-A00
Polyurethane bearing :
400kg
Hub Diameter :
150mm
Outside Diameter of Wheel :
180mm
Wheel Width :
45mm
Rated torque :
2.39Nm
Description

HKTZL 150 Series AGV Drive Wheel with Polyurethane bearing 400kg within

Product Description:

The AGV Drive Wheel is an ideal choice for modern AGV applications. It is equipped with a FL6D2Z1-A00 servo driver, a 45mm wheel width, a HKTZL 150 series, a 150mm hub diameter, and a rated torque of 2.39Nm. The AGV Drive Wheel is a reducer gearbox that provides superior performance and efficiency for AGV applications. It is designed to provide an optimal combination of power and torque for applications such as AGV hub reducer and AGV wheel hub gearbox. Its special design allows it to offer superior performance and reliability while providing a quiet, low-noise operation. It is also designed to be easy to install and maintain, making it the perfect choice for modern AGV applications.

Features:

1.High Efficiency: To conserve energy and minimize heat generation, walking reducers are often designed to be highly efficient in transferring power from the motor to the output.

2.Maintenance-Friendly: Manufacturers may design these devices to be relatively easy to maintain, with accessible lubrication points and the ability to replace worn parts.

3.Safety Features: In some cases, walking reducers may include safety features such as overload protection or emergency stop mechanisms to prevent damage in case of excessive loads or unexpected situations.

Technical Parameters:

AGV Drive Wheel:

Parameter Specification
Model Number HKTZL150-750-180
Wheel Width 45mm
Polyurethane Bearing 400kg
Hub Diameter 150mm
Rated Torque 2.39Nm
Outside Diameter of Wheel 180mm
Servo Driver FL6D2Z1-A00
Series HKTZL 150

Low Voltage Servo Drive:

Parameter Specification
Model Number FL6D2Z1-A00
Peak Current 33A
Rated Current 11A
Power 1000W
Communication Protocol CANopen Modbus/RS485
Encoder Absolute and Incremental Encoder
Supply Voltage 24-60VDC
Overall Dimensions 169*100*30mm
Installation Aperture 5mm
Weights 600g
