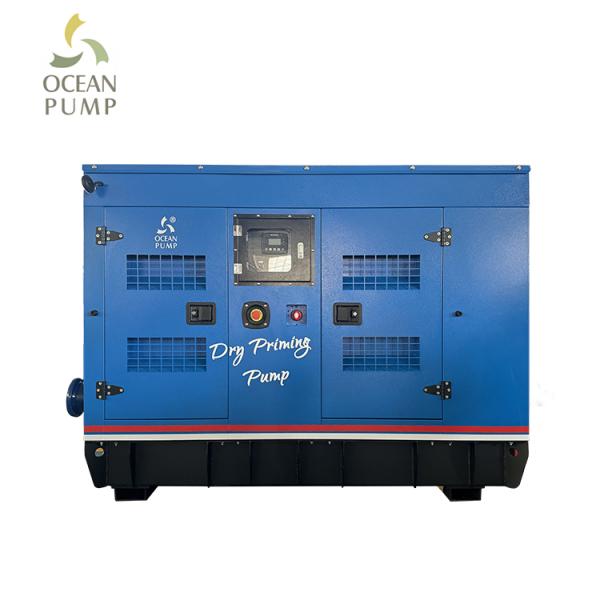

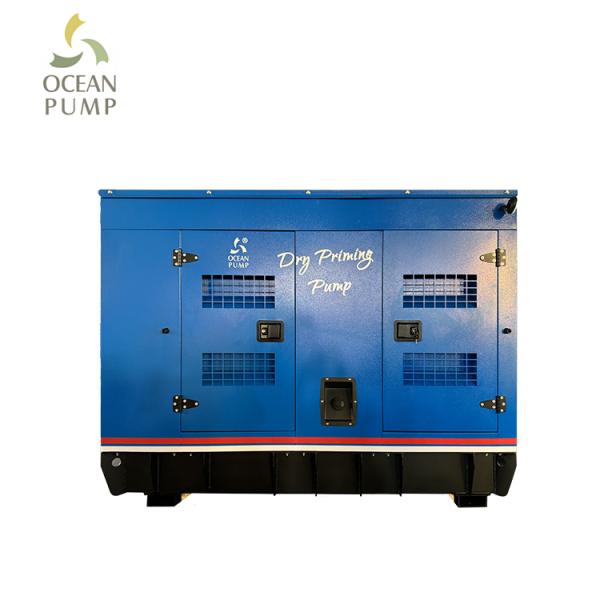

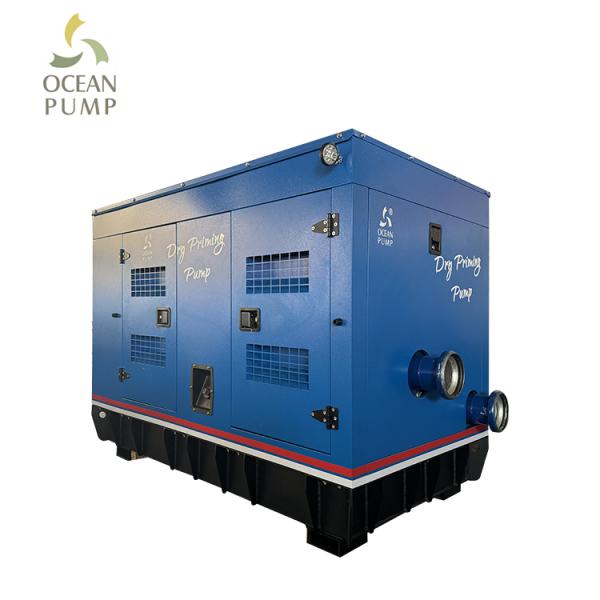

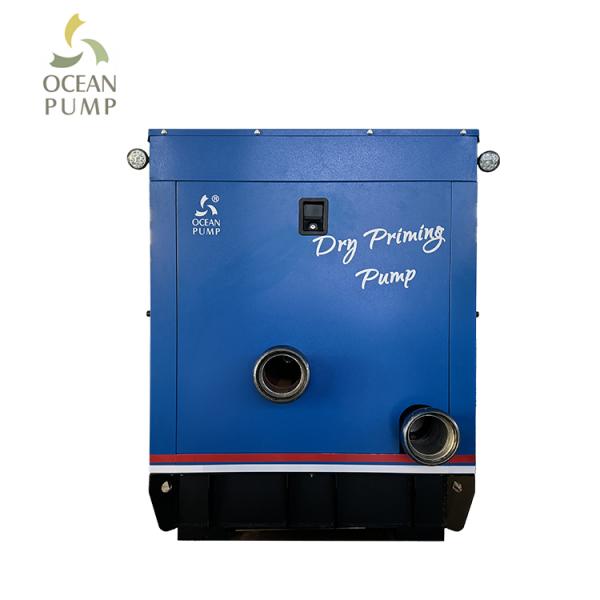

6 Inch Silent Type DRY Priming Pump Diesel Engine Vacuum Assisted Priming Pump
6 Inch Silent Type DRY Priming Pump Diesel Engine Vacuum Assisted Priming Pump
6 Inch Silent Type DRY Priming Pump Diesel Engine Vacuum Assisted Priming Pump
6 Inch Silent Type DRY Priming Pump Diesel Engine Vacuum Assisted Priming Pump
6 Inch Silent Type DRY Priming Pump Diesel Engine Vacuum Assisted Priming Pump
6 Inch Silent Type DRY Priming Pump Diesel Engine Vacuum Assisted Priming Pump
6 Inch Silent Type DRY Priming Pump Diesel Engine Vacuum Assisted Priming Pump
6 Inch Silent Type DRY Priming Pump Diesel Engine Vacuum Assisted Priming Pump
6 Inch Silent Type DRY Priming Pump Diesel Engine Vacuum Assisted Priming Pump
6 Inch Silent Type DRY Priming Pump Diesel Engine Vacuum Assisted Priming Pump
6 Inch Silent Type DRY Priming Pump Diesel Engine Vacuum Assisted Priming Pump
6 Inch Silent Type DRY Priming Pump Diesel Engine Vacuum Assisted Priming Pump
6 Inch Silent Type DRY Priming Pump Diesel Engine Vacuum Assisted Priming Pump
6 Inch Silent Type DRY Priming Pump Diesel Engine Vacuum Assisted Priming Pump
Specifications
warranty :
1 year
customized support :
OEM, ODM, OBM
Brand Name :
OCEANPUMP
Model Number :
GXD66S12QJWP2.3D40E200
Place of Origin :
Zhejiang, China
application :
Irrigation and Agriculture
power source :
Diesel Engine
pressure :
High Pressure
structure :
Single-stage Pump
outlet size :
6 inch
voltage :
240V / customized
power :
36kw
Application :
Priming Pump
Theory :
Vacuum Assisted Priming Pump
Material :
Stainless Steel;cast iron
Motor :
According to the customer to choose
Feature :
Maintenance
Type :
Horizontal Centrifugal
Impeller type :
Open
Inlet/Outlet :
150mm(6"))/150mm(6")
Description
Products Description
6 Inch Silent Type DRY Priming Pump Diesel Engine Vacuum Assisted Priming Pump
DRY Priming Pump (Silent Type)
Inlet Outlet Caliber
1 50MM(6")

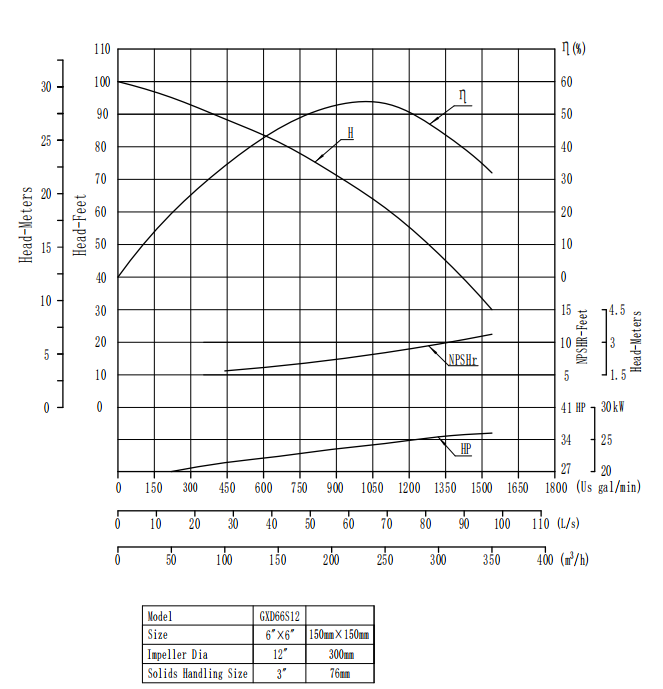

Max Flow
350m³/H(1541GPM)
Max Head
30M(100FT)
Speed
1500R/MIN
Pump Cover Before Import
65-45-12
Pump
65-45-12
Front Cover Plate Of Impeller
65-45-12
Impeller
65-45-12
Rear Pump Cover
65-45-12
Rear Cover Plate
65-45-12
Shaft
S42000
Bearing Housing
NO.35
Drive End Bearing Cover
NO.35
Non Drive End Bearing Cover
NO.35
Mechanical Seal
Double sealed alloy machine seal
6 Inch Silent Type DRY Priming Pump Diesel Engine Vacuum Assisted Priming Pump
6 Inch Silent Type DRY Priming Pump Diesel Engine Vacuum Assisted Priming Pump
Engine Data
Diesel Engine
WP2.3D40E200
Speed(R/Min)
1500
Prp(Kw)
36
Esp(Kw)
40
N°Of Cylinders/Valves
4/8
Borexstroke(Mm)
89x92
Displagement(L)
2.3
Fuel System
Mechanical Pump
Aspiration
Turbocharged
Emission Standard
NON
6 Inch Silent Type DRY Priming Pump Diesel Engine Vacuum Assisted Priming Pump
6 Inch Silent Type DRY Priming Pump Diesel Engine Vacuum Assisted Priming Pump
6 Inch Silent Type DRY Priming Pump Diesel Engine Vacuum Assisted Priming Pump
6 Inch Silent Type DRY Priming Pump Diesel Engine Vacuum Assisted Priming Pump
Our Service
6 Inch Silent Type DRY Priming Pump Diesel Engine Vacuum Assisted Priming Pump

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

6 Inch Silent Type DRY Priming Pump Diesel Engine Vacuum Assisted Priming Pump

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Application Scenarios
6 Inch Silent Type DRY Priming Pump Diesel Engine Vacuum Assisted Priming Pump
Product classification
6 Inch Silent Type DRY Priming Pump Diesel Engine Vacuum Assisted Priming Pump
6 Inch Silent Type DRY Priming Pump Diesel Engine Vacuum Assisted Priming Pump
Company Profile
6 Inch Silent Type DRY Priming Pump Diesel Engine Vacuum Assisted Priming Pump
Exhibition
6 Inch Silent Type DRY Priming Pump Diesel Engine Vacuum Assisted Priming Pump
Packing and transportation
6 Inch Silent Type DRY Priming Pump Diesel Engine Vacuum Assisted Priming Pump
FAQ
6 Inch Silent Type DRY Priming Pump Diesel Engine Vacuum Assisted Priming Pump
1. Who Are We? We are based in Zhejiang, China, start from 2015,sell to Domestic Market(70.00%),North America(8.00%),South America(5.00%),Oceania(5.00%),Mid East(5.00%),Southeast Asia(3.00%),Africa(2.00%),South Asia(2.00%). There are total about 51-100 people in our office. 2. How Can We Guarantee Quality? Always a pre-production sample before mass production; Always final Inspection before shipment; 3.What Can You Buy From Us? Diesel Engine Water Pump,Submersible Sewage Pump,Gear Pumps,Chemical Pump,Self Priming Pump 4. Why Should You Buy From Us Not From Other Suppliers? Zhejiang Ocean Pump Co., Ltd supply pump widely which used in chemical, petroleum, pharmaceutical, electroplating, environmental protection, printing and dyeing, food and other industries. The company has a professional technical team, R & D. 5. What Services Can We Provide?
Accepted Delivery Terms: FOB,CIF,Express Delivery； Accepted Payment Currency:USD,EUR,CNY; Accepted Payment Type: T/T,L/C; Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
