XDEM 35KN Tractor For QYCD35-WXH HELI Tow Tractor For Aircraft Towing
XDEM 35KN Tractor For QYCD35-WXH HELI Tow Tractor For Aircraft Towing
XDEM 35KN Tractor For QYCD35-WXH HELI Tow Tractor For Aircraft Towing
XDEM 35KN Tractor For QYCD35-WXH HELI Tow Tractor For Aircraft Towing
XDEM 35KN Tractor For QYCD35-WXH HELI Tow Tractor For Aircraft Towing
XDEM 35KN Tractor For QYCD35-WXH HELI Tow Tractor For Aircraft Towing
XDEM 35KN Tractor For QYCD35-WXH HELI Tow Tractor For Aircraft Towing
XDEM 35KN Tractor For QYCD35-WXH HELI Tow Tractor For Aircraft Towing
XDEM 35KN Tractor For QYCD35-WXH HELI Tow Tractor For Aircraft Towing
XDEM 35KN Tractor For QYCD35-WXH HELI Tow Tractor For Aircraft Towing
Specifications
Brand Name :
HELI
Model Number :
QYCD35-WXH
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
USD15000/set
Supply Ability :
100 sets per month
Delivery Time :
30 working days
Packaging Details :
Nude packing
Condition :
New
Horsepower :
< 150hp
Emission Standard :
EURO 5
Engine Capacity :
4 - 6L
Drive Wheel :
4WD
Gross Vehicle Weight :
5780 kg
Description
Product Description

Suspension system
The tractor adopt leaf spring suspension at front and rear axle which are made by professional auto parts manufacturers.Further more, the shock absorber is assembled on the front axle, which makes the tractor has favorable stability.

Hydraulic system
The tractor assembled with HELI homemade integrated gear pump. The pump integrated monostable shunt valve, thus gear pump constant flow output, simple pipeline and few fault points is achieved,and reliability of hydraulic system is improved.
Enlarged hydraulic oil tank ensures working and cooling requirement. The hydraulic oil temperature in pipelineS90°C.

Cab
The fully framed cab has enough strength. What is more,the cab is wide and has good view from where omnibearing observing can be achieved.
The front, rear, left and right windscreen of the cab are all safety glass, and the front glass is equipped with two-stage multi-speed control wiper.


Operation stick& pin component
The tractor adopts traction pin mechanism with automatic unhook and automatic guide function, the traction pin is assembled in cab, the operation is easy and efficient. Self lock function of traction pin mechanism effectively avoids trailer hook suddenly off
caused by vehicle jolt during travelling or mis-operation, improves travelling safety.

Parameter

Unit QYCD35-WXH QYCD45-WXH QYCD50-WXH
Max. drawbar. pull KN 35 45 50
Max. travel speed(without load) km/h 24 23 23
Grade ability(without load) % 30 30 30
Min. turning radius mm 4100 4100 4100
Total weight kg 5740 6810 7600
Engine model CA4DF3-13GG3U CA4DF3-13GG3U CA4DF3-13GG3U
Rated output kw/rpm 96/2200 96/2200 96/2200
Max. output N.m/rpm 500/1500~1700 500/1500~1700 500/1500~1700
Fuel tank capacity L 100 100 100
External dimensions mm 3775*1995*2350 3775*1995*2350 3775*1995*2350
Wheel base mm 2000 2000 2000

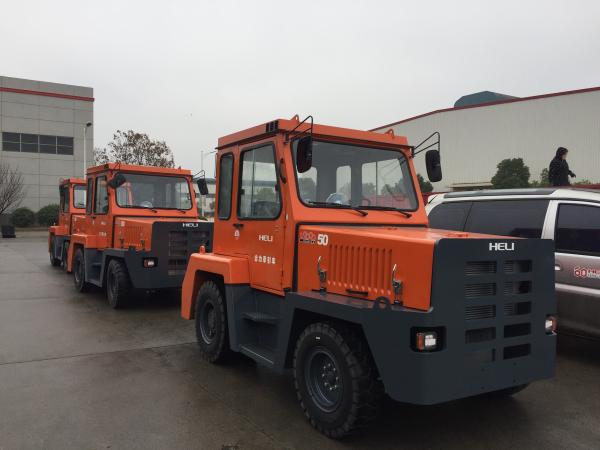

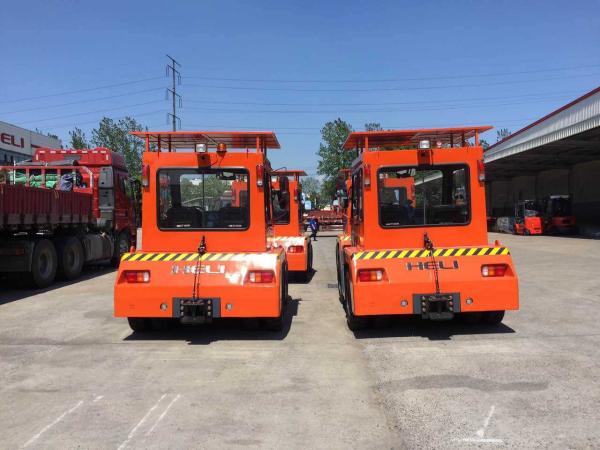

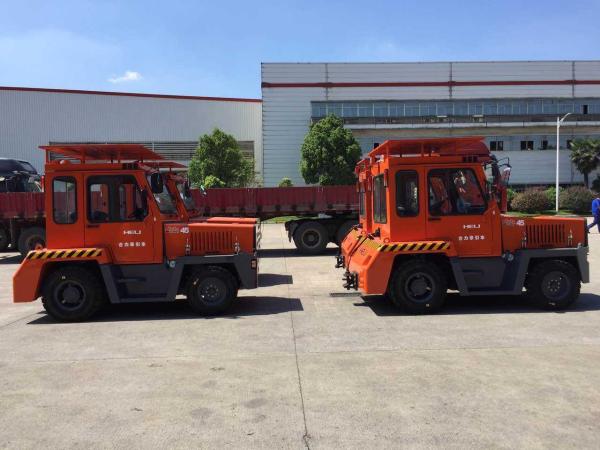

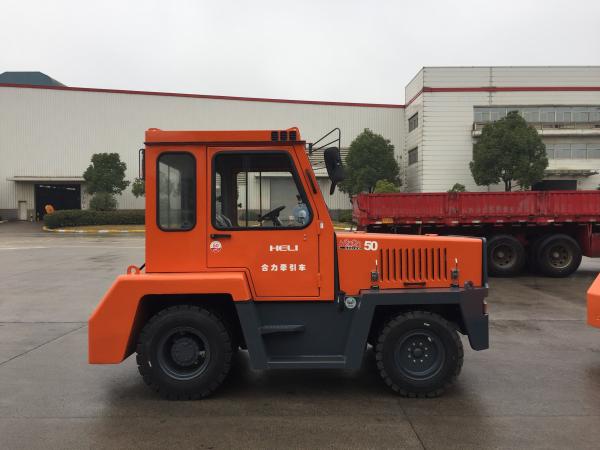

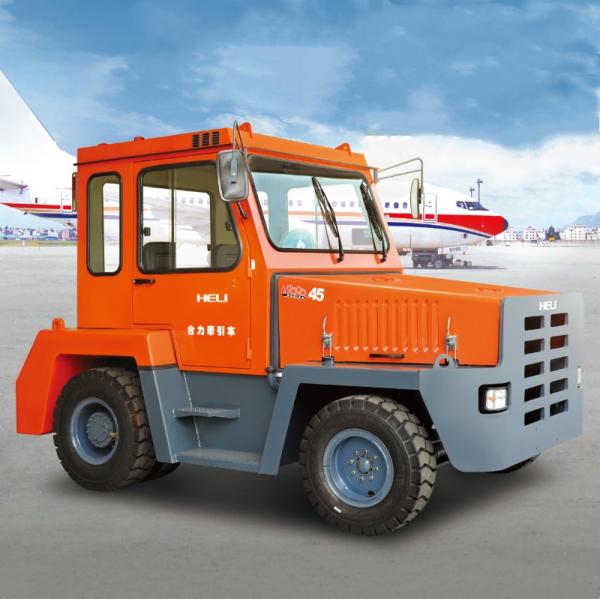

Product show
